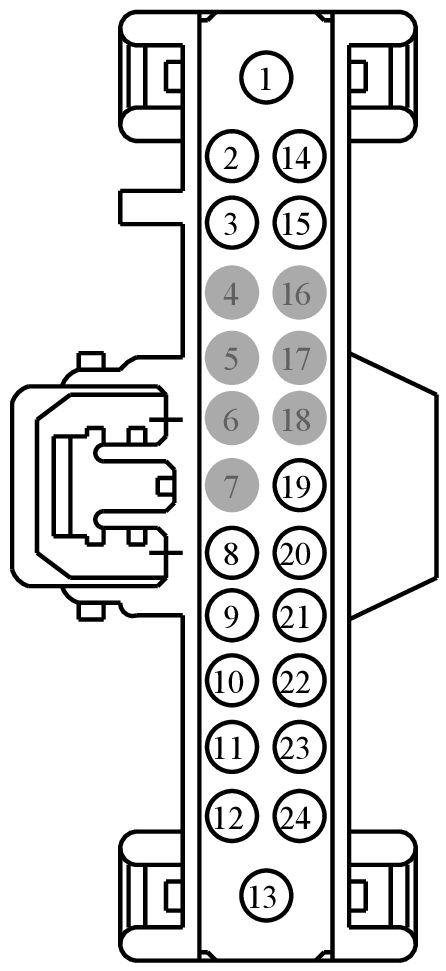

Connector End View C240A - AUDIO CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO CONTROL MODULE (ACM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA	DU2Z-14474-EA	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP33 (RD)	1.0	FUSE - 33 OR CIRCUIT BREAKER	97BG-14474-BBA
2	CME13 (YE-OG)	0.50	CTRL MOD. - POWER ANTENNA MOTOR	8U5T-14474-BB
3	CDC35 (BU-WH)	0.50	SWITCH - IGNITION # START	8U5T-14474-BB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	RME06 (GY-YE)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	without THX	8U5T-14474-BB
8	VMEA6 (YE-BU)	0.50	CTRL MOD. - ACTIVE NOISE CANCELLATION # RIGHT FRONT ANC -	THX	8U5T-14474-BB
9	RME09 (BN-YE)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -	without THX	8U5T-14474-BB
9	RME79 (BN-VT)	0.50	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE -	THX	8U5T-14474-BB
10	RME07 (WH-BN)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -	without THX	8U5T-14474-BB
10	RME17 (WH-BN)	0.50	CTRL MOD. - AUDIO HEAD UNIT # LEFT FRONT LINE LEVEL -	THX	8U5T-14474-BB
11	RME10 (WH-OG)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -	without THX	8U5T-14474-BB
11	RME18 (YE)	0.50	CTRL MOD. - AUDIO HEAD UNIT # RIGHT FRONT LINE LEVEL -	THX	8U5T-14474-BB
12	RME12 (BN-BU)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -	without THX	8U5T-14474-BB
12	RME78 (GY)	0.50	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE -	THX	8U5T-14474-BB
13	GD238 (BK-WH)	1.0	GROUND - COWL SIDE/PILLAR A RIGHT	97BG-14474-BBA
14	VDB29 (GN-BU)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	DU5T-14474-EAB
15	VDB30 (WH-GN)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	DU5T-14474-EAB
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	DME79 (BARE)	0.35	#N/A	8U5T-14474-BB
20	VME06 (GN)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +	without THX	8U5T-14474-BB
20	VMEA5 (GN-VT)	0.50	CTRL MOD. - ACTIVE NOISE CANCELLATION # RIGHT FRONT ANC +	THX	8U5T-14474-BB
21	VME09 (WH-GN)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +	without THX	8U5T-14474-BB
21	VME79 (GY-VT)	0.50	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE +	THX	8U5T-14474-BB
22	VME07 (WH)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +	without THX	8U5T-14474-BB
22	VME17 (WH)	0.50	CTRL MOD. - AUDIO HEAD UNIT # LEFT FRONT LINE LEVEL +	THX	8U5T-14474-BB
23	VME10 (WH-VT)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +	without THX	8U5T-14474-BB
23	VME18 (VT)	0.50	CTRL MOD. - AUDIO HEAD UNIT # RIGHT FRONT LINE LEVEL +	THX	8U5T-14474-BB
24	VME12 (BN-WH)	0.50	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +	without THX	8U5T-14474-BB
24	VME78 (GN-VT)	0.50	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE +	THX	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module - Fuel and Damper Control
• Module - Gateway
• Radio
• Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module Gateway
• Radio
• Test Connector - Diagnostic
