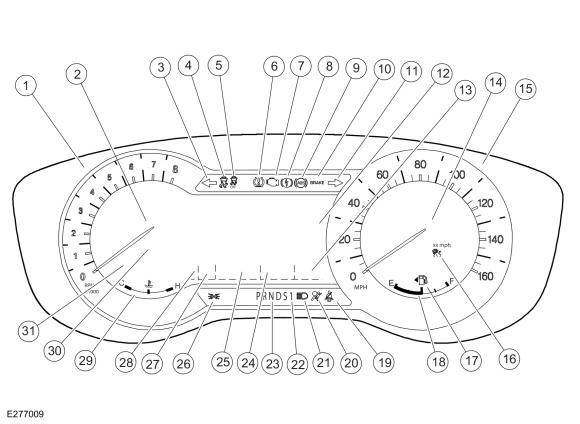

| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Message center display area |
| 3 | LH turn indicator |
| 4 | Stability-traction control indicator (sliding car icon) |
| 5 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 6 | TPMS warning indicator |
| 7 | MIL |
| 8 | Electric park brake fault indicator |
| 9 | ABS warning indicator |
| 10 | Brake warning indicator |
| 11 | RH turn indicator |
| 12 | Infotainment display area |
| 13 | BLIS Charging system Door/hood ajar Low washer fluid |
| 14 | Rotating RTT indicator display area Distance indication and alert Forward collision/adaptive cruise control display area Lane departure display |
| 15 | Speedometer |
| 16 | Cruise control indicator |
| 17 | Low fuel warning indicator |
| 18 | Fuel gauge |
| 19 | Safety belt warning indicator |
| 20 | Airbag warning indicator |
| 21 | High beam indicator |
| 22 | SelectShift® display |
| 23 | PRNDL display |
| 24 | Odometer |
| 25 | Rotating RTT indicator display area Door ajar Engine over-temperature Low oil pressure Powertrain malfunction (wrench) |
| 26 | Lights on indicator |
| 27 | Compass display |
| 28 | Auto hold RTT indicator |
| 29 | Temperature gauge |
| 30 | AWD gauge TPMS display |
| 31 | Auto stop-start RTT indicator |
