Remote Brake Fluid Reservoir: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

1. NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
   NOTE: Removal steps in this procedure may contain installation details.

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

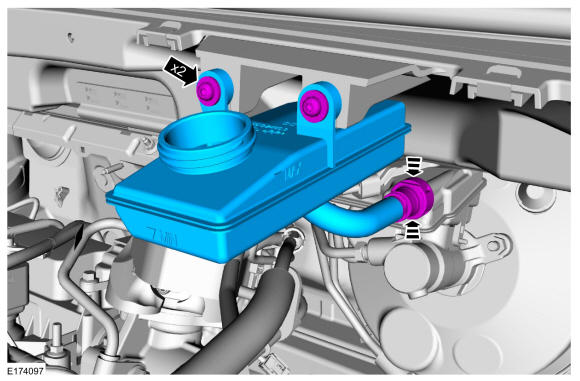

2. Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY
