Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the underbody shield fasteners.
    GFD393954Courtesy of FORD MOTOR COMPANY

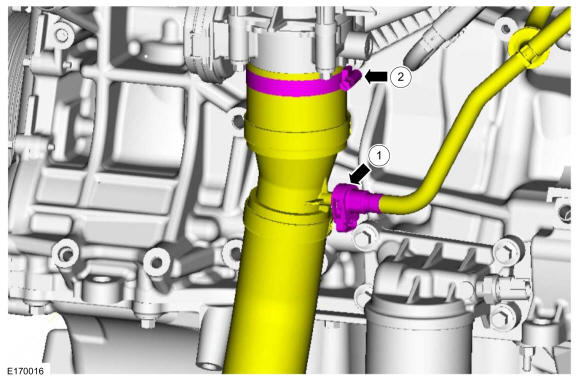

    1. Refer to: Quick Release Coupling 2.3L EcoBoost .
    2. Loosen the clamp.
    GFD394248Courtesy of FORD MOTOR COMPANY

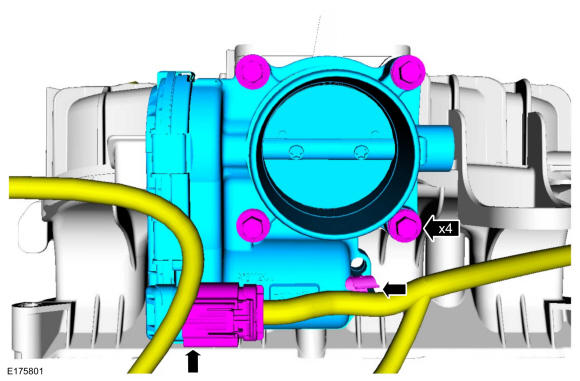

  4. NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.
    GFD394249Courtesy of FORD MOTOR COMPANY

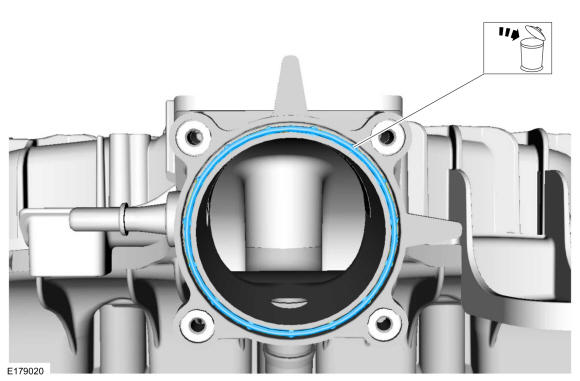

  5. Remove and discard the Throttle Body (TB) gasket.
GFD394250Courtesy of FORD MOTOR COMPANY
