Throttle Body: Installation

WARNING: This page is about a different variant/trim than selected.

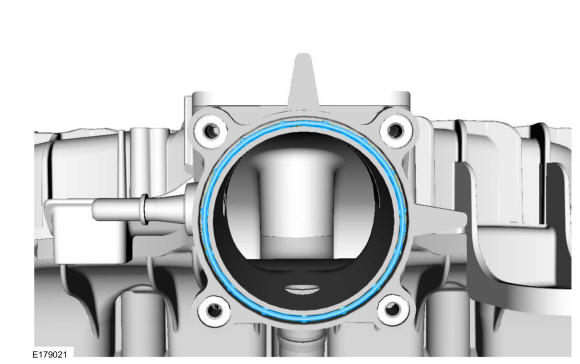

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: Make sure that a new Throttle Body (TB) gasket is installed.

Courtesy of FORD MOTOR COMPANY

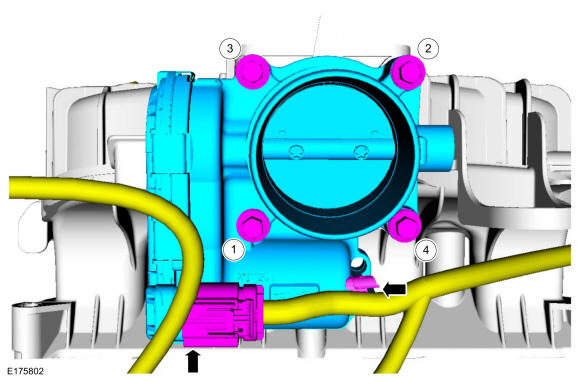

NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

Tighten in the sequence shown:

Torque:

89 lb.in (10 Nm)

Fig 1: Throttle Body Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Refer to: Quick Release Coupling 2.3L EcoBoost .
2. Ensure that the throttle body inlet tube is fully seated against the stops.
  Torque:

  48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY
Install the underbody shield fasteners.

Courtesy of FORD MOTOR COMPANY
