High-Pressure Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.

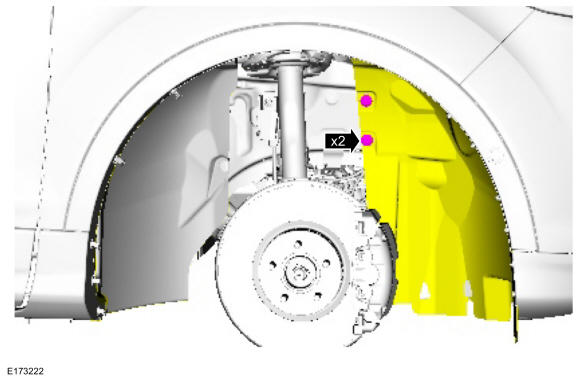

Remove the RH front wheel and tire. Refer to: Wheel and Tire .

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

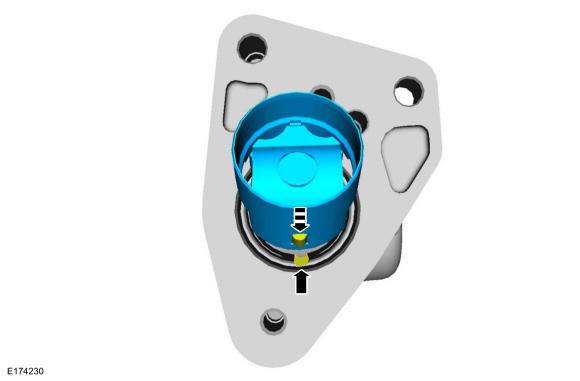

NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

Courtesy of FORD MOTOR COMPANY
Material
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

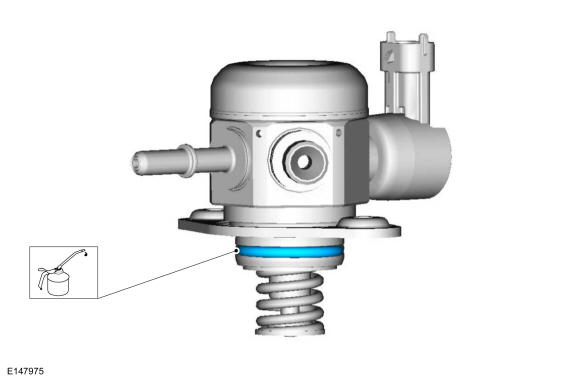

Install a new high-pressure fuel pump O-ring seal.
Material

Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that 2 new high-pressure fuel pump bolts are installed.

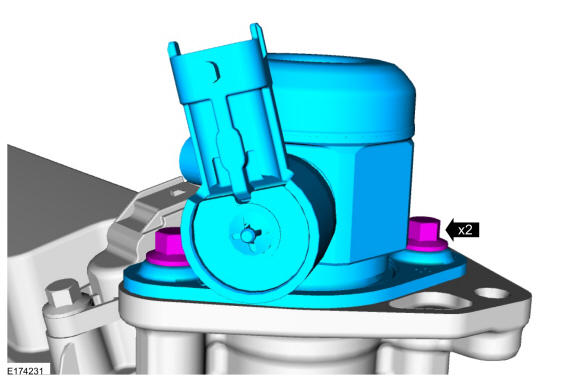

Install the high-pressure fuel pump and loosely install 2 new high-pressure fuel pump bolts, alternately tighten each high-pressure fuel pump bolt one complete revolution until seated. Tighten the 2 high-pressure fuel pump bolts in the following 2 stages.

Torque:

Stage 1: 44 lb.in (5 Nm) Stage 2: 55 deg.

Courtesy of FORD MOTOR COMPANY
Torque:
150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
Install the RH front wheel and tire. Refer to: Wheel and Tire .

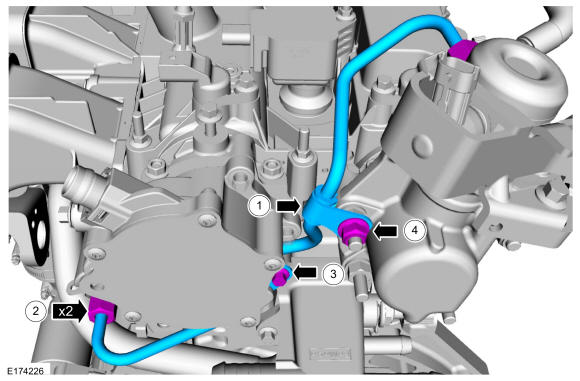

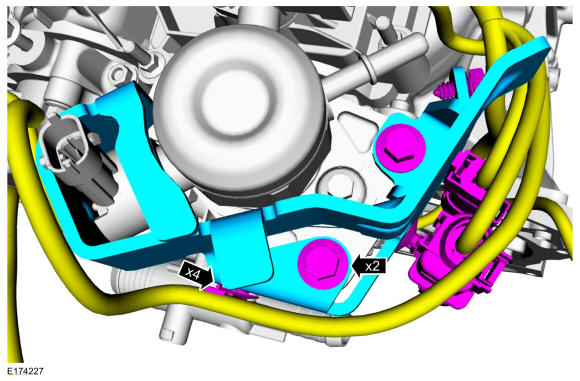

NOTE: Only tighten the 2 high pressure fuel tube flare nuts finger tight at this stage.

NOTE: Only tighten the high pressure fuel tube bracket bolt and nut finger tight at this stage.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

Courtesy of FORD MOTOR COMPANY

Torque:

Stage 1: 62 lb.in (7 Nm) Stage 2: 133 lb.in (15 Nm) Stage 3: 30 deg.

Courtesy of FORD MOTOR COMPANY

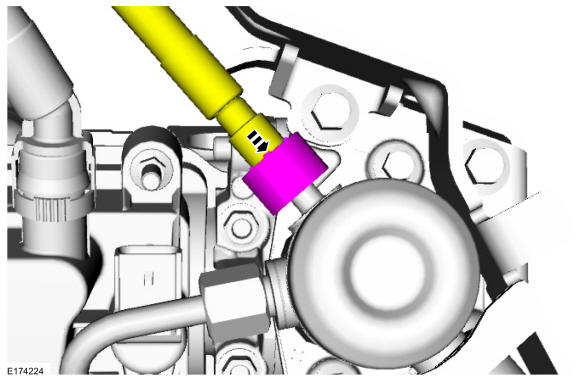

Refer to: Quick Release Coupling 2.3L EcoBoost .

Courtesy of FORD MOTOR COMPANY

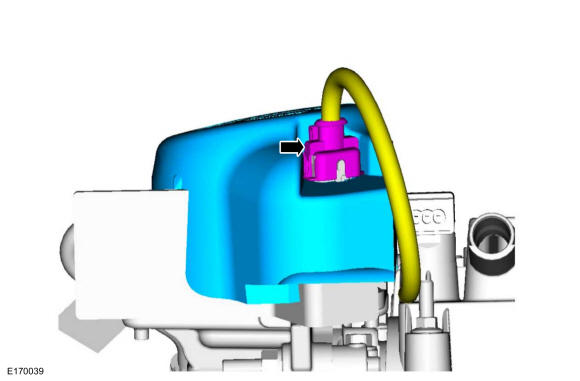

NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.3L EcoBoost .
Reconnect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release 2.3L EcoBoost .
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material

  Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

Courtesy of FORD MOTOR COMPANY
