Fuel Rail: Installation

WARNING: This page is about a different variant/trim than selected.

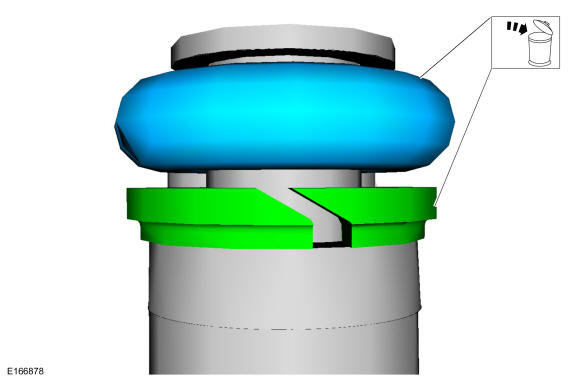

GFD394223Courtesy of FORD MOTOR COMPANY
  1. NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.
    NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
    1. Pull the lower Teflon® seal away from the injector.
    2. Carefully cut and discard the lower fuel injector Teflon® seals.
    GFD394224Courtesy of FORD MOTOR COMPANY
  2. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
    1. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
    2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
      NOTE: Make sure that new lower fuel injector Teflon® seals are installed.
    3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
    GFD394225Courtesy of FORD MOTOR COMPANY
  3. NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.
    NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
    1. Some Teflon® seal massaging with your fingers before the Teflon® seal sizer tool is installed will aid in installing the Teflon® seal sizer tool.
    2. Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.
    3. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
    GFD393831Courtesy of FORD MOTOR COMPANY
    1. NOTE: The large diameter step of the backup ring must go up towards the new O-ring seal. Improperly installed backup rings may cause the fuel system to leak.
    2. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
    GFD393832Courtesy of FORD MOTOR COMPANY
  5. NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
    NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.
    GFD393833Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
    • NOTE: No sudden impact force is allowed.
      NOTE: Make sure that new bolts are installed.

      Press the fuel rail down into the cylinder head injector bores by hand, then install and hand start fuel rail bolts 3 and 4.

    • Release the force before tightening.
    • Install the remaining fuel rail bolts. Tighten all of the fuel rail bolts in the sequence shown and in the following 5 stages.

      Torque:

      Stage 1: Tighten to: : 89 lb.in (10 Nm) Stage 2: Release the torque to: : 0 lb.in (0 Nm) Stage 3: Wait 5s Stage 4: Tighten to: : 124 lb.in (14 Nm) Stage 5: Tighten an additional: : 30 deg.

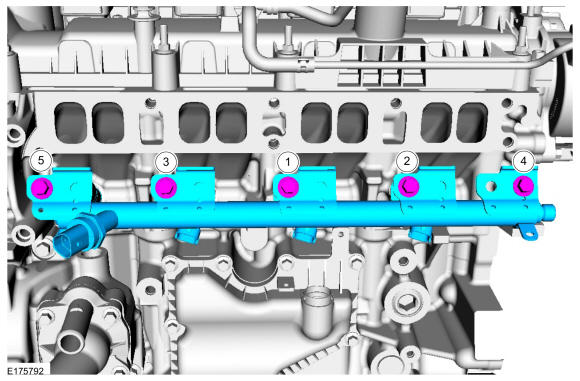

    Fig 1: Fuel Rail Bolts Tightening Sequence
    GFD394247Courtesy of FORD MOTOR COMPANY
    GFD394244Courtesy of FORD MOTOR COMPANY
  7. NOTE: Only tighten the 2 high pressure fuel tube flare nuts finger tight at this stage.
    NOTE: Only tighten the high pressure fuel tube bracket bolt and nut finger tight at this stage.
    1. NOTE: Make sure that a new high pressure fuel tube is installed.
    2. NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.
      G00468730Courtesy of FORD MOTOR COMPANY

      Torque:

      Stage 1: 62 lb.in (7 Nm) Stage 2: 133 lb.in (15 Nm) Stage 3: 30 deg.

    3. Torque:

      89 lb.in (10 Nm)

    4. Torque:

      150 lb.in (17 Nm)

    GFD394242Courtesy of FORD MOTOR COMPANY
  8. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    GFD394233Courtesy of FORD MOTOR COMPANY
  9. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.0L EcoBoost .
  10. Install the intake manifold. Refer to: Intake Manifold 2.3L EcoBoost .
  11. Reconnect the battery. Refer to: Battery Disconnect and Connect .
  12. Pressurize the fuel system. Refer to: Fuel System Pressure Release 2.3L EcoBoost .
