Fuel Pump Driver Module (FPDM): Installation

WARNING: This page is about a different variant/trim than selected.

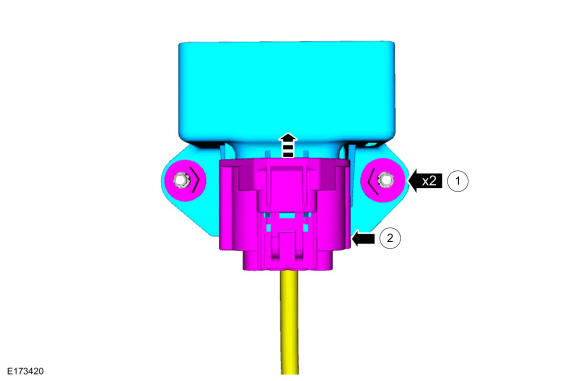

  1. GFD394212Courtesy of FORD MOTOR COMPANY

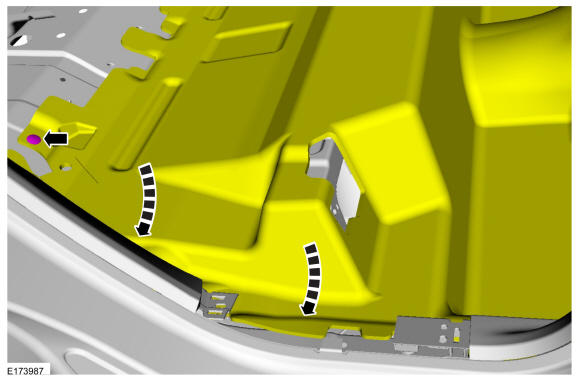

    GFD394213Courtesy of FORD MOTOR COMPANY
    1. Torque:

      44 lb.in (5 Nm)

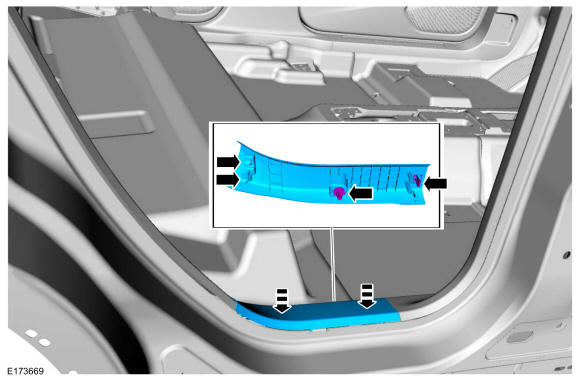

  2. GFD394214Courtesy of FORD MOTOR COMPANY

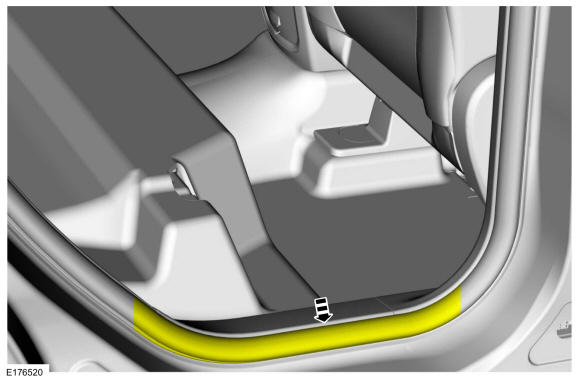

    GFD394215Courtesy of FORD MOTOR COMPANY
  3. Install the rear seat cushion. Refer to: Rear Seat Cushion .
