Section 5 (Engine - 2.3L ECOBOOST (201KW/273PS)): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AE Powertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Steering Wheel Holder
Adjustable Mounting Arm
Oil Drain Equipment
Hose Clamp Remover/Installer
Wooden Block

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

3. Release the fuel system pressure. Refer to: Fuel System Pressure Release 2.3L EcoBoost .
4. Disconnect both battery cables. Refer to: Battery Disconnect and Connect .
5. Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

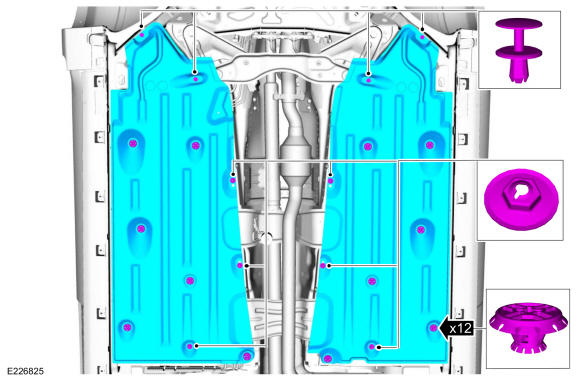

6. Remove the retainers and the underbody shields.

   Courtesy of FORD MOTOR COMPANY

7. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.3L EcoBoost .

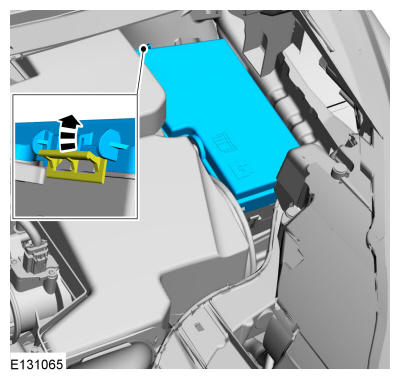

8. Remove the engine compartment fuse box cover.

   Courtesy of FORD MOTOR COMPANY

9. Install the steering wheel holder. Use the General Equipment: Steering Wheel Holder

   Courtesy of FORD MOTOR COMPANY

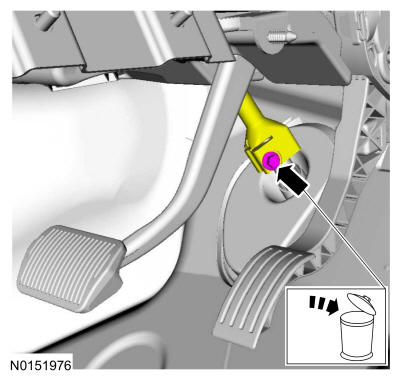

10. Remove and discard the steering column coupling-to-steering gear bolt.

    Courtesy of FORD MOTOR COMPANY

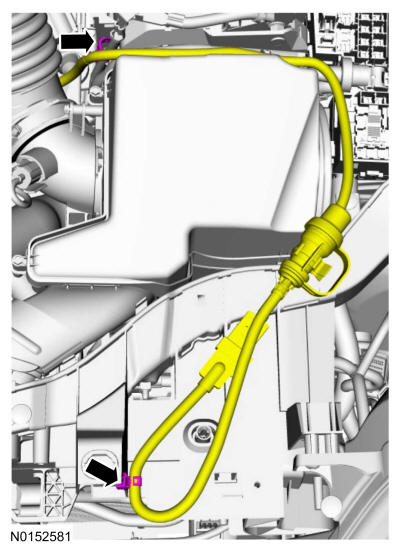

11. If equipped with block heater, detach the retainers.

    Courtesy of FORD MOTOR COMPANY

12. Remove the following items:
    1. Remove the air cleaner. Refer to: Air Cleaner 2.3L EcoBoost .
    2. Remove the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.3L EcoBoost .

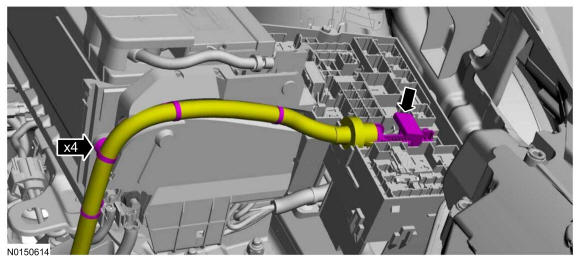

13. Disconnect the main wiring harness from the fuse box and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

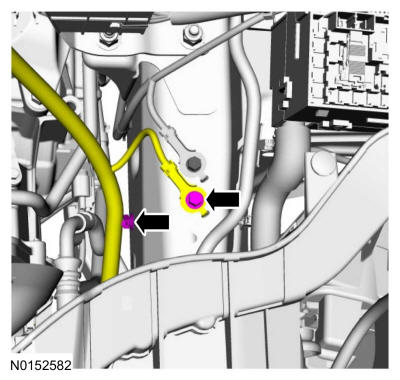

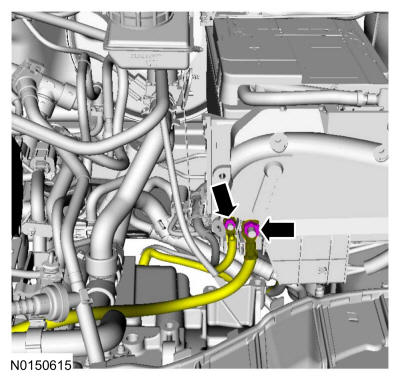

14. Remove the nuts and the battery feed cables.

    Courtesy of FORD MOTOR COMPANY

15. Remove the battery tray. Refer to: Battery Tray .
16. Remove the nut and cable from the positive battery cable.

    Courtesy of FORD MOTOR COMPANY

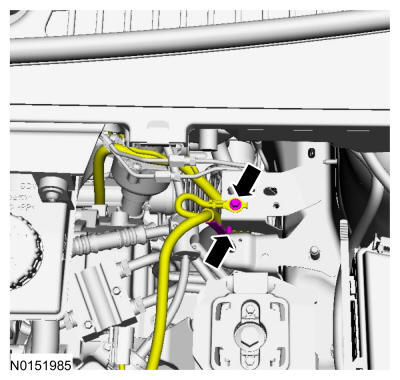

17. Disconnect and detach the wiring harness connector from the air cleaner support bracket.

    Courtesy of FORD MOTOR COMPANY

18. Detach the wiring harness retainer and remove the nuts and the air cleaner support bracket.

    Courtesy of FORD MOTOR COMPANY

19. Remove the bolt and wiring harness retainer for the EPAS wiring harness.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolt and the wiring harness retainer from the LH frame rail.

    Courtesy of FORD MOTOR COMPANY

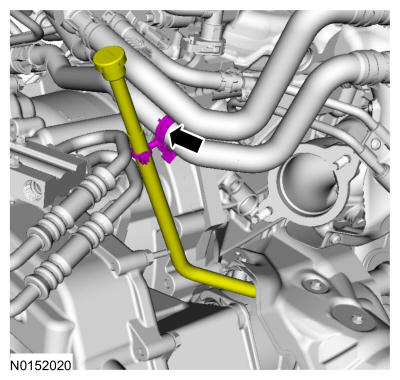

21. Disconnect the brake vacuum pump quick release coupling and retainer.

    Courtesy of FORD MOTOR COMPANY

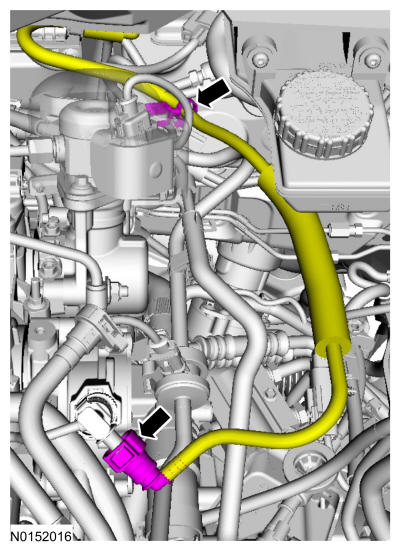

22. • Disconnect the fuel pressure sensor electrical connector.
    • Disconnect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling 2.3L EcoBoost .

    Courtesy of FORD MOTOR COMPANY

    1. Disconnect the fuel hose spring lock coupling. Refer to: Spring Lock Couplings 2.3L EcoBoost .
23. Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

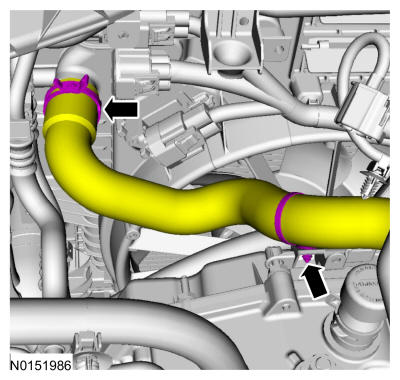

24. Disconnect the upper radiator hose and retainer. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

25. Remove the degas bottle. Refer to: Degas Bottle 2.3L EcoBoost .

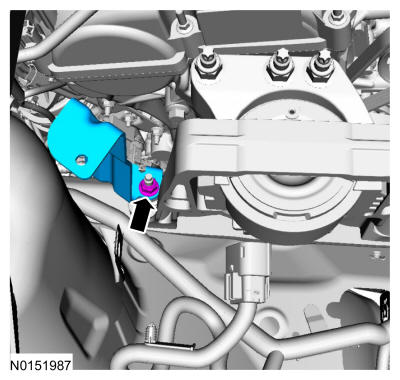

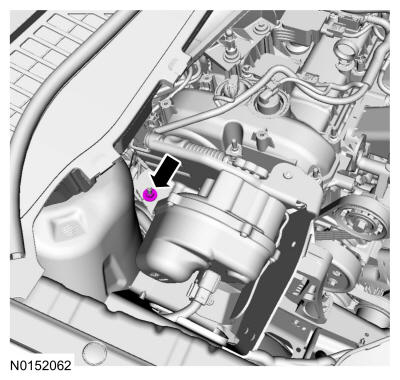

26. Remove the TRCM bracket nut.

    Courtesy of FORD MOTOR COMPANY

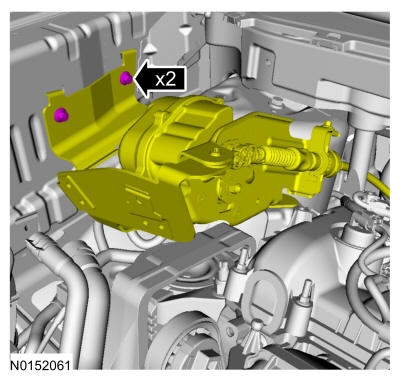

27. Remove the bolts and position the TRCM aside.

    Courtesy of FORD MOTOR COMPANY

28. Remove the nut and the TRCM bracket.

    Courtesy of FORD MOTOR COMPANY

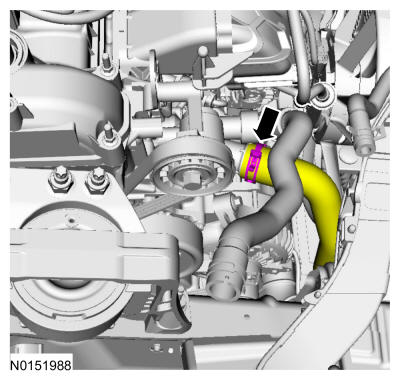

29. Disconnect the lower radiator hose from the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

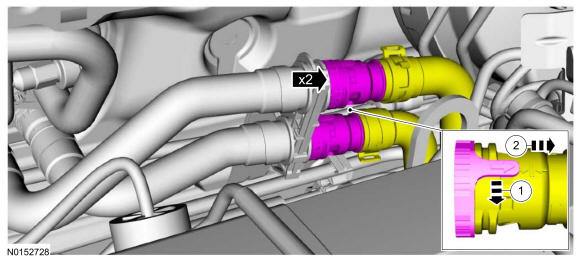

30. 1. Rotate the heater hose tabs.
    2. Disconnect the heater hoses.

    Courtesy of FORD MOTOR COMPANY

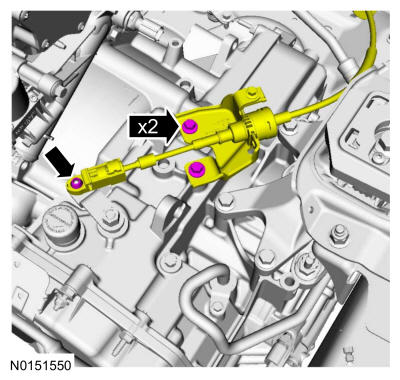

31. Remove the bolts and disconnect the transmission shift cable and position aside.

    Courtesy of FORD MOTOR COMPANY

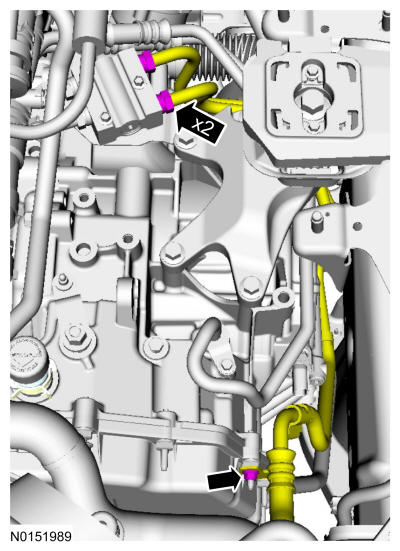

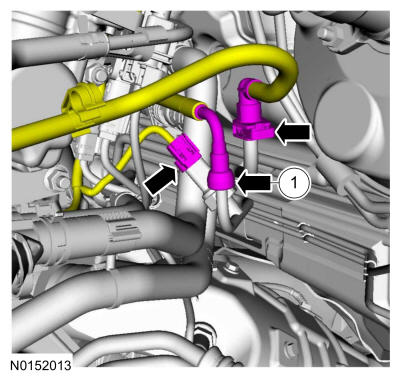

32. Remove the nut and line nuts for the transmission cooling block and position aside.

    Courtesy of FORD MOTOR COMPANY

33. Remove the front wheels and tires. Refer to: Wheel and Tire .

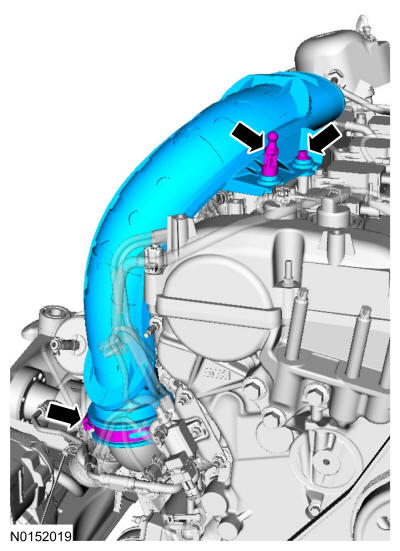

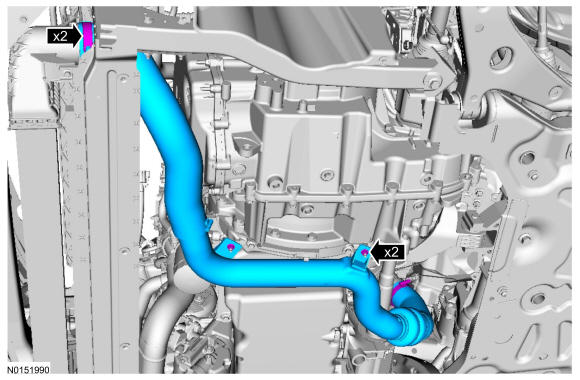

34. Loosen the clamps and remove the nuts and the CAC inlet tube.

    Courtesy of FORD MOTOR COMPANY

35. Loosen the clamps and remove the CAC outlet tube.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Discard the O-ring seals and gaskets.

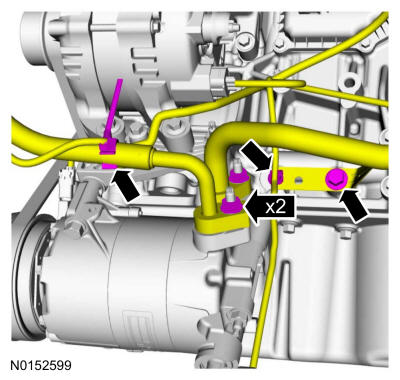

    Remove the bolt, nuts and wire harness retainers and position the A/C lines aside.

    Courtesy of FORD MOTOR COMPANY

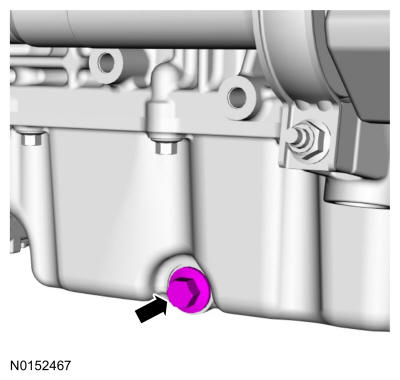

37. • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

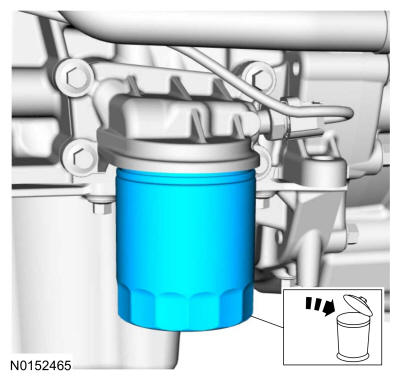

38. Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

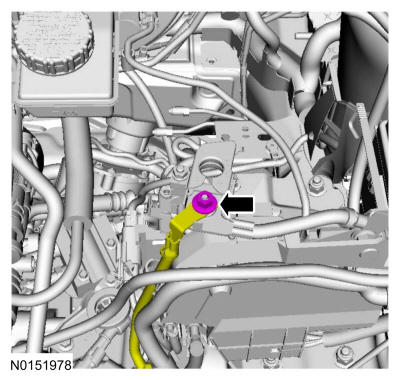

39. Remove the bolt and disconnect the ground cable retainer and position aside.

    Courtesy of FORD MOTOR COMPANY

40. If equipped, remove the retainers and the underbody side panels.

    Courtesy of FORD MOTOR COMPANY

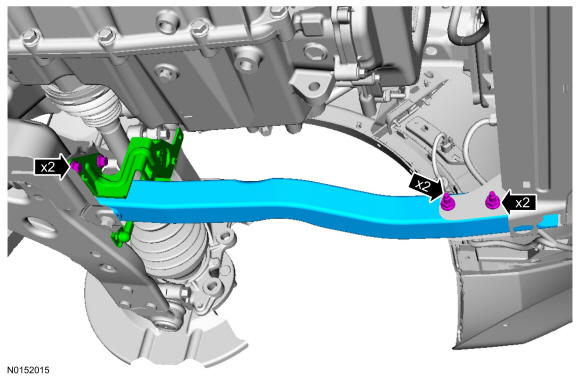

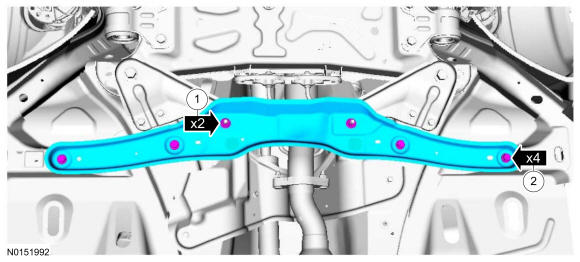

41. Remove the bolts, nuts and the body brace.

    Courtesy of FORD MOTOR COMPANY

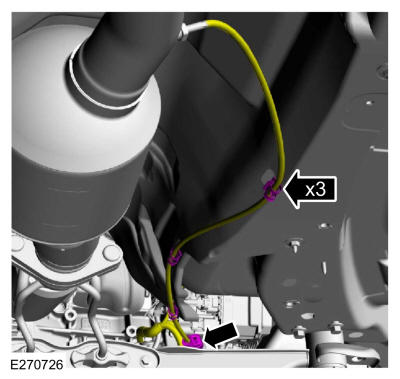

42. If equipped, disconnect the exhaust gas temperature sensor electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

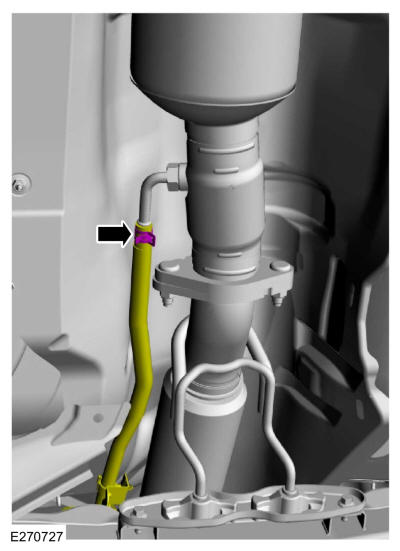

43. If equipped, disconnect the exhaust pressure sensor hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

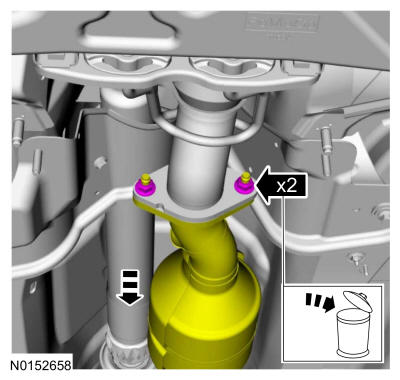

44. Remove and discard the exhaust nuts and position exhaust rearward.

    Courtesy of FORD MOTOR COMPANY

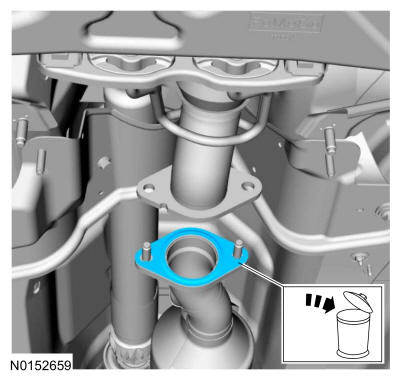

45. NOTE: Clean the catalytic converter-to-muffler sealing surfaces.

    Remove and discard the muffler inlet pipe gasket.

    Courtesy of FORD MOTOR COMPANY

46. Remove the RH front halfshaft. Refer to: Front Halfshaft RH .

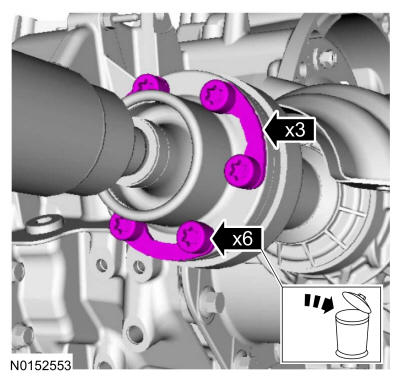

47. Remove the bolts, brackets from the front of the driveshaft and discard the bolts.

    Courtesy of FORD MOTOR COMPANY

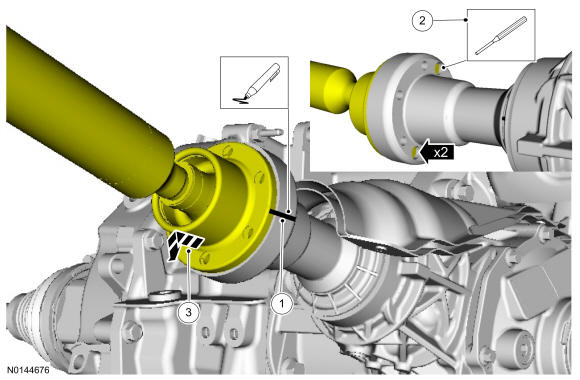

48. 1. Index-mark the front of the driveshaft.
    2. Using a hammer and a punch, separate the driveshaft.
    3. Position the driveshaft aside and support.

    Courtesy of FORD MOTOR COMPANY

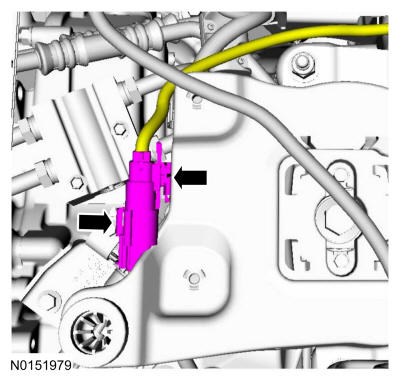

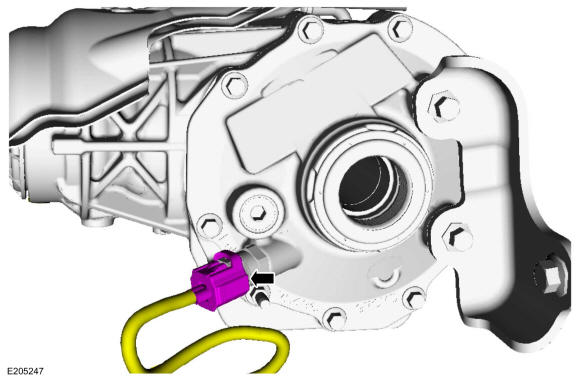

49. If equipped, disconnect the transfer case temperature sensor.

    Courtesy of FORD MOTOR COMPANY

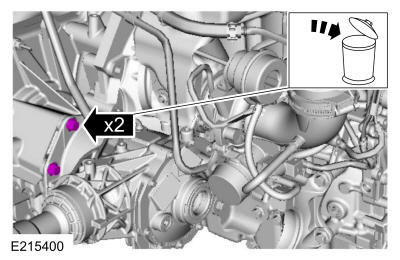

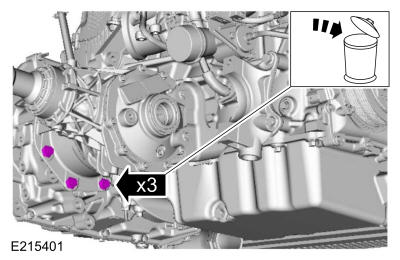

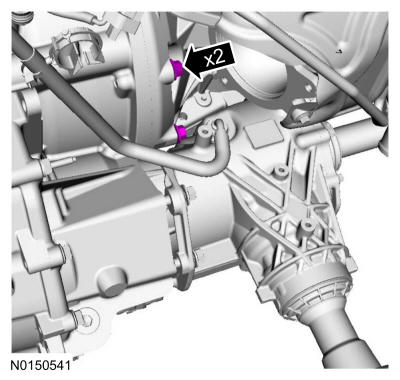

50. Remove and discard the lower transfer case bolts.

    Courtesy of FORD MOTOR COMPANY

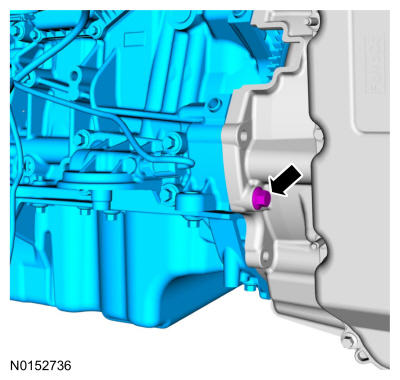

51. Remove the oil pan-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

52. NOTE: One of these bolts will be used to mount the Adjustable Mounting Arm to the powertrain.

    Remove the oil pan-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Mark the position of the bracket for reference during installation.

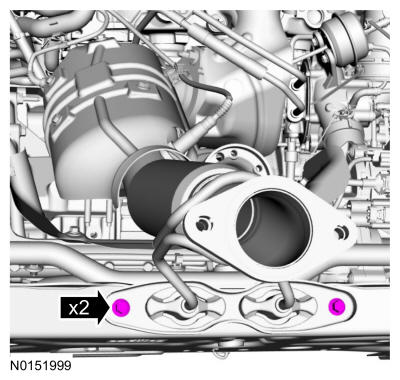

    Remove the nuts, studs and catalytic converter support bracket.

    Courtesy of FORD MOTOR COMPANY

54. NOTE: LH shown, RH similar.

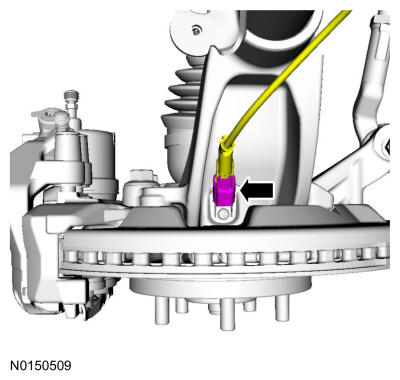

    Disconnect the front wheel speed sensor.

    Courtesy of FORD MOTOR COMPANY

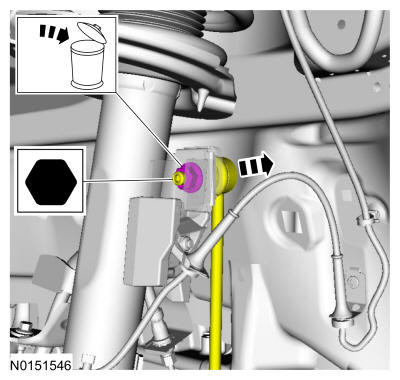

55. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
    NOTE: LH shown, RH similar.

    Remove the nut and position the front stabilizer bar link aside.

    Courtesy of FORD MOTOR COMPANY

56. Remove the front brake discs. Refer to: Brake Disc .
57. NOTE: The struts will need to slide out of the knuckles when the powertrain and subframe assembly is lowered.
    NOTE: LH shown, RH similar.

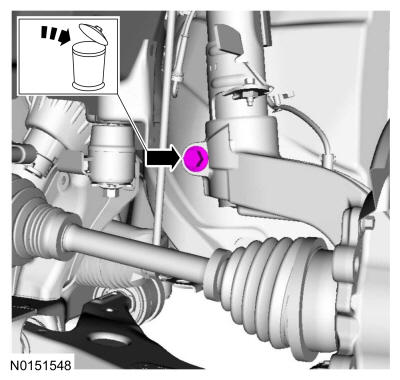

    Remove the bolt from the wheel knuckle.

    Courtesy of FORD MOTOR COMPANY

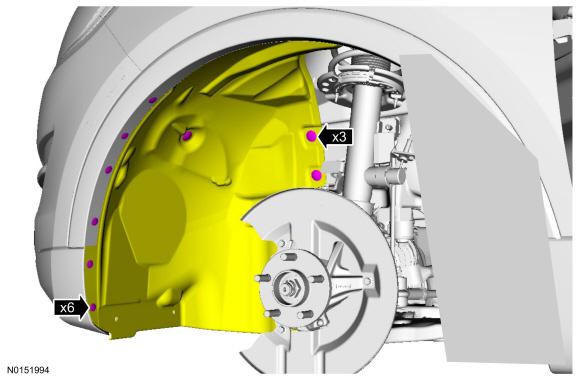

58. Remove the retainers and position the fender splash shield aside.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: LH shown, RH similar.

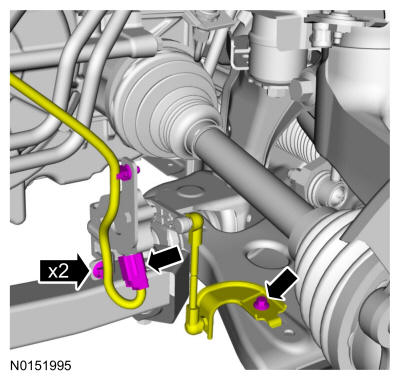

    • Remove the bolt and position height sensor bracket aside.
    • Disconnect the height sensor electrical connector and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

60. NOTE: LH shown, RH similar.

    Remove the nuts, bolts and subframe support frame and height sensor.

    Courtesy of FORD MOTOR COMPANY

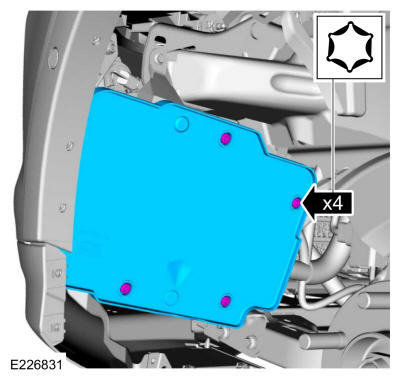

61. Remove the screws and the PCM housing cover.

    Courtesy of FORD MOTOR COMPANY

62. Detach the wiring harness grommet.

    Courtesy of FORD MOTOR COMPANY

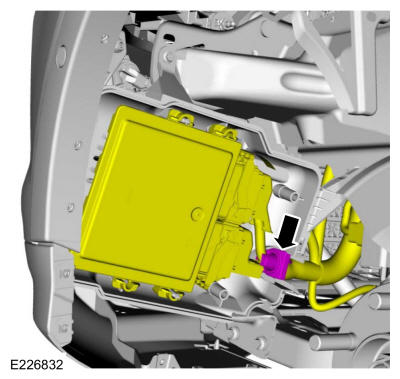

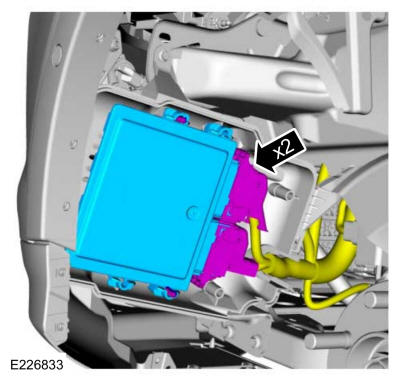

63. Disconnect the electrical connectors and remove the PCM.

    Courtesy of FORD MOTOR COMPANY

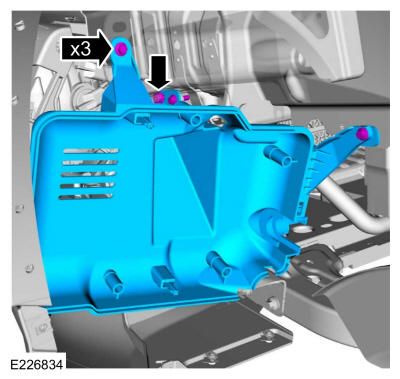

64. • Remove the bolts and the PCM housing.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

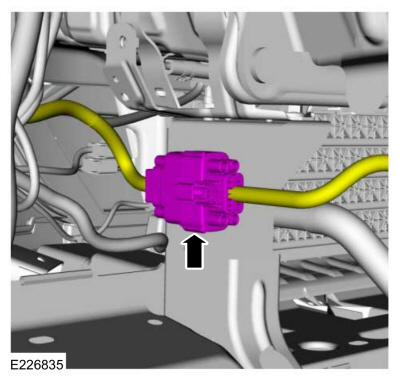

65. Disconnect the engine wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

66. NOTE: Front bumper cover removed for clarity.

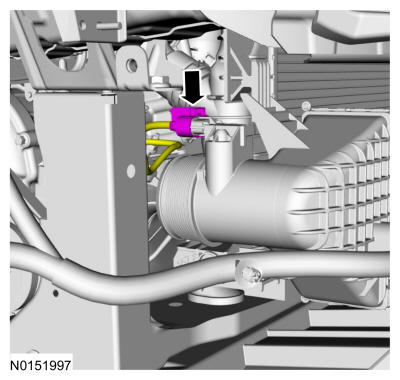

    Disconnect the turbocharger boost pressure and charge air temperature sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

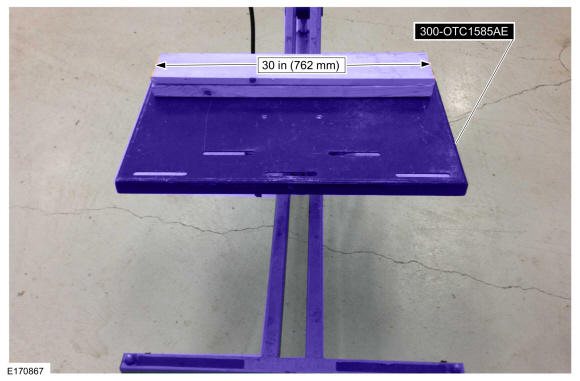

67. Position a 2 x 6 board, 30 in (762 mm) in length and one 1 x 6 board 30 in (762 mm) in length onto the Special tool. Install Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

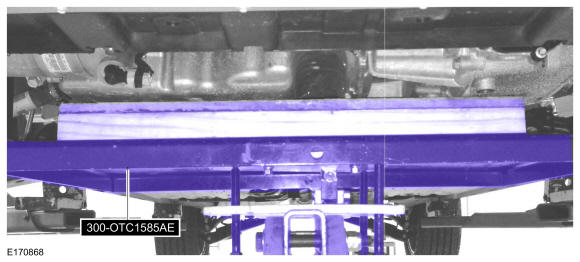

68. Position the powertrain lift table with the boards under the engine and transmission.

    Courtesy of FORD MOTOR COMPANY

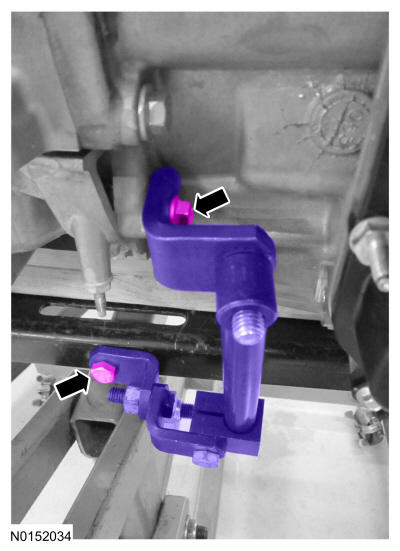

69. Install the adjustable mounting arm and the bolts. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

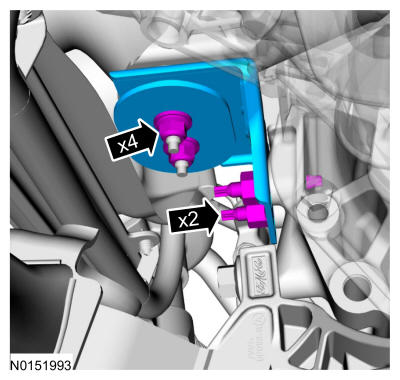

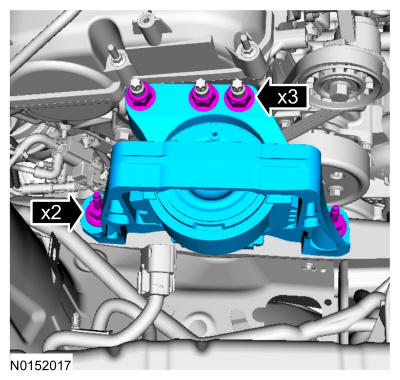

70. Remove the nuts, stud bolts and the engine mount.

    Courtesy of FORD MOTOR COMPANY

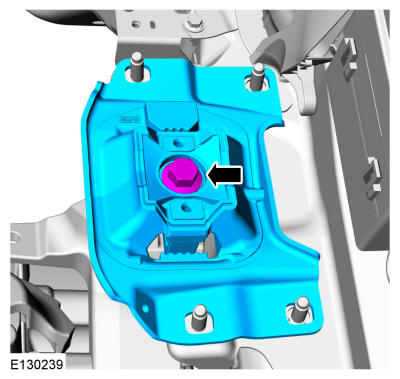

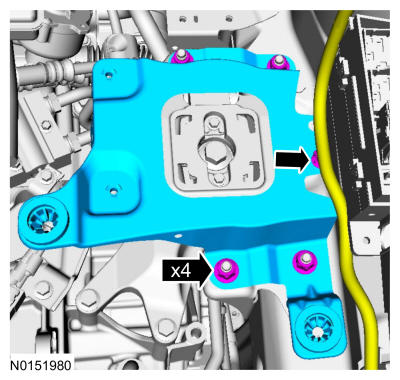

71. Remove the bolt and the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

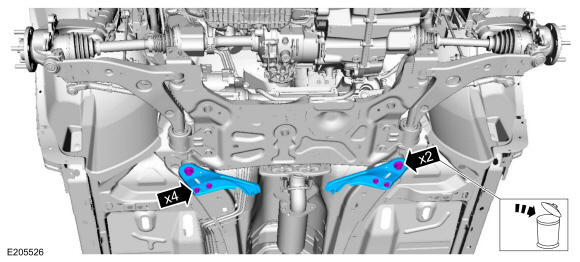

72. • Remove the bolts and the rear subframe support brackets.
    • Discard the 2 bolts.

    Courtesy of FORD MOTOR COMPANY

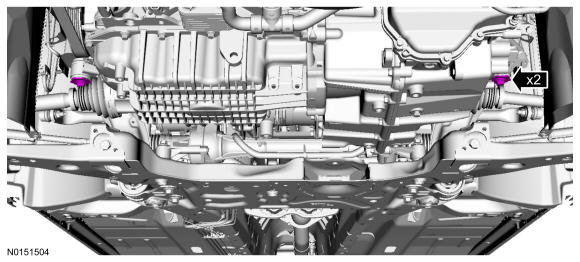

73. Remove the front subframe bolts.

    Courtesy of FORD MOTOR COMPANY

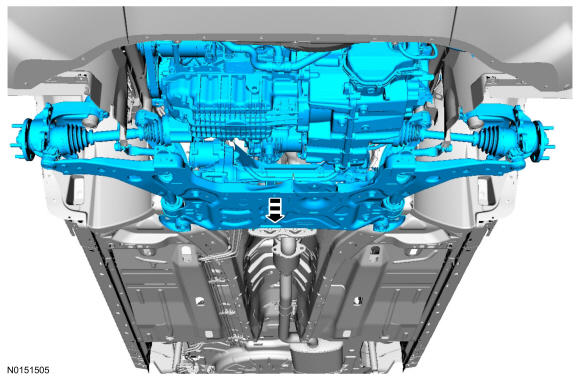

74. NOTE: Make sure the struts slide out of the knuckles when lowered.
    NOTE: Make sure the transmission cooler tubes are free and clear when lowered.

    Using the powertrain lift, lower the powertrain and subframe assembly.

    Courtesy of FORD MOTOR COMPANY

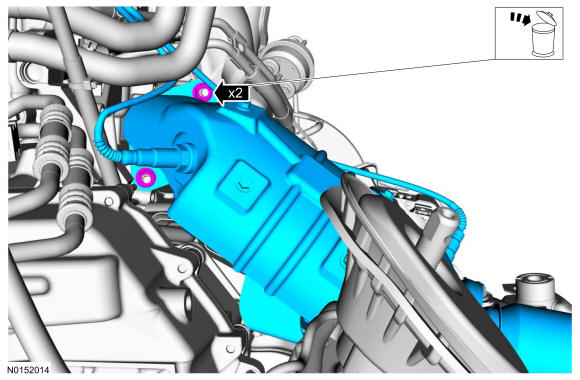

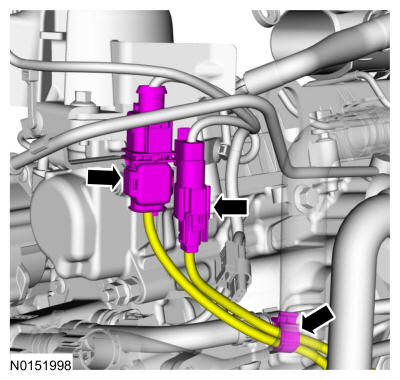

75. Disconnect the HO2S and catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

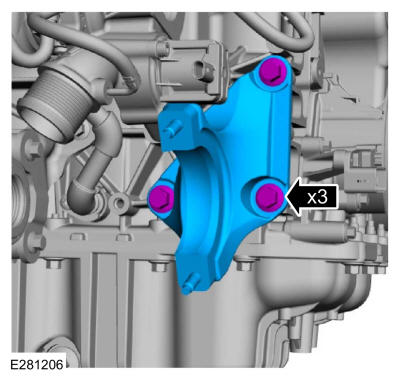

76. Remove the bolts for the catalytic converter support bracket.

    Courtesy of FORD MOTOR COMPANY

77. Remove the nuts and the catalytic converter and discard the nuts.

    Courtesy of FORD MOTOR COMPANY

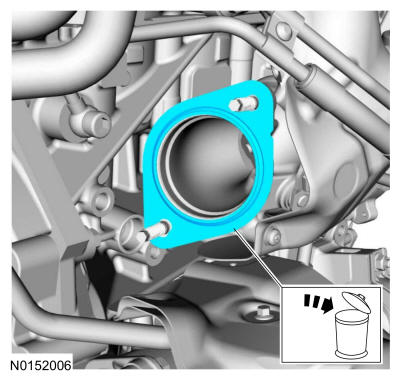

78. NOTE: Clean the catalytic converter-to-turbocharger sealing surfaces.

    Remove and discard the catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

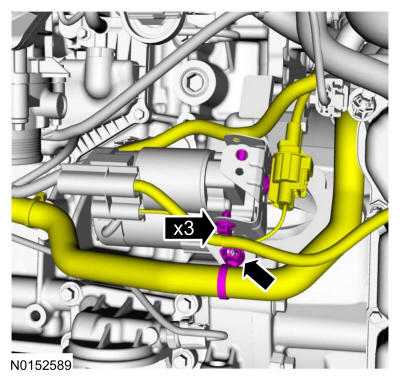

79. Detach the coolant hose retainer from the starter motor stud bolt and the wiring harness retainers from the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

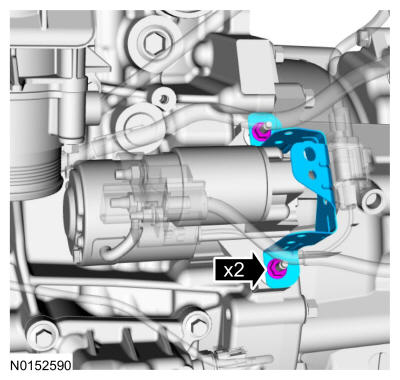

80. Remove the nuts and the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

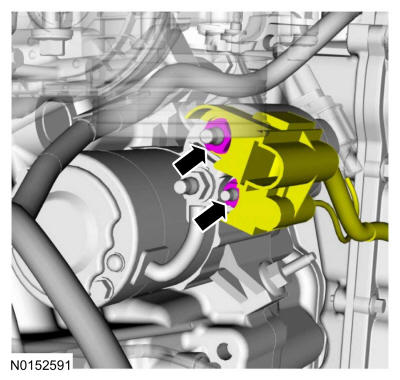

81. Remove the starter motor electrical housing nuts and position harness aside.

    Courtesy of FORD MOTOR COMPANY

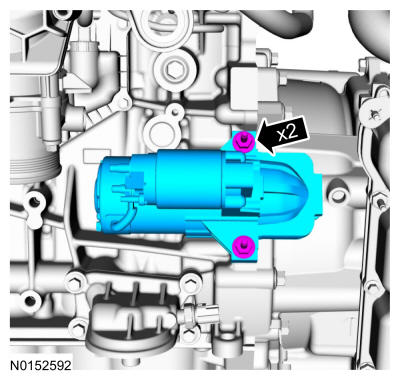

82. Remove the stud bolts and the starter motor.

    Courtesy of FORD MOTOR COMPANY

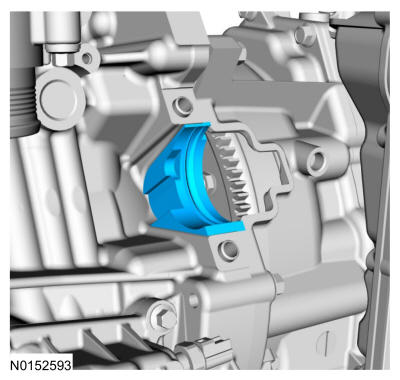

83. Remove the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

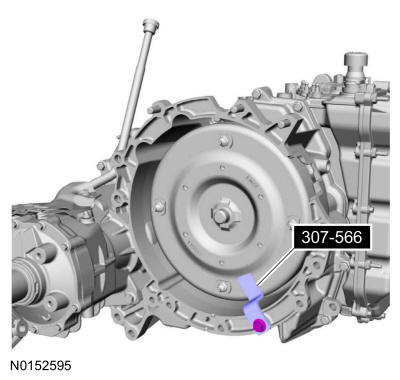

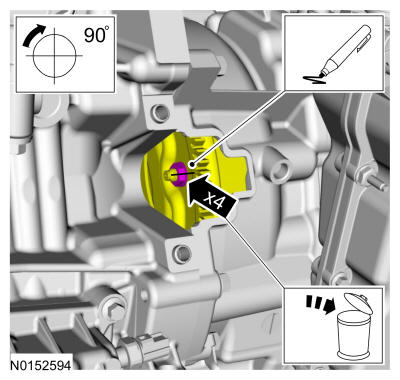

84. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

    Index-mark and remove the 4 torque converter nuts and discard. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

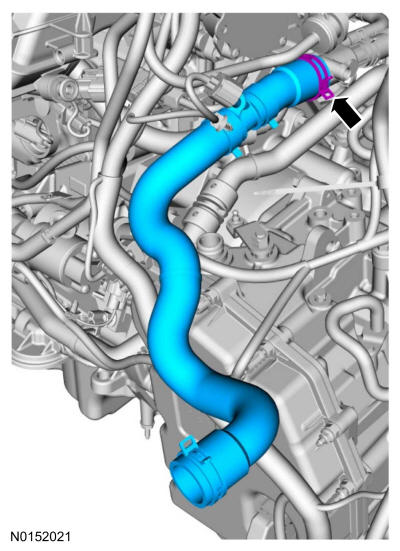

85. Disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

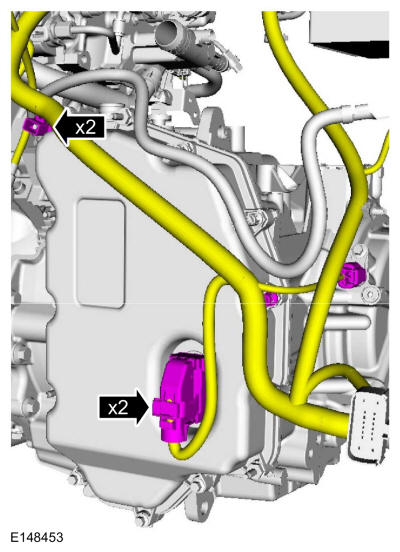

86. Disconnect the transmission electrical connectors and the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

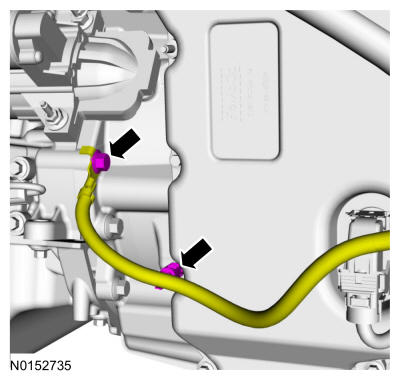

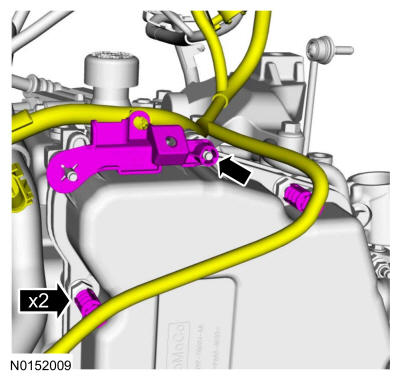

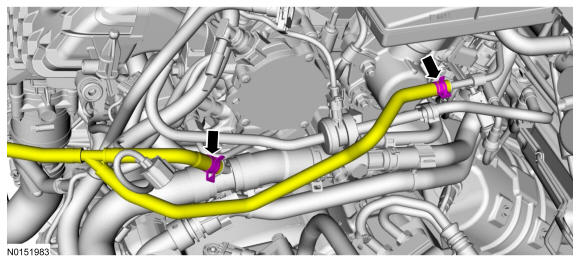

87. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

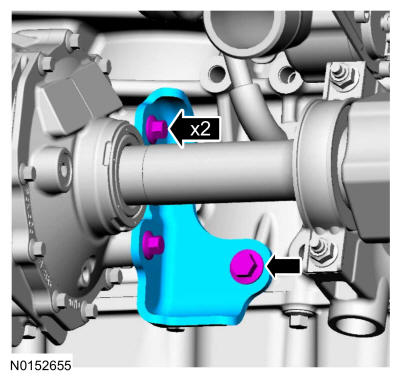

88. Remove the bolts and the halfshaft support bracket.

    Courtesy of FORD MOTOR COMPANY

89. Detach the transfer case vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

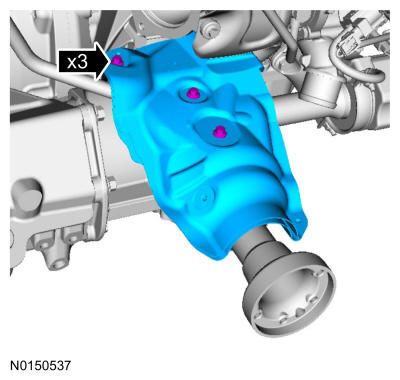

90. Remove the bolts and the transfer case heat shield.

    Courtesy of FORD MOTOR COMPANY

91. Remove the bolts and the transfer case support bracket.

    Courtesy of FORD MOTOR COMPANY

92. Remove and discard the upper transfer case bolts.

    Courtesy of FORD MOTOR COMPANY

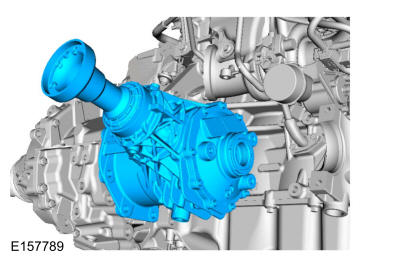

93. Remove the transfer case.

    Courtesy of FORD MOTOR COMPANY

94. Remove and discard the transfer case to transmission compression seal.

    Courtesy of FORD MOTOR COMPANY

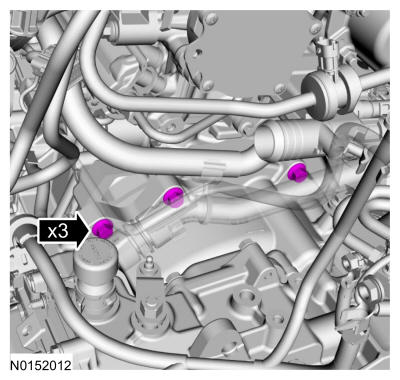

95. Remove the transmission-to-engine bolts.

    Courtesy of FORD MOTOR COMPANY

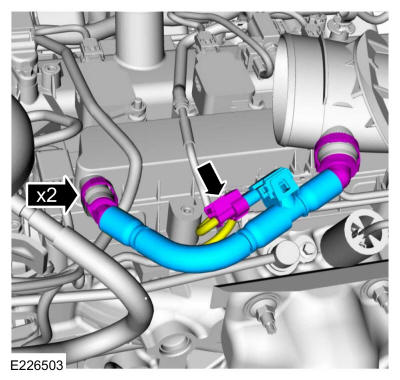

96. Disconnect the electrical connector and remove the crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

97. • Loosen the turbocharger inlet pipe clamp.
    • Remove the engine appearance cover stud.
    • Remove the bolt and the turbocharger inlet pipe.

    Courtesy of FORD MOTOR COMPANY

98. Install the spreader bar and floor crane. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

    Courtesy of FORD MOTOR COMPANY

99. Remove the bolts and the adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

100. Remove the upper transmission-to-engine bolts.

     Courtesy of FORD MOTOR COMPANY

101. Remove the transmission-to-engine bolt and remove the engine from the transmission.

     Courtesy of FORD MOTOR COMPANY

102. Install Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
