Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Do not tighten the bolts at this time. The bolts will be tightened during the timing chain installation procedure.

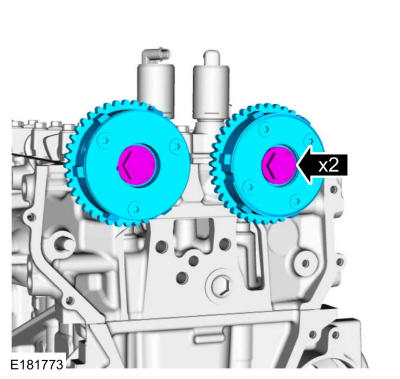

    Install the VCT units and the bolts.

    GFD393616Courtesy of FORD MOTOR COMPANY
  2. Install the timing chain. Refer to: Timing Chain 2.0L EcoBoost .
