Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect 2.3L EcoBoost .
  3. Remove the following items:
    1. Refer to: Cowl Panel .
    2. Refer to: Engine Front Cover 2.3L EcoBoost  .
    • Remove the bolts and the hood release handle and detach the retainer
    • Remove the retainers and the upper radiator sight shield.
    GFD393565Courtesy of FORD MOTOR COMPANY
  5. Install Special Service Tool: 303-F072 Support Bar, Engine.
    GFD393566Courtesy of FORD MOTOR COMPANY
  6. Loosen the clamps and remove the nuts and the CAC inlet tube.
    GFD393961Courtesy of FORD MOTOR COMPANY
  7. Loosen the clamps and remove the CAC outlet tube.
    GFD393643Courtesy of FORD MOTOR COMPANY
    • Disconnect the electrical connectors and wiring retainer.
    • Remove the nut and stud.
    • Remove the bolts and position the A/C compressor aside and support.

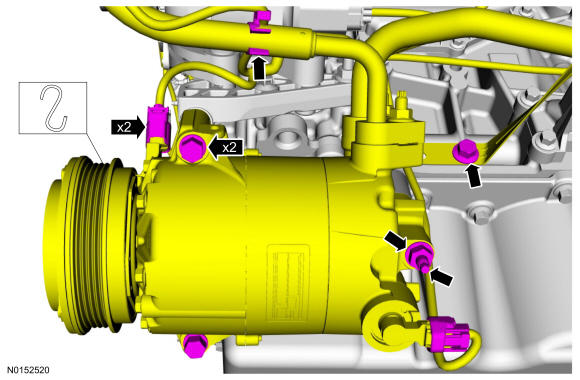

    GFD393974Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    GFD393483Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the engine oil filter.
    GFD393949Courtesy of FORD MOTOR COMPANY
  11. Remove the oil pan-to-transmission bolts.
    GFD393965Courtesy of FORD MOTOR COMPANY
  12. Remove the oil pan-to-transmission bolt.
    GFD393567Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the oil pan.
    GFD393568Courtesy of FORD MOTOR COMPANY
  14. Remove the bolts and the oil pickup and screen.
    GFD393569Courtesy of FORD MOTOR COMPANY
  15. Discard the oil pickup and screen O-ring seal.
    GFD393975Courtesy of FORD MOTOR COMPANY
    1. WARNING: Take extra care when handling the compressed spring.

      Release the tension on the tensioner spring.

    2. Remove the shoulder bolts and the tensioner and position the oil pump chain aside.

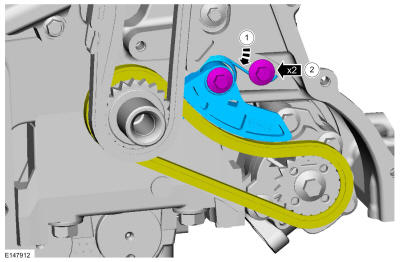

    GFD393571Courtesy of FORD MOTOR COMPANY
  17. Remove the bolt and oil pump sprocket.
    GFD393572Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and the oil pump.
    GFD393573Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the oil pump gasket.
