Oil Pressure Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the underbody shield.

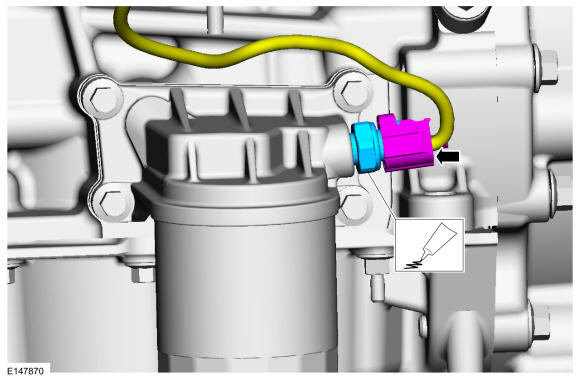

- Disconnect the electrical connector and remove the oil pressure switch.
Torque: 133 lb.in (15 Nm)
