Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
    GFD393487Courtesy of FORD MOTOR COMPANY

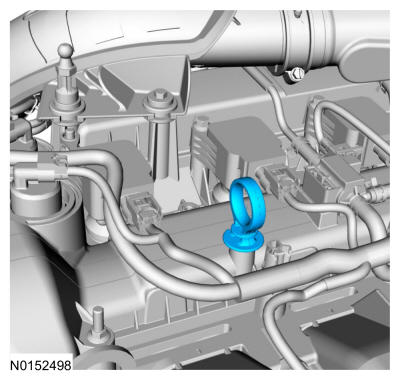

  3. Remove the oil level indicator.
    GFD393536Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:
    1. Remove the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.3L EcoBoost .
    2. Remove the air cleaner. Refer to: Air Cleaner 2.3L EcoBoost .

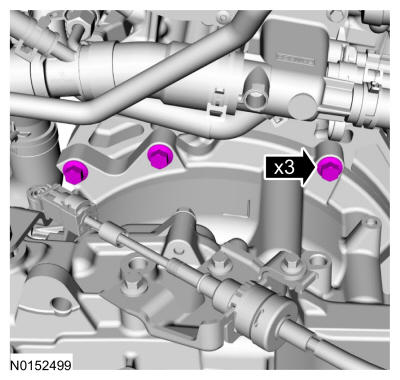

  5. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).

    Loosen the transmission-to-engine bolts 5 mm (0.19 in).

    GFD393537Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the underbody shields.
    GFD393959Courtesy of FORD MOTOR COMPANY

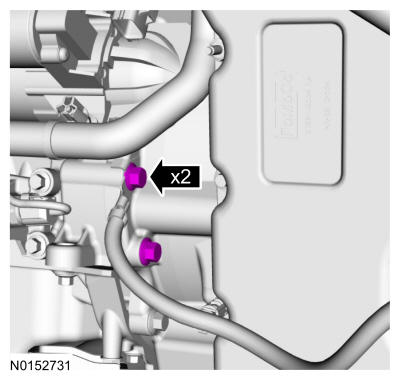

  7. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).

    Loosen the transmission-to-engine bolts 5 mm (0.19 in).

    GFD393960Courtesy of FORD MOTOR COMPANY
  8. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt 2.3L EcoBoost .
  9. Loosen the clamps and remove the nuts and the CAC inlet tube.
    GFD393961Courtesy of FORD MOTOR COMPANY
  10. Loosen the clamps and remove the CAC outlet tube.
    GFD393643Courtesy of FORD MOTOR COMPANY

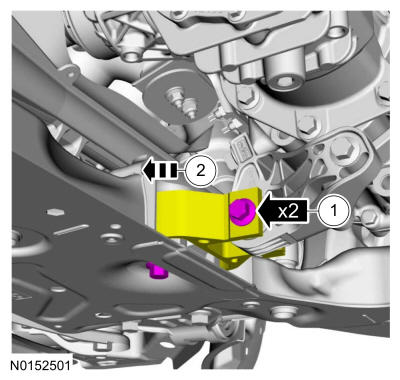

  11. Remove the bolts and position the engine roll restrictor back into the subframe.
    GFD393962Courtesy of FORD MOTOR COMPANY

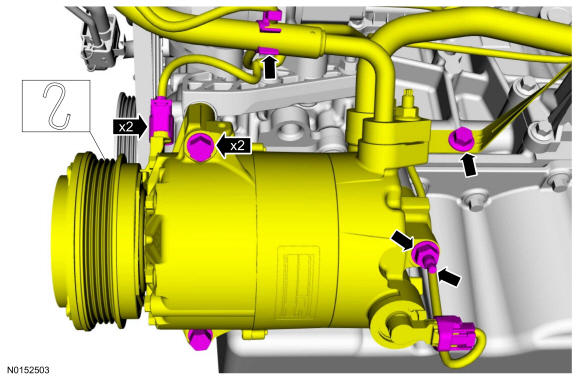

    • Disconnect the electrical connectors and wiring retainer.
    • Remove the nut and stud.
    • Remove the bolts and position the A/C compressor aside and support.
    GFD393963Courtesy of FORD MOTOR COMPANY
  13. Remove the transfer case. Refer to: Transfer Case .
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    GFD393483Courtesy of FORD MOTOR COMPANY
  15. Remove and discard the engine oil filter.
    GFD393949Courtesy of FORD MOTOR COMPANY

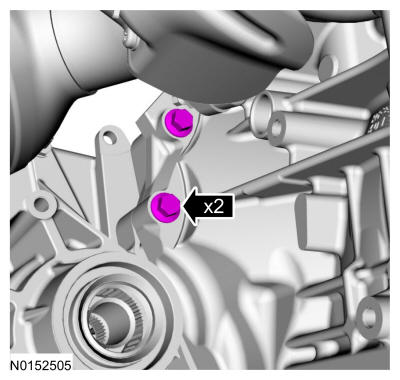

  16. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).

    Loosen the engine-to-transmission bolts 5 mm (0.19 in).

    GFD393549Courtesy of FORD MOTOR COMPANY

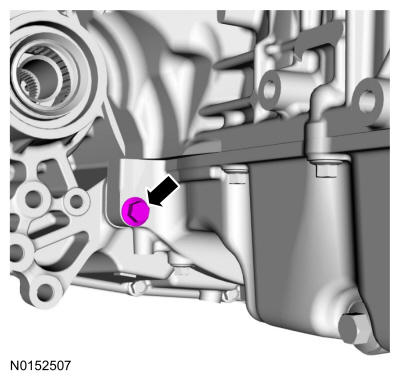

  17. Remove the oil pan-to-transmission bolt.
    GFD393964Courtesy of FORD MOTOR COMPANY
  18. Remove the oil pan-to-transmission bolts.
    GFD393965Courtesy of FORD MOTOR COMPANY

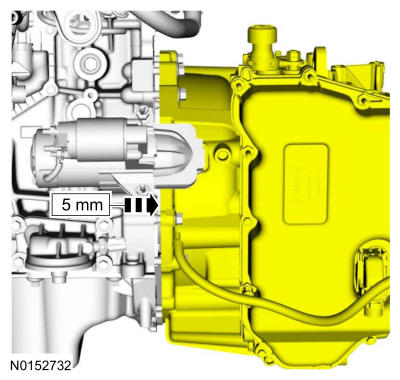

  19. Separate the transmission from the engine 5 mm (0.19 in).
    GFD393966Courtesy of FORD MOTOR COMPANY

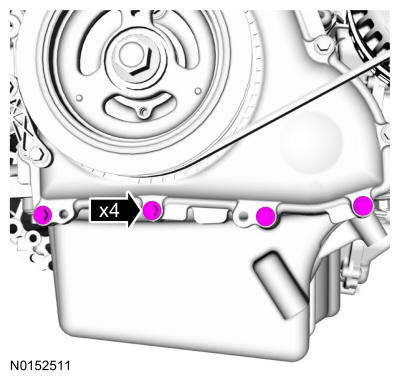

  20. Remove the engine front cover-to-oil pan bolts.
    GFD393553Courtesy of FORD MOTOR COMPANY

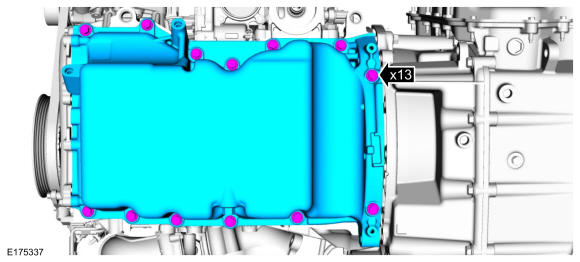

  21. Remove the bolts and the oil pan.
GFD393554Courtesy of FORD MOTOR COMPANY
