Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
Remove retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

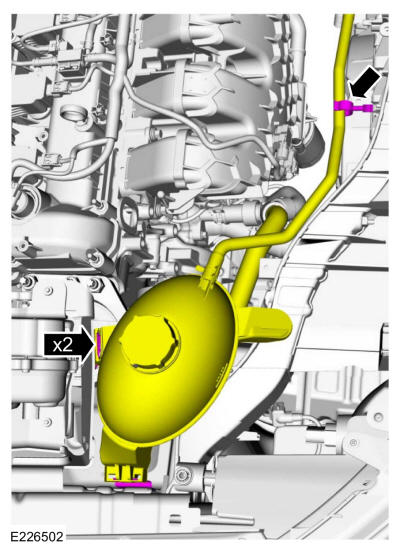

Release the degas bottle tabs and the coolant tube retainer and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY
Remove the TRCM bracket nut.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position the TRCM aside.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut and TRCM bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Position the jack and wooden block under the front of the oil pan. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
1. Remove the engine mount nuts.
  Torque: 59 lb.ft (80 Nm)
2. Remove the stud bolts and the engine mount.
  Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
