Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flexplate. Refer to: Flexplate 2.3L EcoBoost .

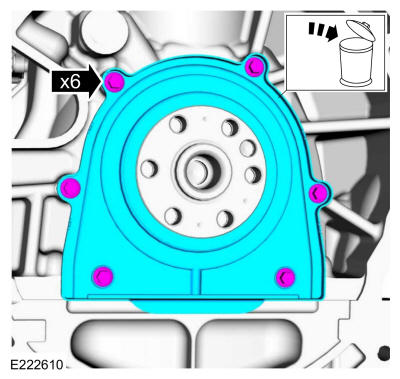

- Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.

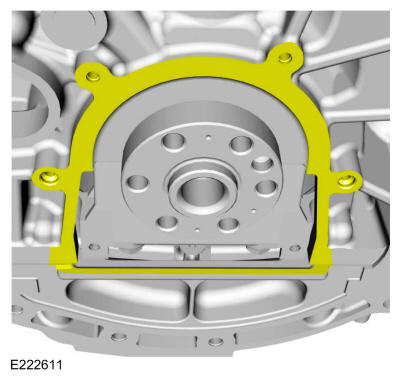

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
