Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

    Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD393465Courtesy of FORD MOTOR COMPANY
  2. Lubricate the crankshaft pulley with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD393466Courtesy of FORD MOTOR COMPANY
  3. Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.
    GFD393467Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

    Install an M6 bolt.

    GFD393468Courtesy of FORD MOTOR COMPANY
  5. NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

    Using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 90 deg.

    GFD393469Courtesy of FORD MOTOR COMPANY
  6. Remove the M6 bolt.
    GFD393470Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not tighten the CKP sensor bolts at this time.

    Install the CKP sensor and the bolts.

    GFD393471Courtesy of FORD MOTOR COMPANY
  8. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Torque: 89 lb.in (10 Nm)

    GFD393472Courtesy of FORD MOTOR COMPANY
  9. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
    GFD393473Courtesy of FORD MOTOR COMPANY
  10. Connect the CKP sensor electrical connector.
    GFD393474Courtesy of FORD MOTOR COMPANY
  11. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    GFD393428Courtesy of FORD MOTOR COMPANY
  12. Install the engine plug bolt.

    Torque: 177 lb.in (20 Nm)

    GFD393475Courtesy of FORD MOTOR COMPANY

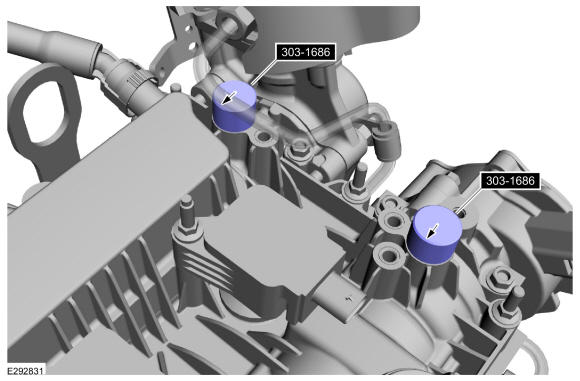

  13. Remove Special Service Tool: 303-1686 Holding Tool, Camshaft.
    GFD393460Courtesy of FORD MOTOR COMPANY
  14. Install the following items:
    1. RH and LH CMP sensors. Refer to: Camshaft Position (CMP) Sensor LH 2.0L EcoBoost . Refer to: Camshaft Position (CMP) Sensor RH 2.0L EcoBoost . Refer to: Camshaft Position (CMP) Sensor LH 2.3L EcoBoost . Refer to: Camshaft Position (CMP) Sensor RH 2.3L EcoBoost .
    2. Accessory drive belt. Refer to: Accessory Drive Belt 2.0L EcoBoost .

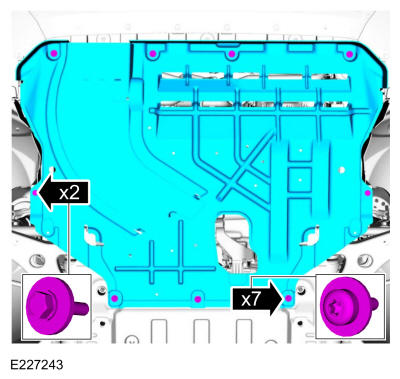

  15. Install the underbody shield and the retainers.
    GFD393453Courtesy of FORD MOTOR COMPANY
  16. Position the fender splash shield and install the retainers.
    GFD393431Courtesy of FORD MOTOR COMPANY
  17. Install the RH front wheel and tire. Refer to: Wheel and Tire .
  18. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
