Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

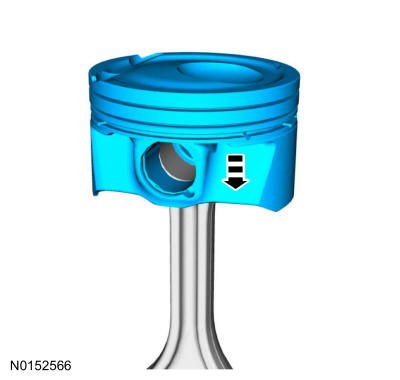

  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD393840Courtesy of FORD MOTOR COMPANY

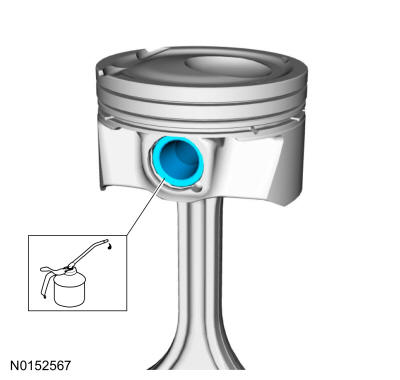

  2. Lubricate with clean engine oil and install the piston pin.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD393841Courtesy of FORD MOTOR COMPANY
  3. Install the piston pin retainers.
    GFD393842Courtesy of FORD MOTOR COMPANY

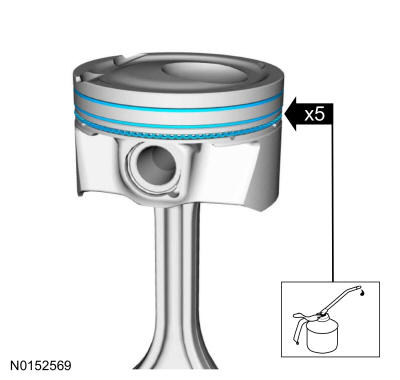

  4. Lubricate with clean engine oil and install the piston rings.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD393843Courtesy of FORD MOTOR COMPANY

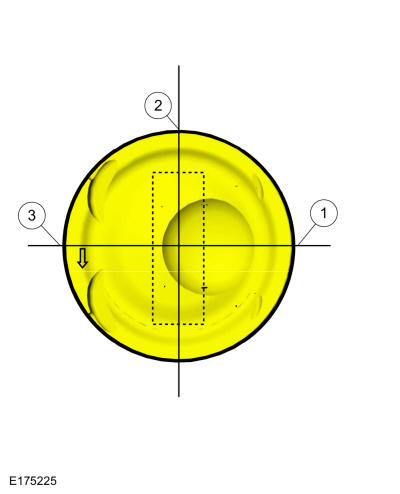

  5. NOTE: Align the piston rings on the piston.
    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.
GFD393844Courtesy of FORD MOTOR COMPANY
