Muffler and Tailpipe: Installation

WARNING: This page is about a different variant/trim than selected.

Clean all the exhaust connections before reassembly.

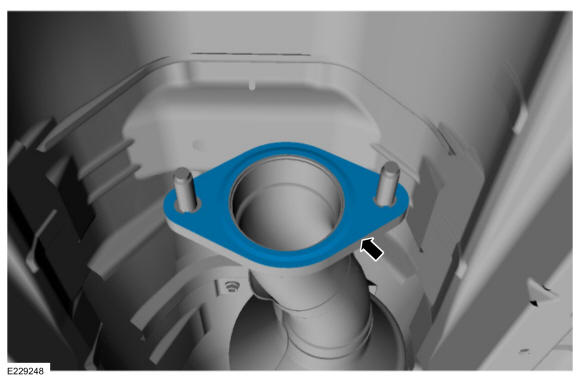

Install the new muffler and tailpipe flange gasket.

Courtesy of FORD MOTOR COMPANY

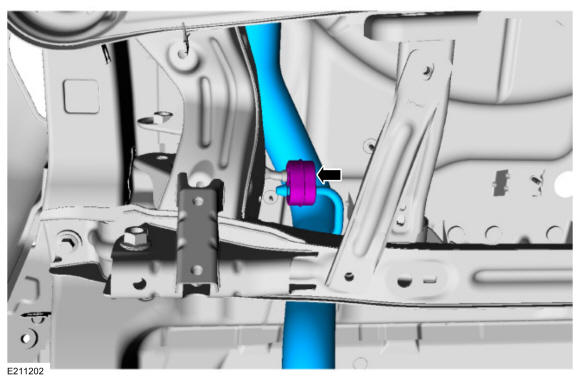

Attach the exhaust isolator.

Courtesy of FORD MOTOR COMPANY

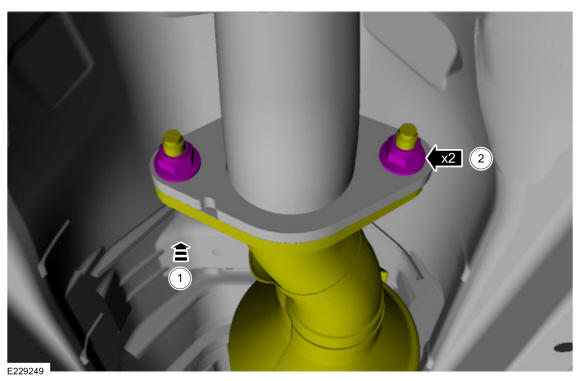

Position the pipe and install the new muffler and tailpipe flange nuts.
Torque:

30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

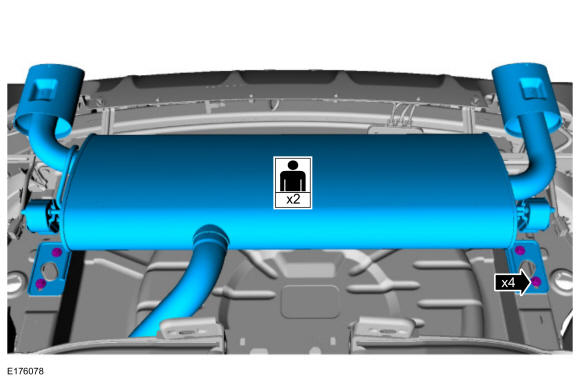

NOTE: If a new muffler assembly is installed, tighten the 4 exhaust isolator hanger bolts to specifications.

Install the muffler and exhaust isolator bracket bolts.

Torque:

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the muffler and tailpipe service clamp.
Torque:

33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
