Catalytic Converter: Installation
WARNING: This page is about a different variant/trim than selected.

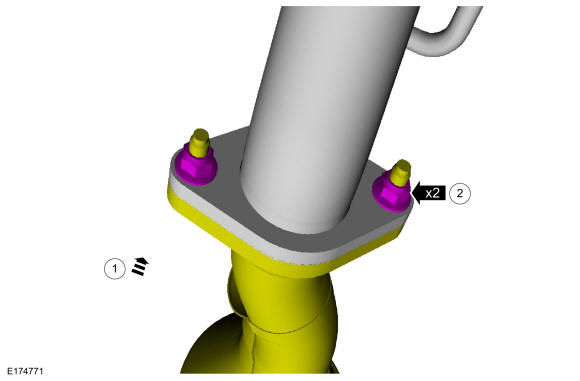

- Clean all the exhaust connections before reassembly.
-

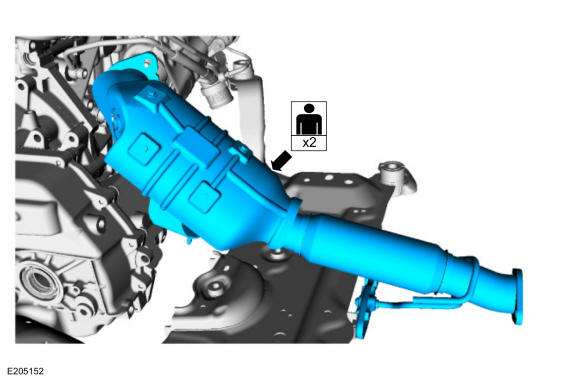

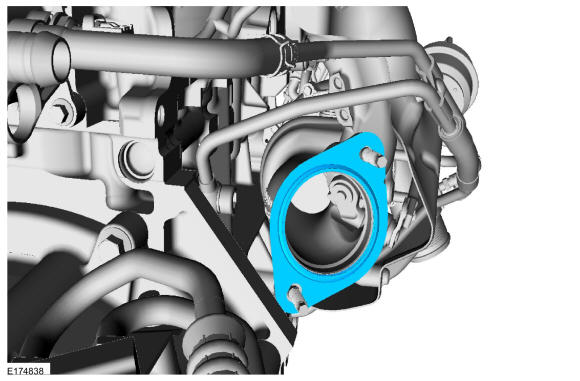

NOTE: Install a new gasket on the turbocharger.
-

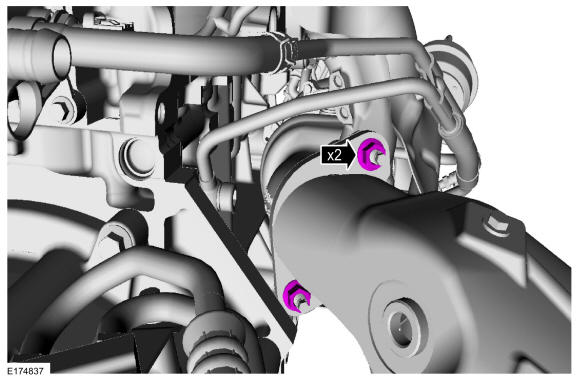

NOTE: Do not tighten the 2 new catalytic converter-to-turbocharger nuts at this time.
-

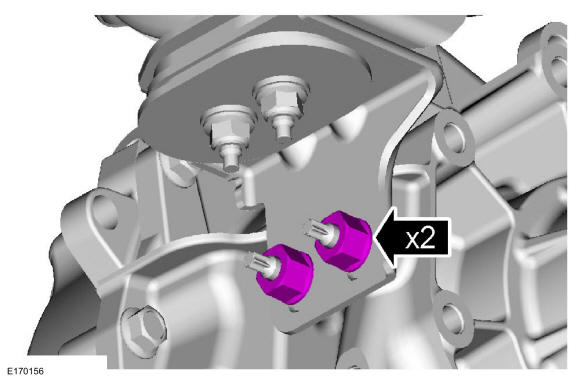

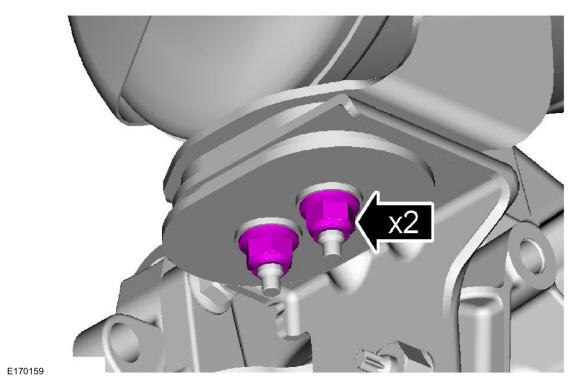

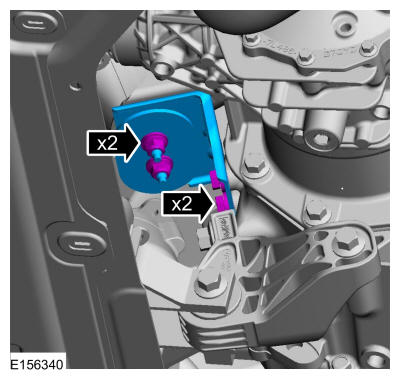

NOTE: Do not tighten the 4 catalytic converter bracket nuts at this time.

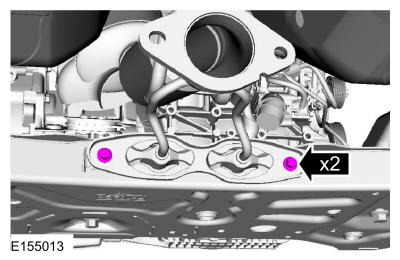

- Torque:
30 lb.ft (40 Nm)
- Torque:
18 lb.ft (25 Nm)
- Torque:
18 lb.ft (25 Nm)

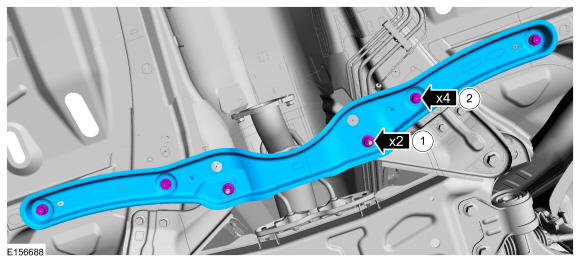

- Torque:
92 lb.ft (125 Nm)
- Torque:
18 lb.ft (25 Nm)
- Torque:
35 lb.ft (48 Nm)
- Torque:
30 lb.ft (40 Nm)
- Install the Catalyst Monitor Sensor. Refer to: Catalyst Monitor Sensor 2.3L EcoBoost .
- Refer to: Heated Oxygen Sensor (HO2S) 2.3L EcoBoost .
- Refer to: Battery Tray .
- Check the exhaust system for leaks.
