Degas Bottle: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

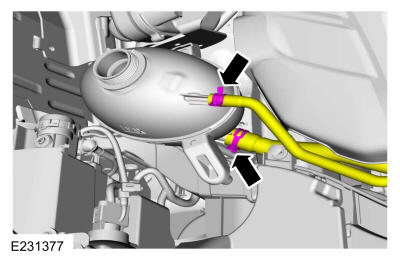

Courtesy of FORD MOTOR COMPANY

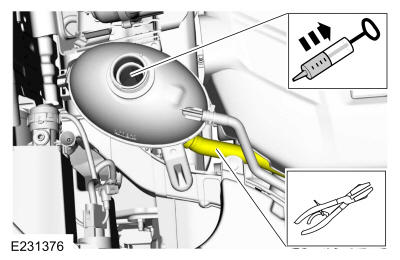

Use the General Equipment: Fluid Suction Gun Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Hose Clamp(s)

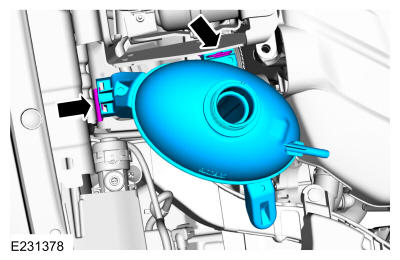

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
