Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
  2. NOTE: Some vehicles are equipped with a grille shutter assembly framework only. These vehicles will not have a grille shutter actuator or a grille shutter linkage.

    Remove the active grill shutter. Refer to: Active Grille Shutter .

  3. Remove the air cleaner. Refer to: Air Cleaner 2.0L EcoBoost .

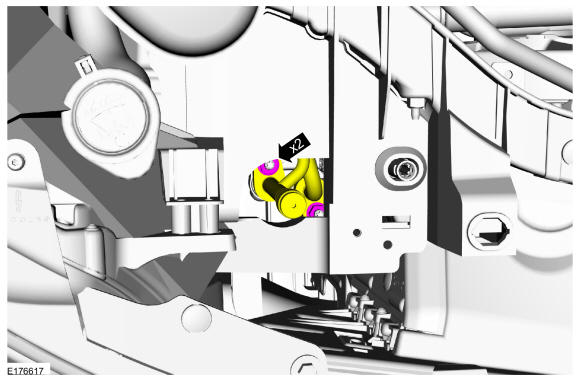

    • Remove the A/C line fasteners and remove the fittings.

      Torque: 133 lb.in (15 Nm)

    • Discard the O-ring seals and gasket seals.
    GFD394155Courtesy of FORD MOTOR COMPANY
  5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.0L EcoBoost . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.3L EcoBoost  .
  6. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
    GFD393487Courtesy of FORD MOTOR COMPANY
  7. NOTE: Cover the generator to prevent coolant contamination of the generator.

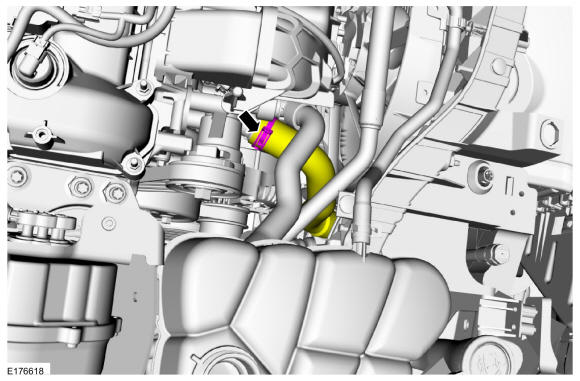

    Completely cover the generator with waterproof plastic. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    GFD394156Courtesy of FORD MOTOR COMPANY
  8. NOTE: Vehicle with trailer tow shown, vehicles without trailer tow similar.
    1. Trailer tow vehicles only. Disconnect the electrical connectors.
    GFD394145Courtesy of FORD MOTOR COMPANY

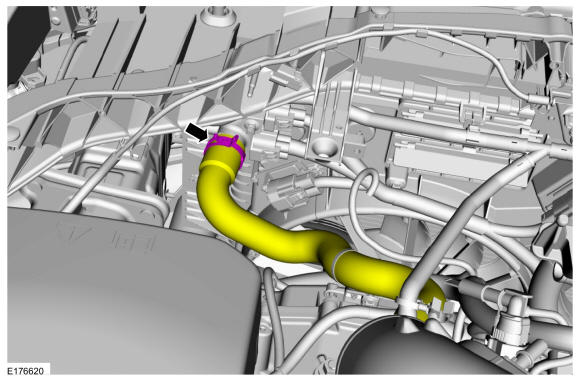

  9. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD394157Courtesy of FORD MOTOR COMPANY

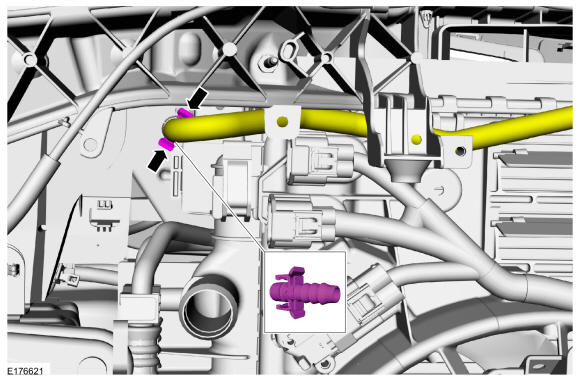

  10. Depress the tabs and disconnect the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
    GFD394158Courtesy of FORD MOTOR COMPANY

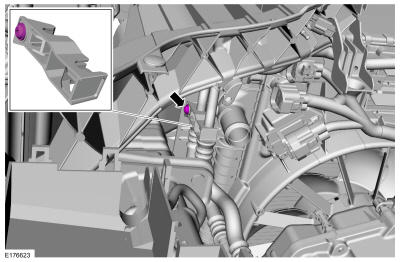

  11. Remove the transmission cooler line support bracket bolt.

    Torque: 44 lb.in (5 Nm)

    GFD394159Courtesy of FORD MOTOR COMPANY

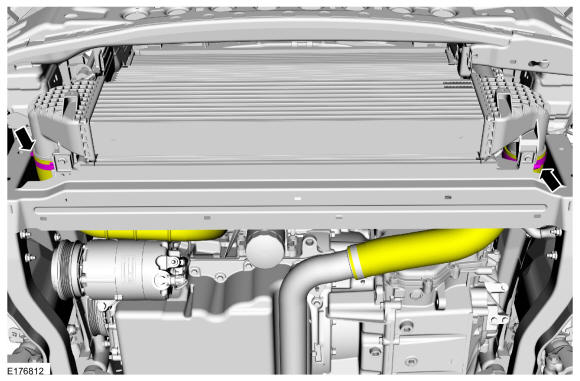

  12. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

    Loosen the clamp and disconnect the CAC tubes.

    Torque: 44 lb.in (5 Nm)

    GFD394160Courtesy of FORD MOTOR COMPANY

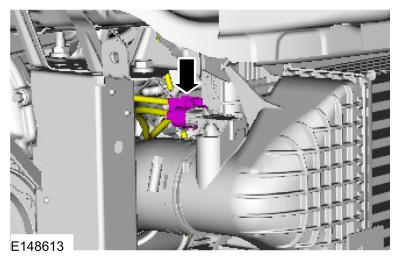

  13. Disconnect the electrical connector.
    GFD394161Courtesy of FORD MOTOR COMPANY

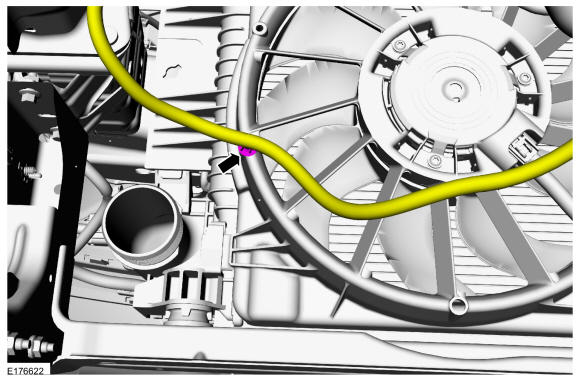

  14. Detach the wiring harness retainer.
    GFD394162Courtesy of FORD MOTOR COMPANY
  15. Detach the wiring harness electrical connector.
    GFD394148Courtesy of FORD MOTOR COMPANY

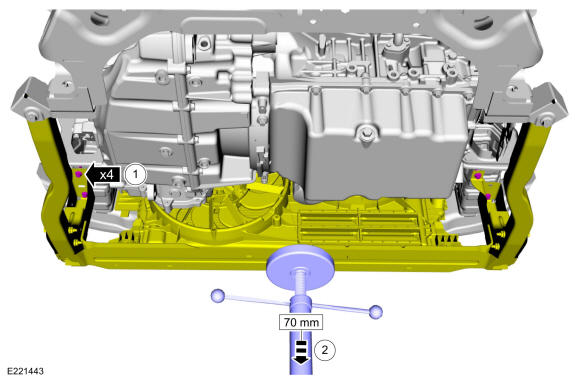

  16. Using an axle stand remove the bolts and lower the support. Use the General Equipment: Vehicle/Axle Stands

    Torque: 18 lb.ft (25 Nm)

    GFD394163Courtesy of FORD MOTOR COMPANY
  17. If necessary cut the adhesive between the foam strip and the transmission cooler. Use the General Equipment: Knife
    GFD394149Courtesy of FORD MOTOR COMPANY
  18. Position aside and secure to the cross beam.
    GFD394152Courtesy of FORD MOTOR COMPANY

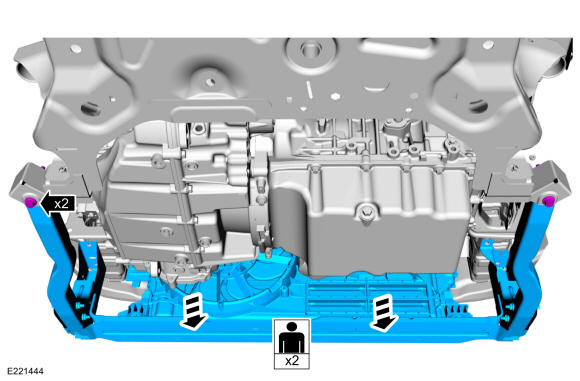

  19. Remove the bolts and the cooling module.

    Torque: 35 lb.ft (47 Nm)

GFD394164Courtesy of FORD MOTOR COMPANY
