Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.0L EcoBoost . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.3L EcoBoost .
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

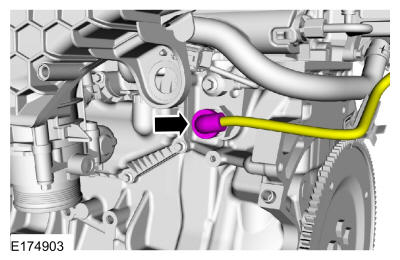

Disconnect the block heater electrical connector.

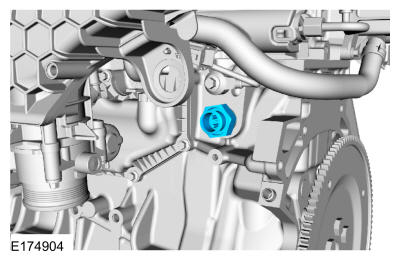

- Remove the block heater.
Torque: 30 lb.ft (40 Nm)
