Fuel Tank: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation steps.

NOTE: View a video of this procedure below.

multimedia:A supplement to the article is available.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release 2.3L EcoBoost .
Drain the fuel tank. Refer to: Fuel Tank Draining 2.3L EcoBoost .

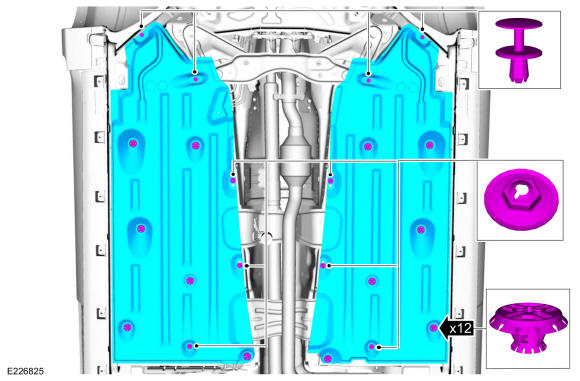

If equipped, remove the retainers and the underbody shields.

Courtesy of FORD MOTOR COMPANY
NOTE: Discard the specified component. Follow local disposal regulations.

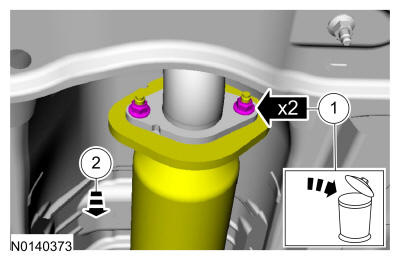

Remove and discard the nuts, position aside the exhaust.

Torque:

35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

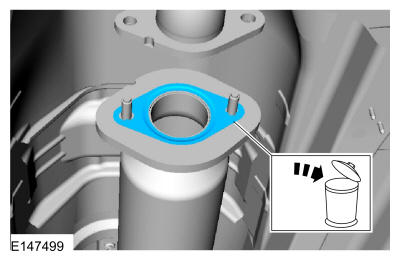

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

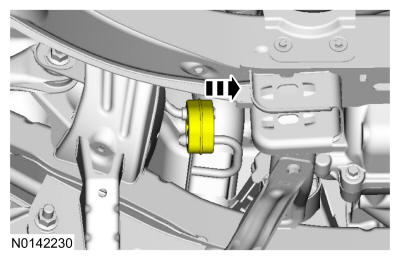

Detach the exhaust isolator.

Courtesy of FORD MOTOR COMPANY

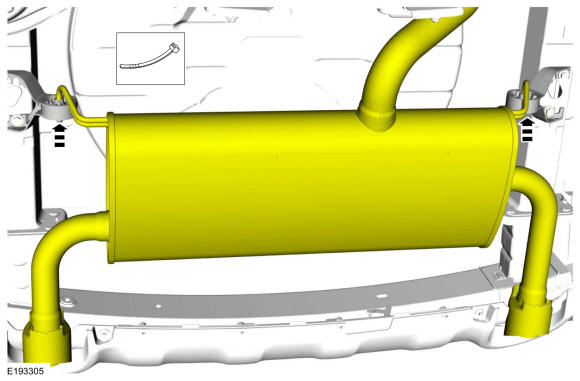

Detach the exhaust from the isolators and position aside.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the bolts and the bracket.
Torque:

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

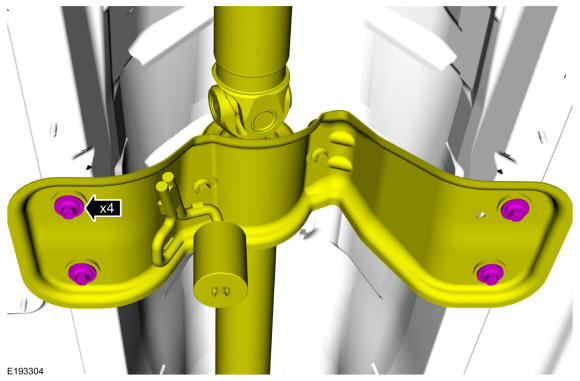

If equipped. Remove the bolts from the center bearing support.
Torque:

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

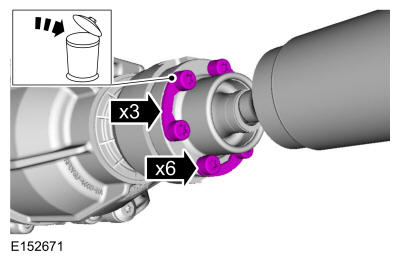

Remove and discard the Rear Drive Unit (RDU) pinion flange bolt and washer assemblies.
Torque:

26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

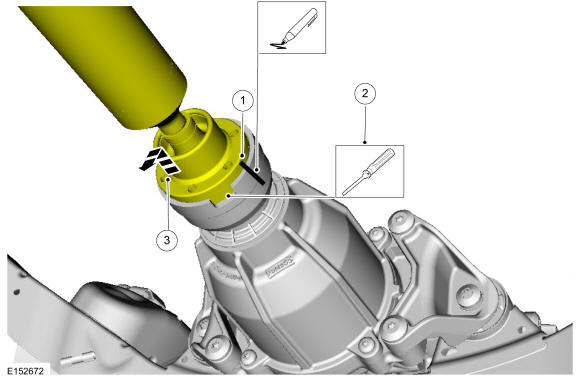

1. Index mark the rear driveshaft flange.
2. Separate the driveshaft CV flange from the RDU flange using a flat-blade.
3. NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.

  Position the rear of the driveshaft aside and support with mechanics wire.
Courtesy of FORD MOTOR COMPANY

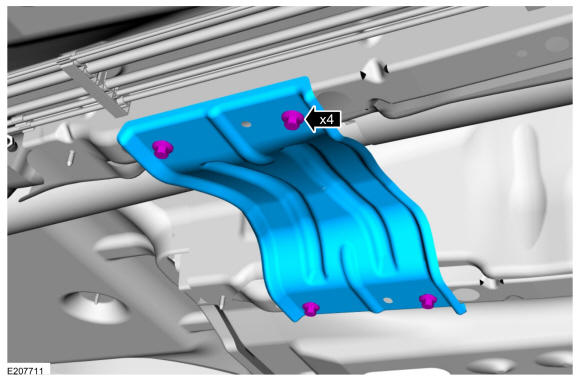

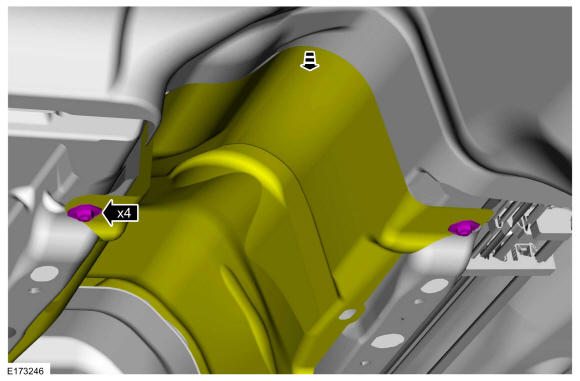

Remove the nuts and position the heat shield aside.

Courtesy of FORD MOTOR COMPANY

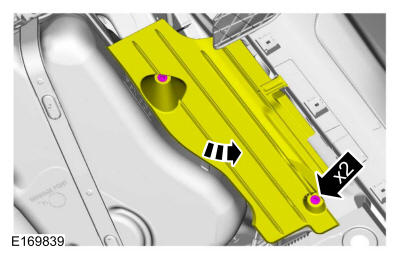

Remove the retainers and position the RH splash shield aside.

Courtesy of FORD MOTOR COMPANY

NOTE: It may be necessary to position the exhaust downward to allow enough clearance for the shield to be removed.

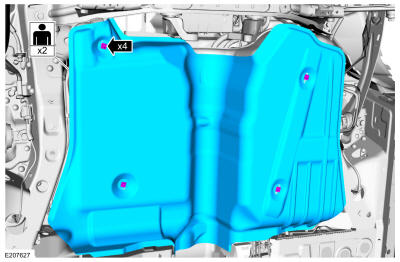

With the help of an assistant, remove the nuts and the heat shield.

Courtesy of FORD MOTOR COMPANY

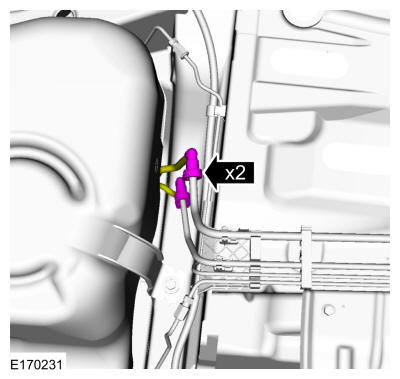

Disconnect the quick release couplings. Refer to: Quick Release Coupling 2.3L EcoBoost .

Courtesy of FORD MOTOR COMPANY

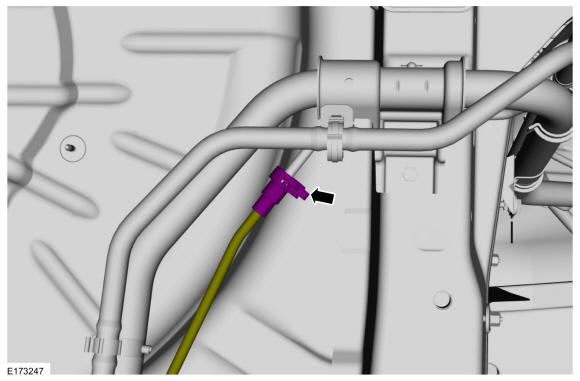

Disconnect the quick release coupling. Refer to: Quick Release Coupling 2.3L EcoBoost .

Courtesy of FORD MOTOR COMPANY

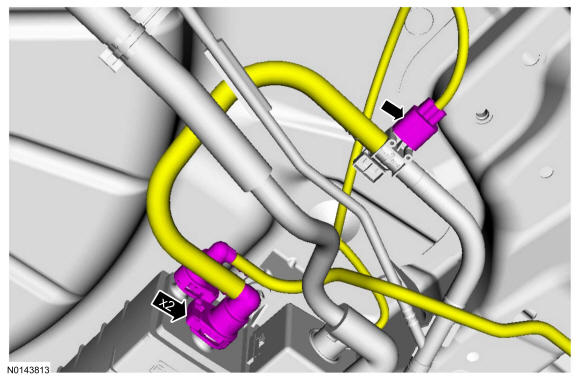

Disconnect the electrical connector and the quick release couplings. Refer to: Quick Release Coupling 2.3L EcoBoost .

Courtesy of FORD MOTOR COMPANY

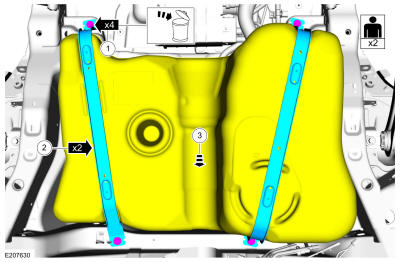

- Support the fuel tank and remove and discard the bolts.
  Torque:

  18 lb.ft (25 Nm)
- Remove the straps.
- Partially lower the fuel tank.
Courtesy of FORD MOTOR COMPANY

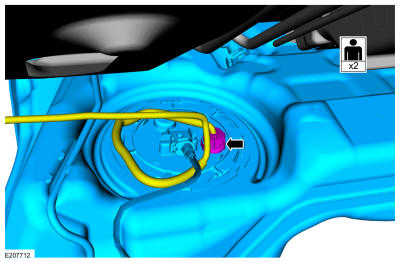

With the help of an assistant, disconnect the electrical connector and remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
