Starter Motor: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- Refer to: Jacking and Lifting - Overview .

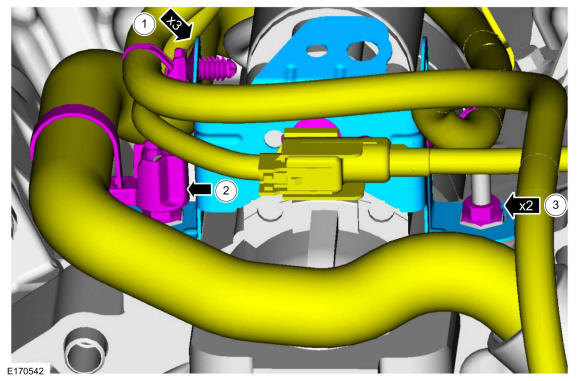

- If equipped.
- Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
