Ignition Coil-On-Plug: Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
- Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
- After all of the grommets have been released from the studs, remove the appearance cover from the engine.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.0L EcoBoost .
-
NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

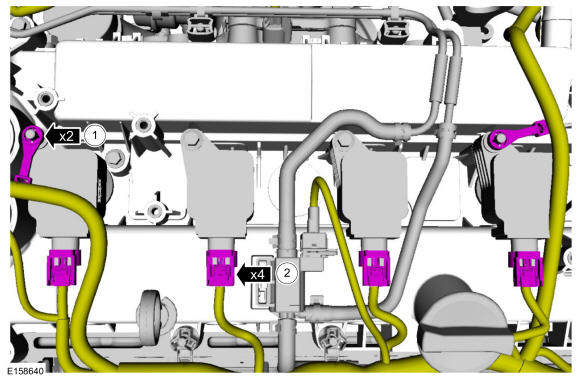

Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
-

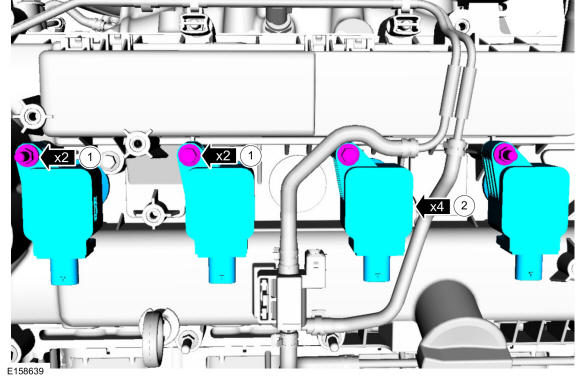

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
