Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula.
    G00468730Courtesy of FORD MOTOR COMPANY

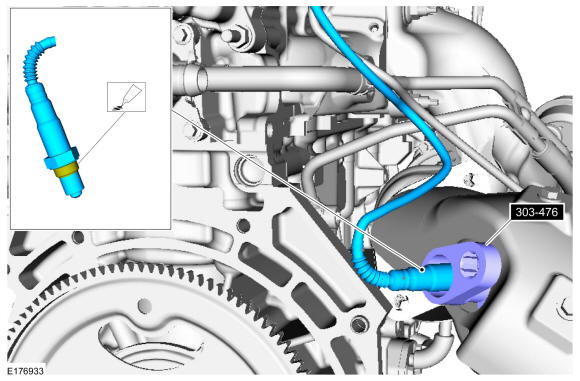

    Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

    Torque: 35 lb.ft (48 Nm)

    GFD394460Courtesy of FORD MOTOR COMPANY

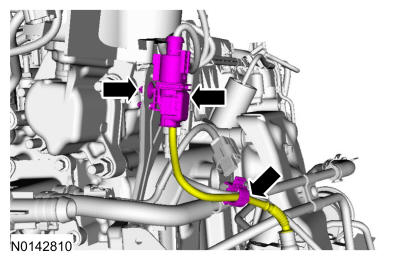

    GFD394438Courtesy of FORD MOTOR COMPANY
  2. Refer to: Air Cleaner Outlet Pipe 2.3L EcoBoost .

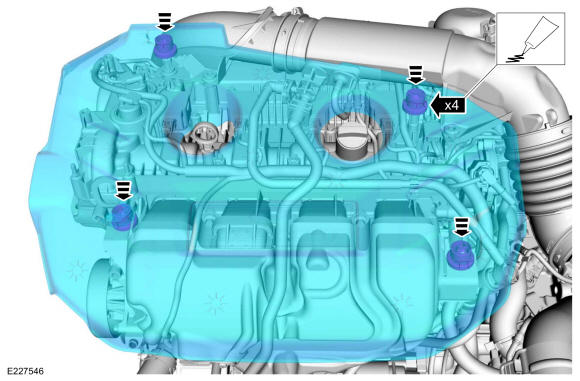

    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
GFD393505Courtesy of FORD MOTOR COMPANY
