Boost Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
    GFD393959Courtesy of FORD MOTOR COMPANY

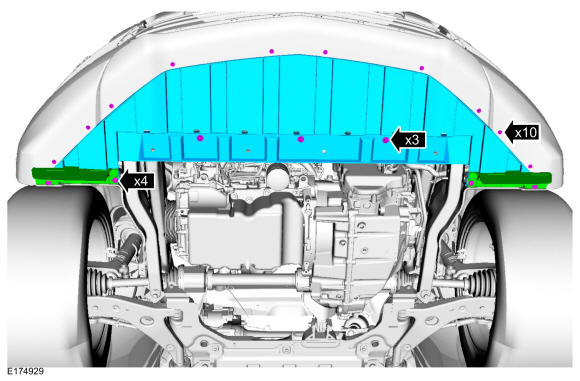

    GFD394450Courtesy of FORD MOTOR COMPANY

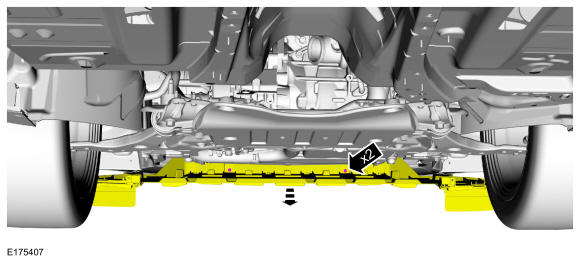

    GFD394130Courtesy of FORD MOTOR COMPANY

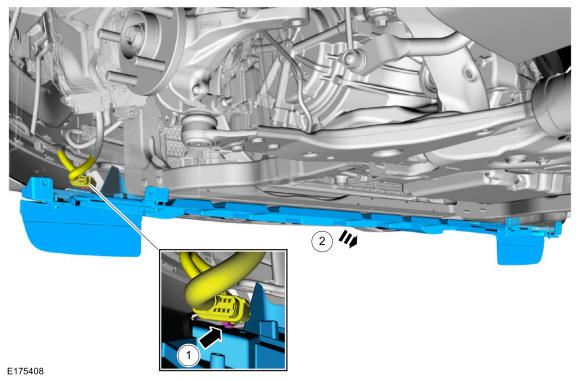

    GFD394131Courtesy of FORD MOTOR COMPANY
  2. Torque:

    27 lb.in (3 Nm)

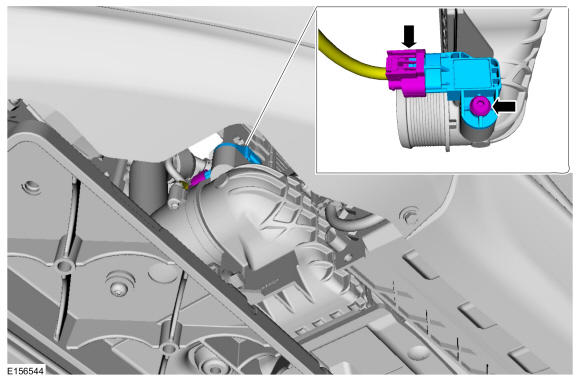

GFD394451Courtesy of FORD MOTOR COMPANY
