Turbocharger Coolant Supply Tube: Installation

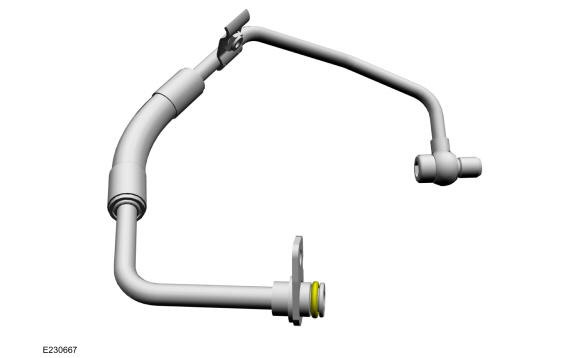

Install the new turbocharger coolant tube sealing washers. Install the new turbocharger coolant tube O-ring seal and lubricate with clean engine coolant.

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

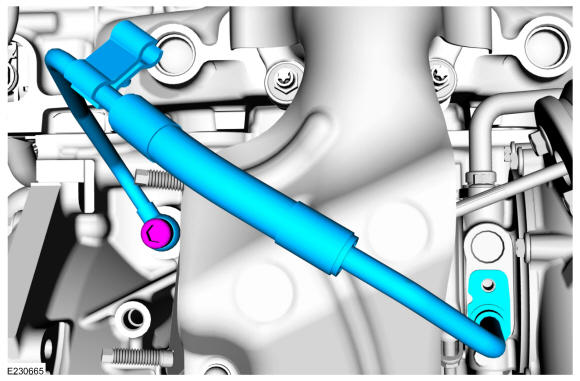

- Fit the O-ring end of the turbocharger coolant tube to the turbocharger.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Install and tighten the turbocharger coolant tube-to-block bolt.
  Torque: 27 lb.ft (37 Nm)
Courtesy of FORD MOTOR COMPANY
Install the new turbocharger gasket.

Courtesy of FORD MOTOR COMPANY
Install the catalytic converter, then install and tighten the catalytic converter retaining nuts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install and tighten the catalytic converter bracket retaining nuts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install and tighten the exhaust isolator bracket bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the stone guard and the retainers.
- Install the underbody shield and the retainers.
Courtesy of FORD MOTOR COMPANY
Install the Turbocharger Coolant Return Tube. Refer to: Turbocharger Coolant Return Tube 2.0L EcoBoost .
