Power Distribution

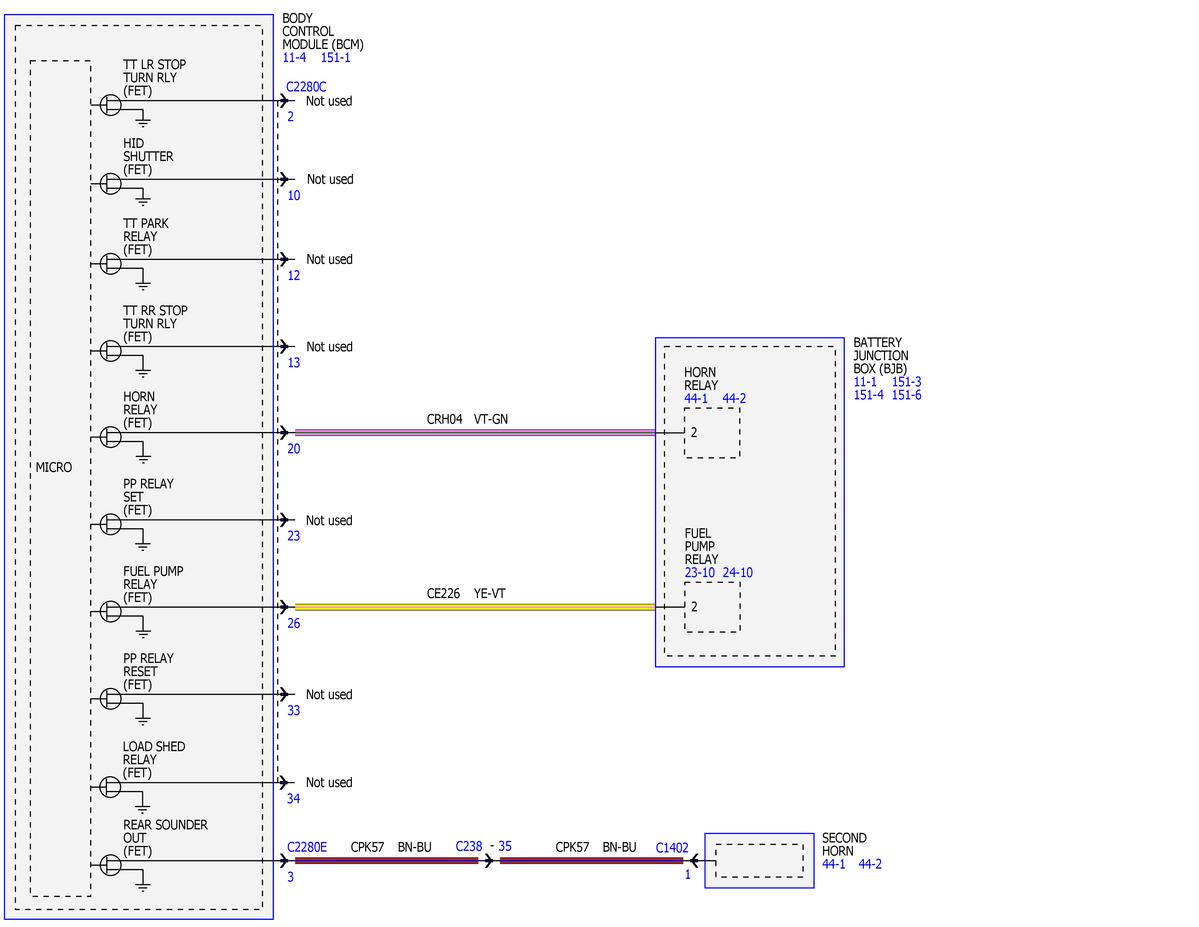

Fig 1: Power Distribution Wiring Diagram (1 Of 43)

GFDWR58914

Courtesy of FORD MOTOR COMPANY

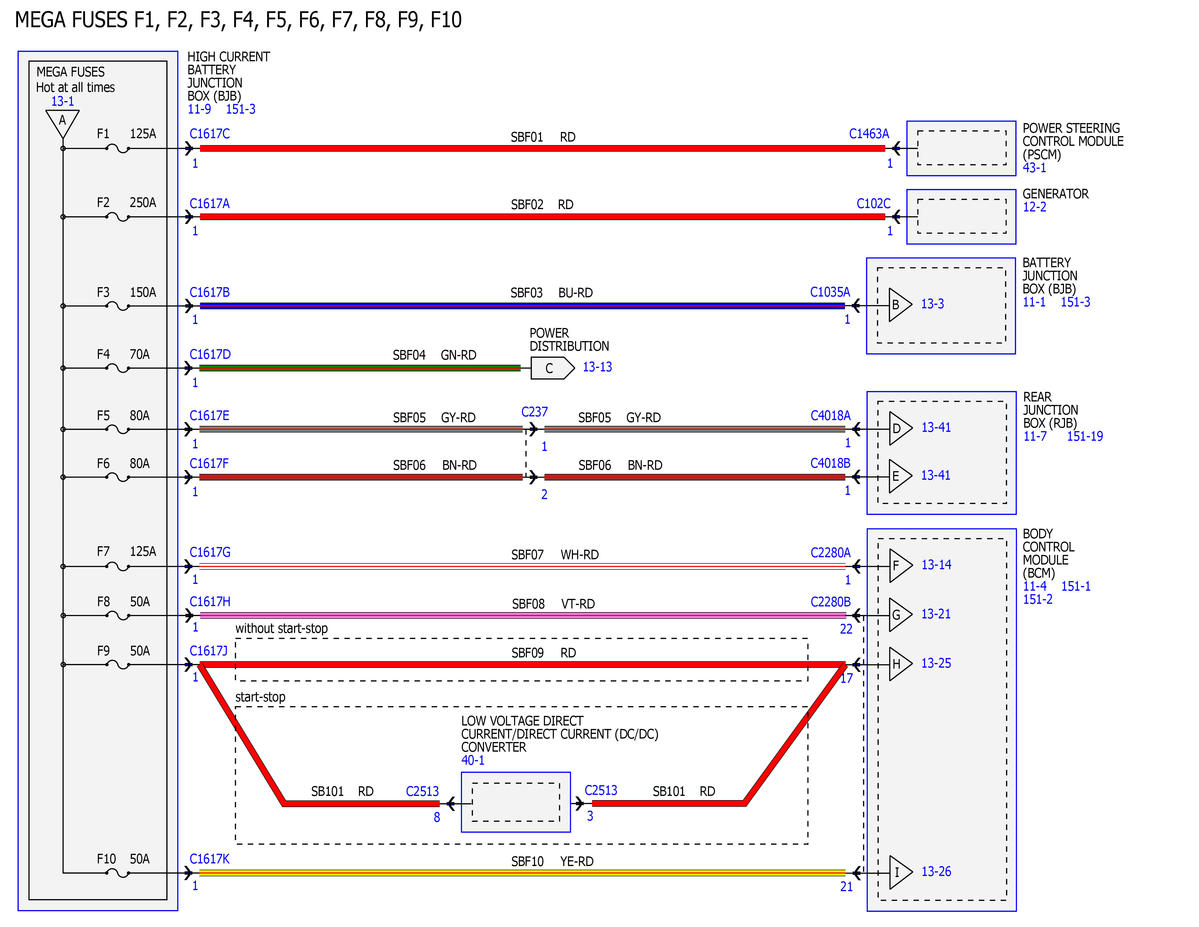

Fig 2: Power Distribution Wiring Diagram (2 Of 43)

GFDWR58915

Courtesy of FORD MOTOR COMPANY

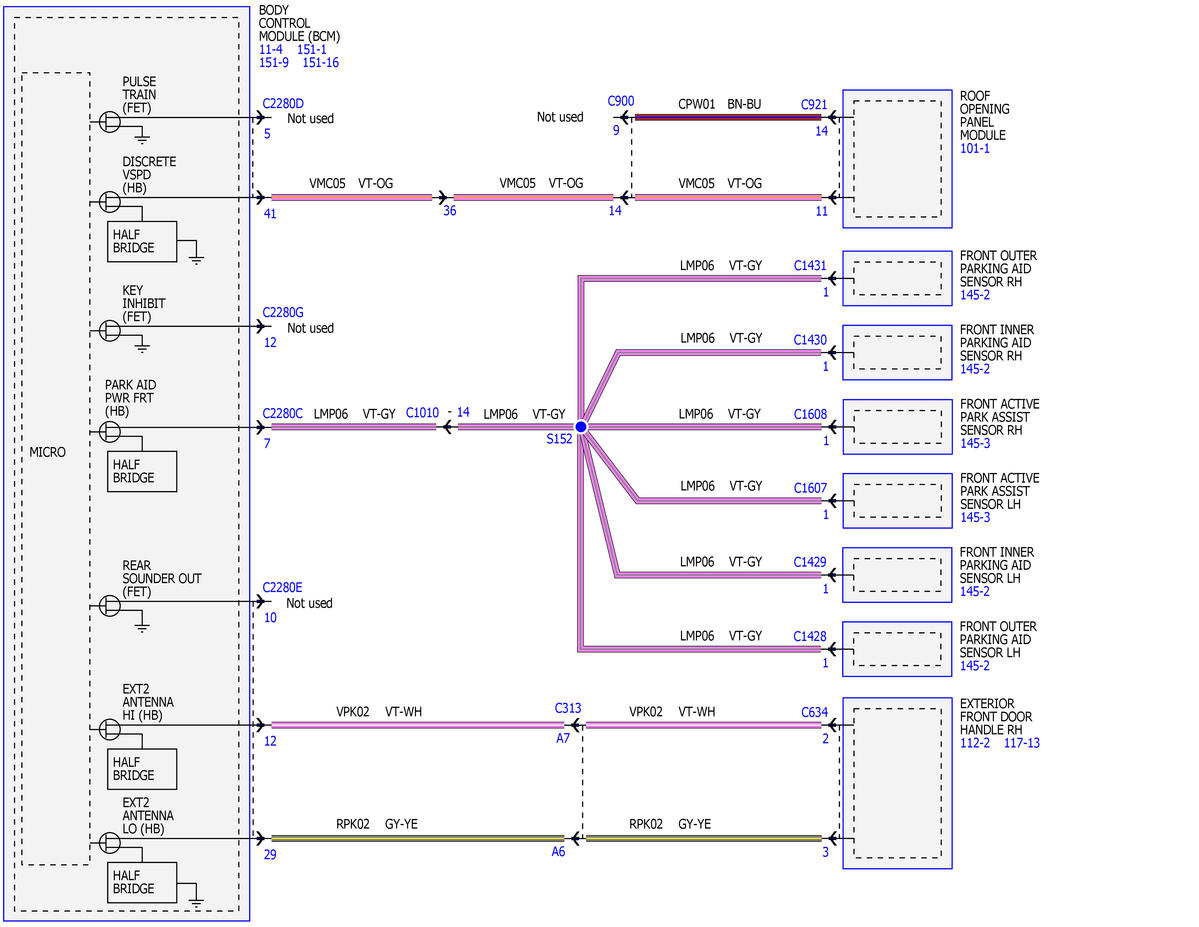

Fig 3: Power Distribution Wiring Diagram (3 Of 43)

GFDWR58916

Courtesy of FORD MOTOR COMPANY

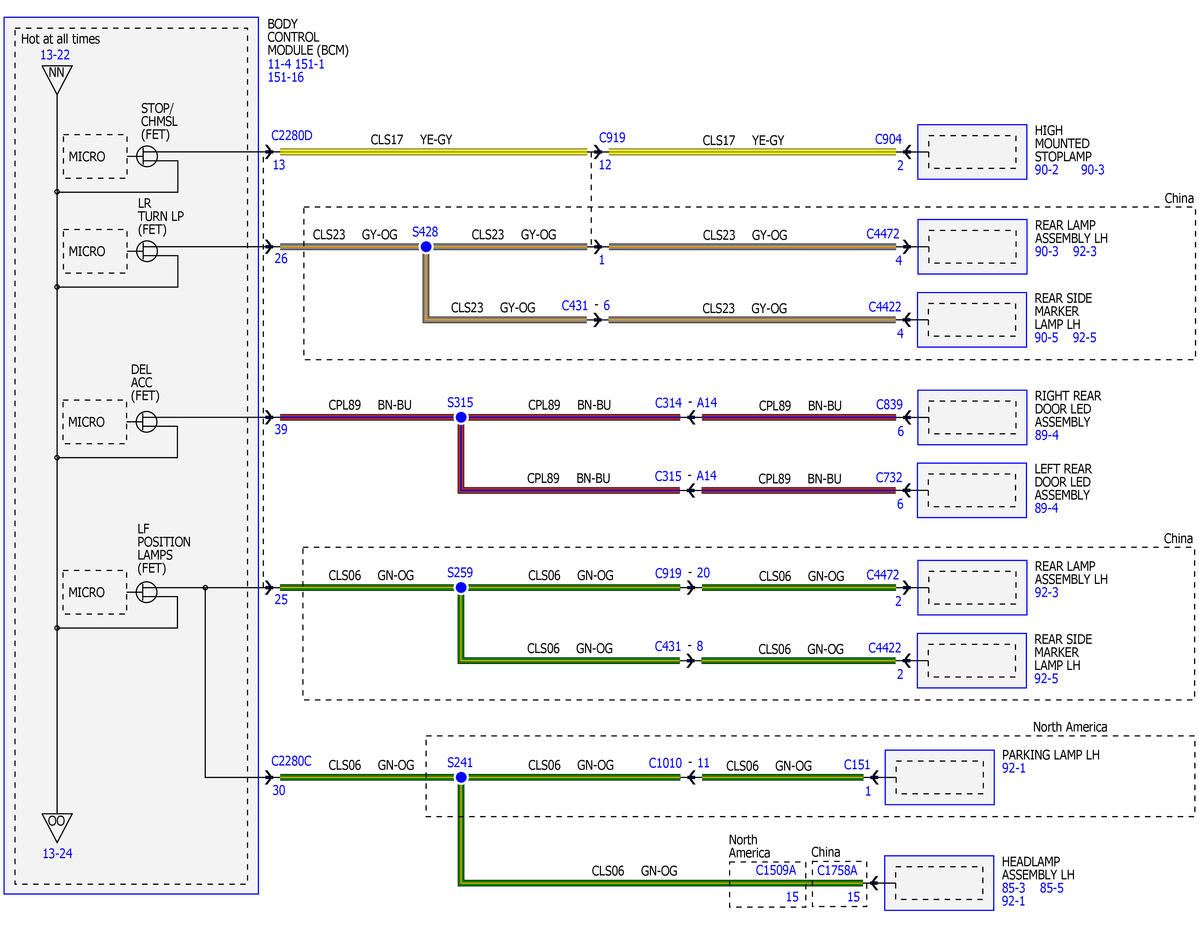

Fig 4: Power Distribution Wiring Diagram (4 Of 43)

GFDWR58917

Courtesy of FORD MOTOR COMPANY

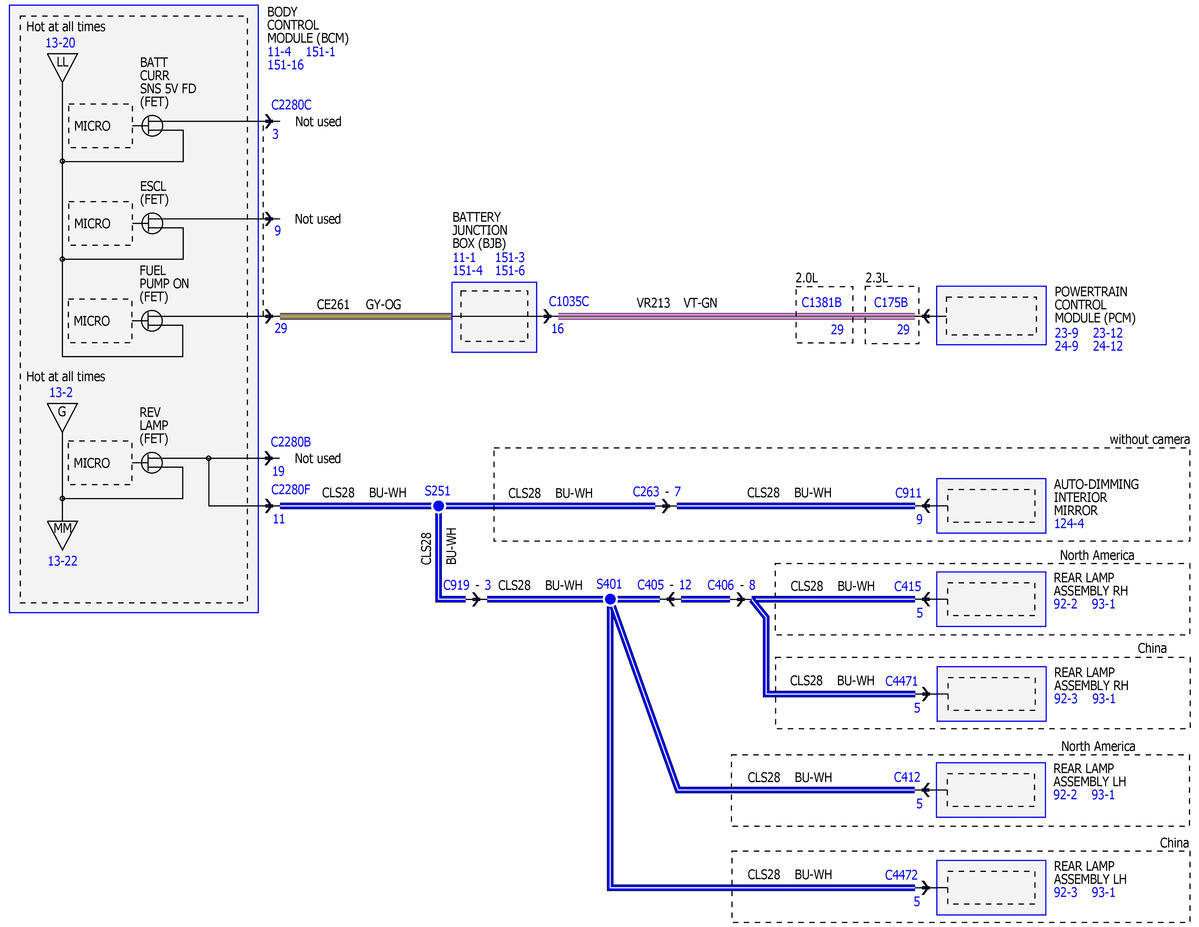

Fig 5: Power Distribution Wiring Diagram (5 Of 43)

GFDWR58918

Courtesy of FORD MOTOR COMPANY

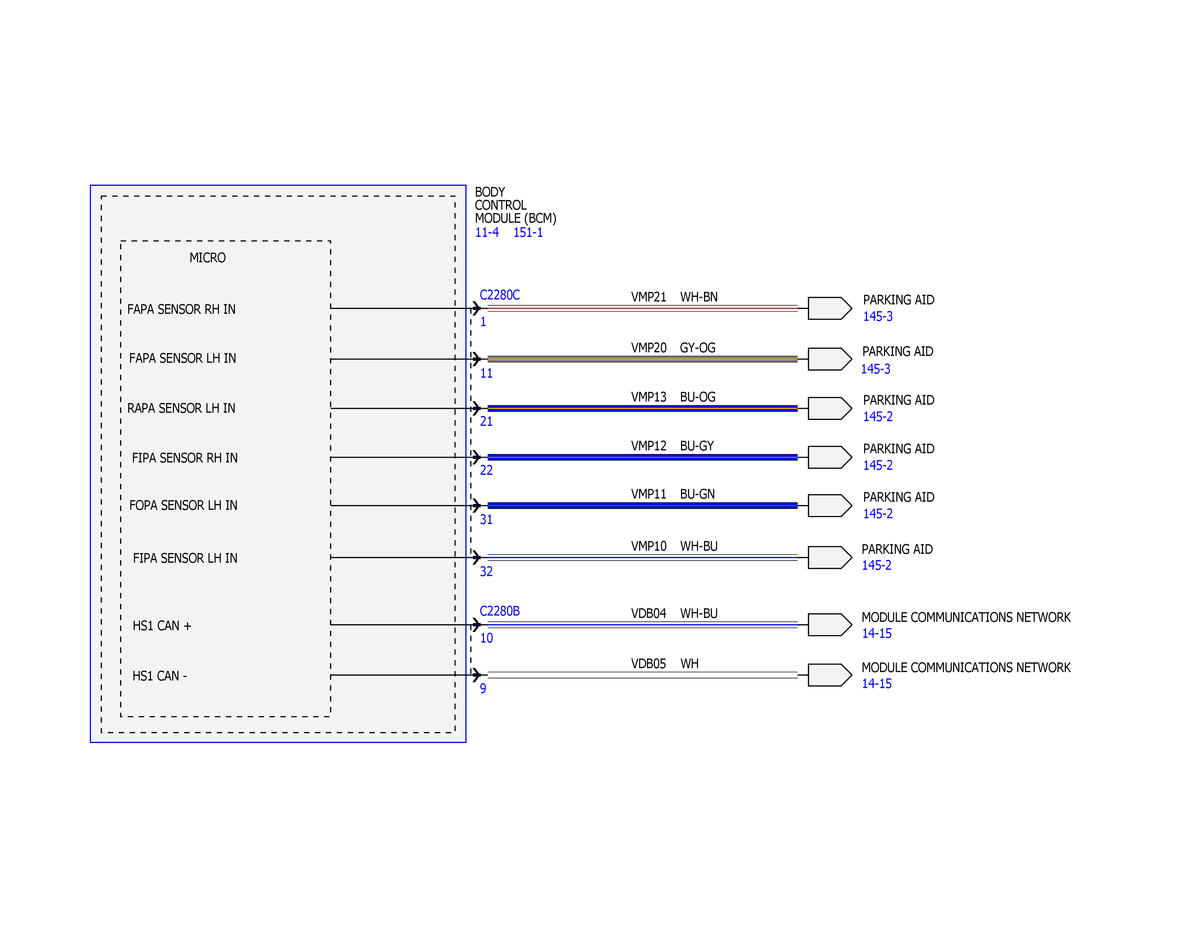

Fig 6: Power Distribution Wiring Diagram (6 Of 43)

GFDWR58919

Courtesy of FORD MOTOR COMPANY

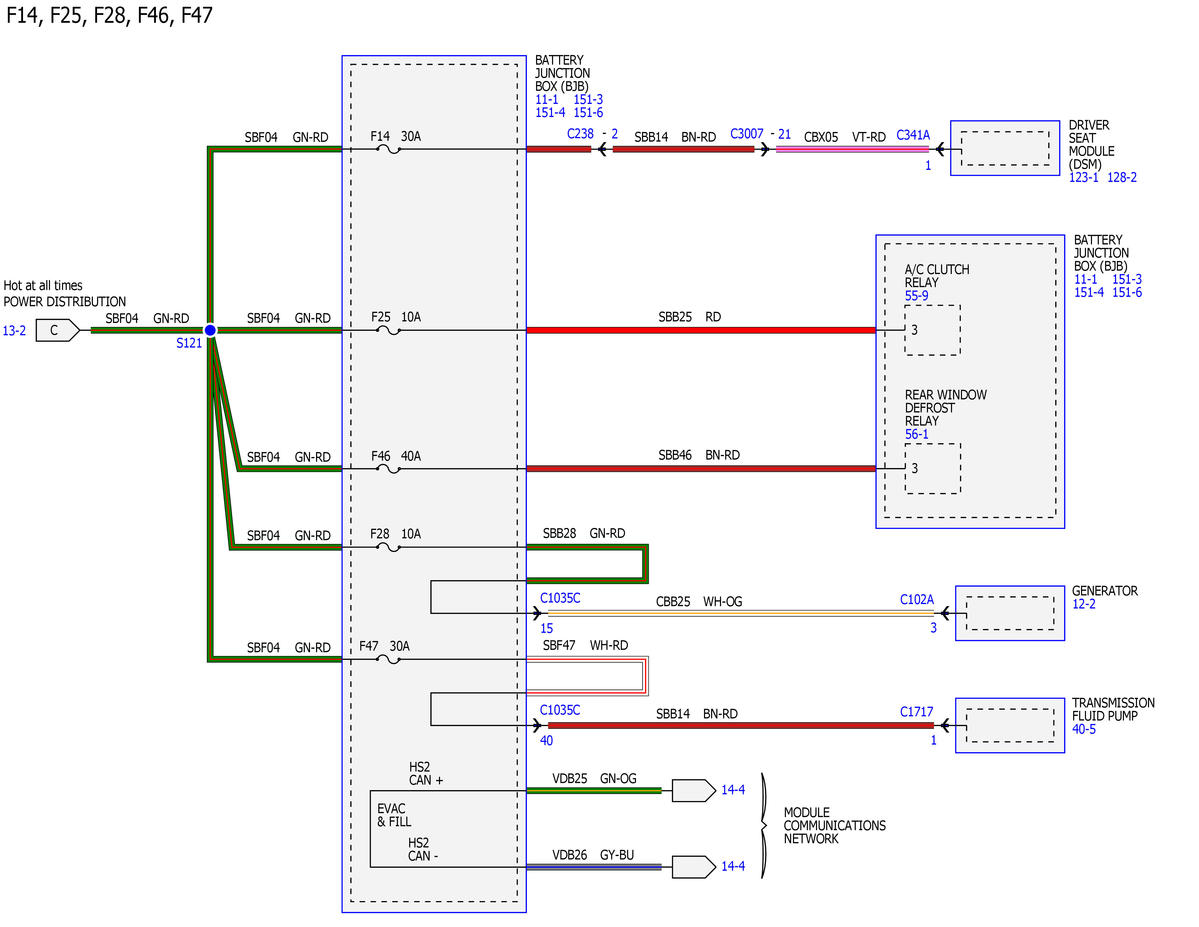

Fig 7: Power Distribution Wiring Diagram (7 Of 43)

GFDWR58920

Courtesy of FORD MOTOR COMPANY

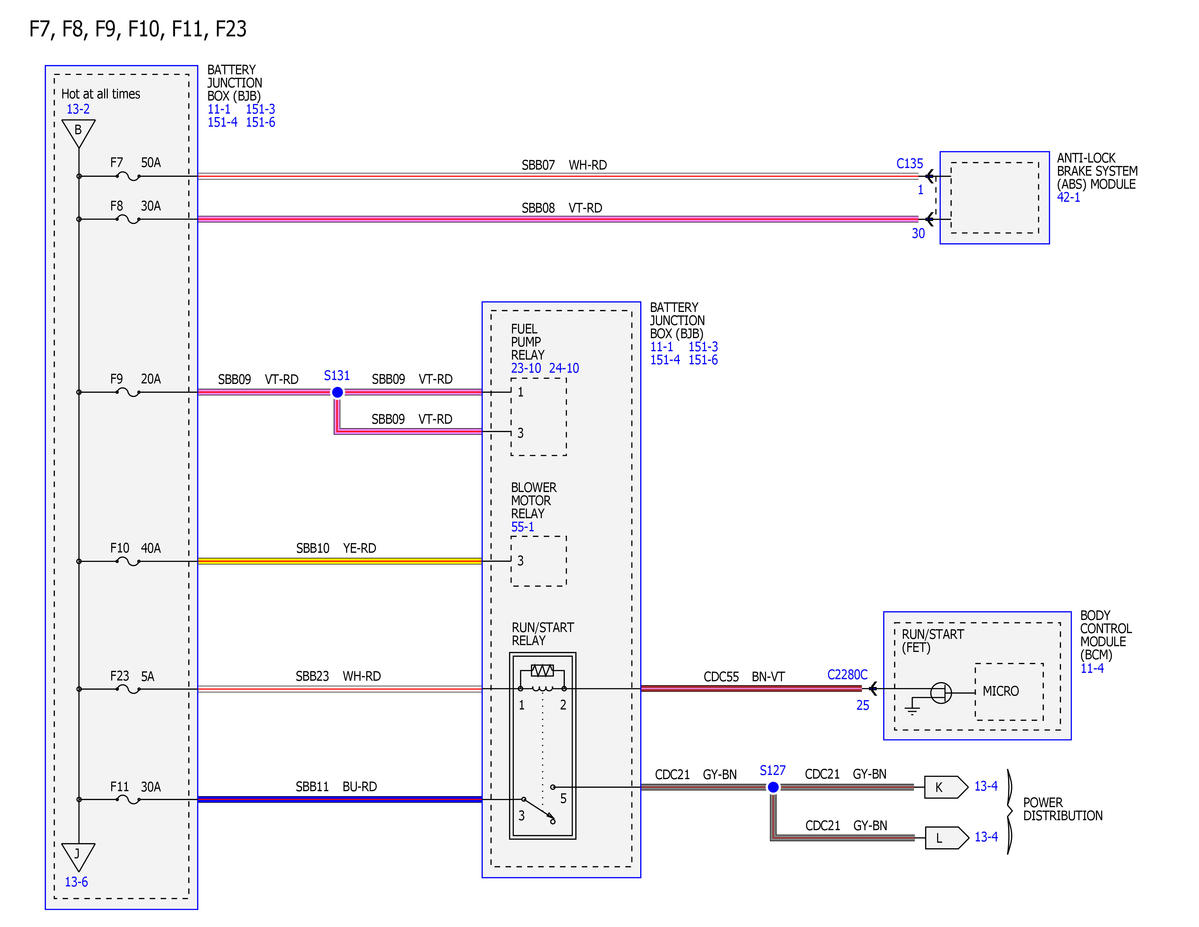

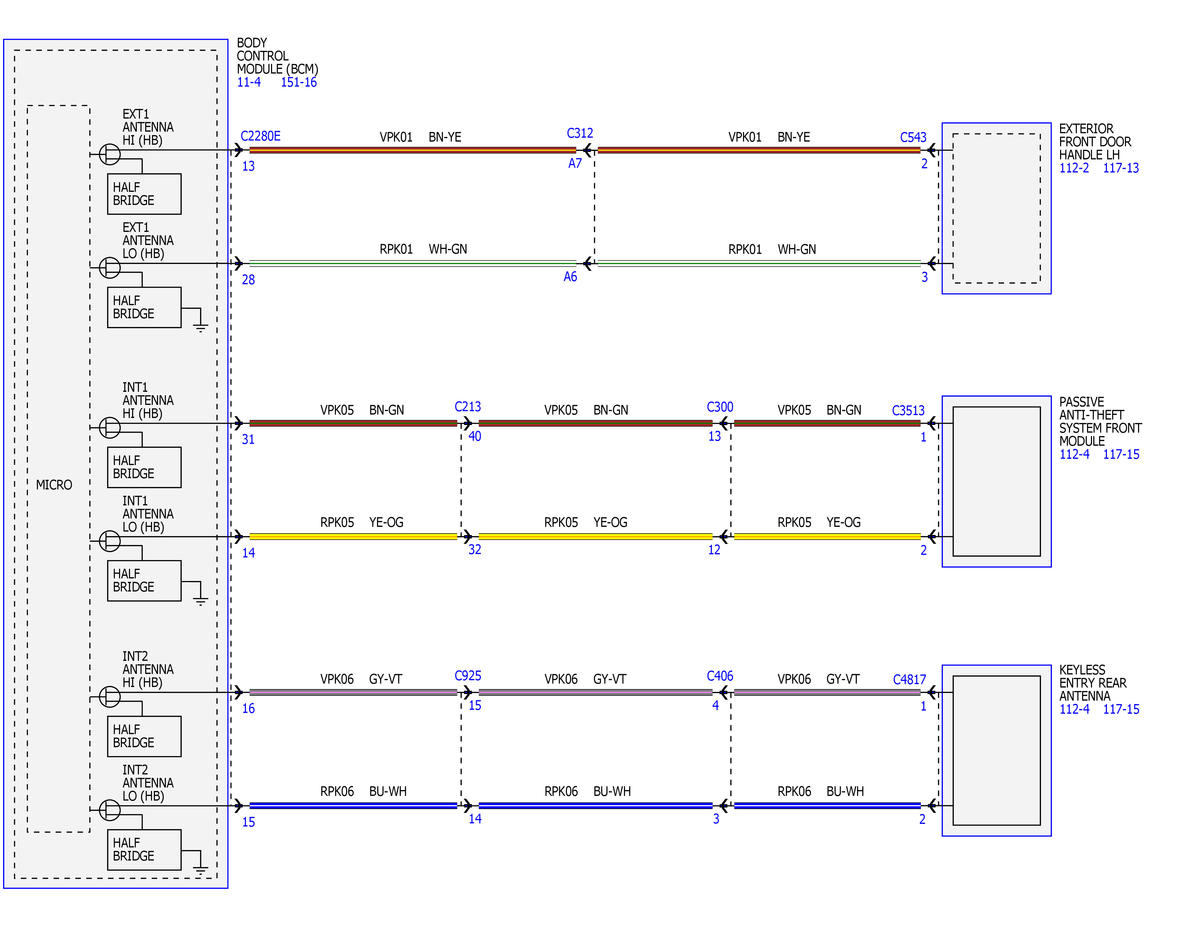

Fig 8: Power Distribution Wiring Diagram (8 Of 43)

GFDWR58921

Courtesy of FORD MOTOR COMPANY

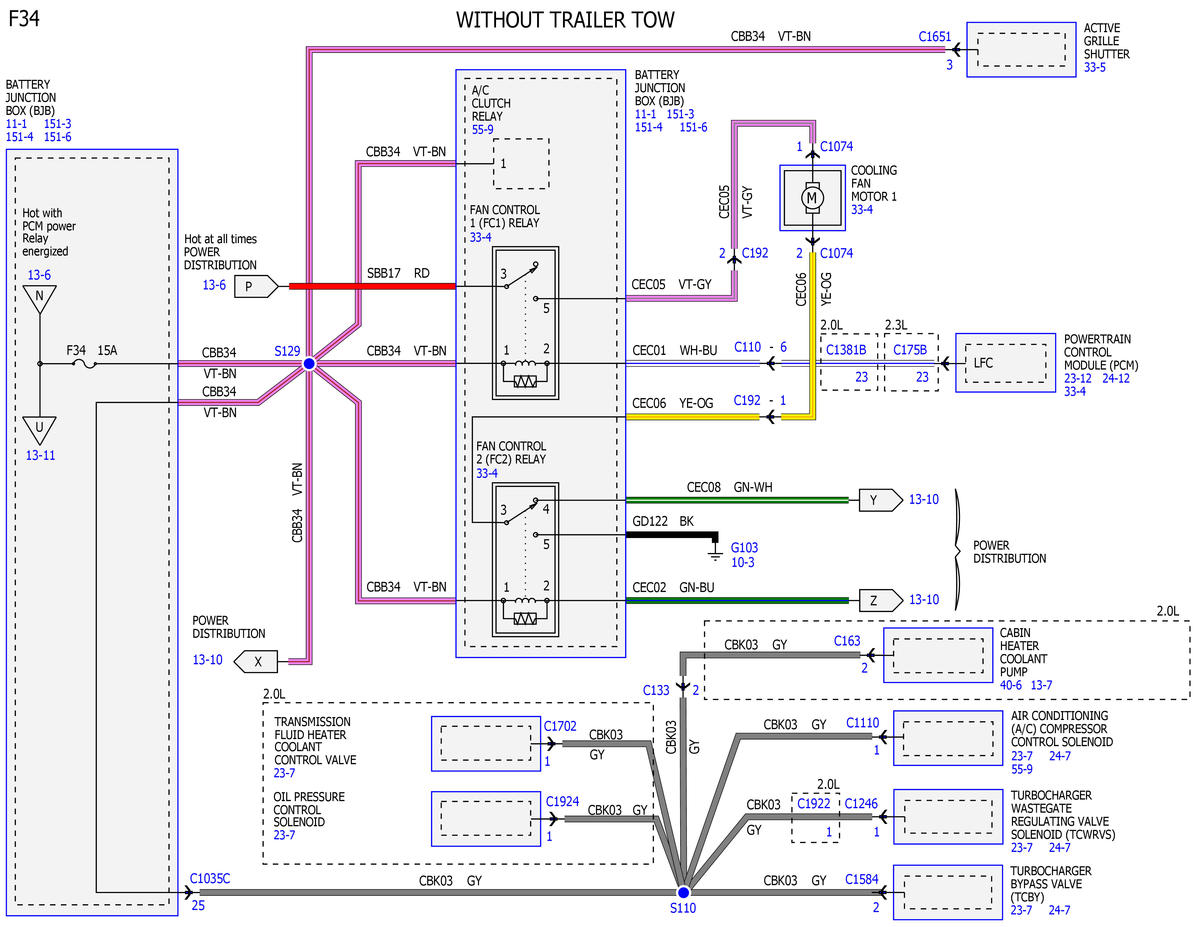

Fig 9: Power Distribution Wiring Diagram (9 Of 43)

GFDWR58922

Courtesy of FORD MOTOR COMPANY

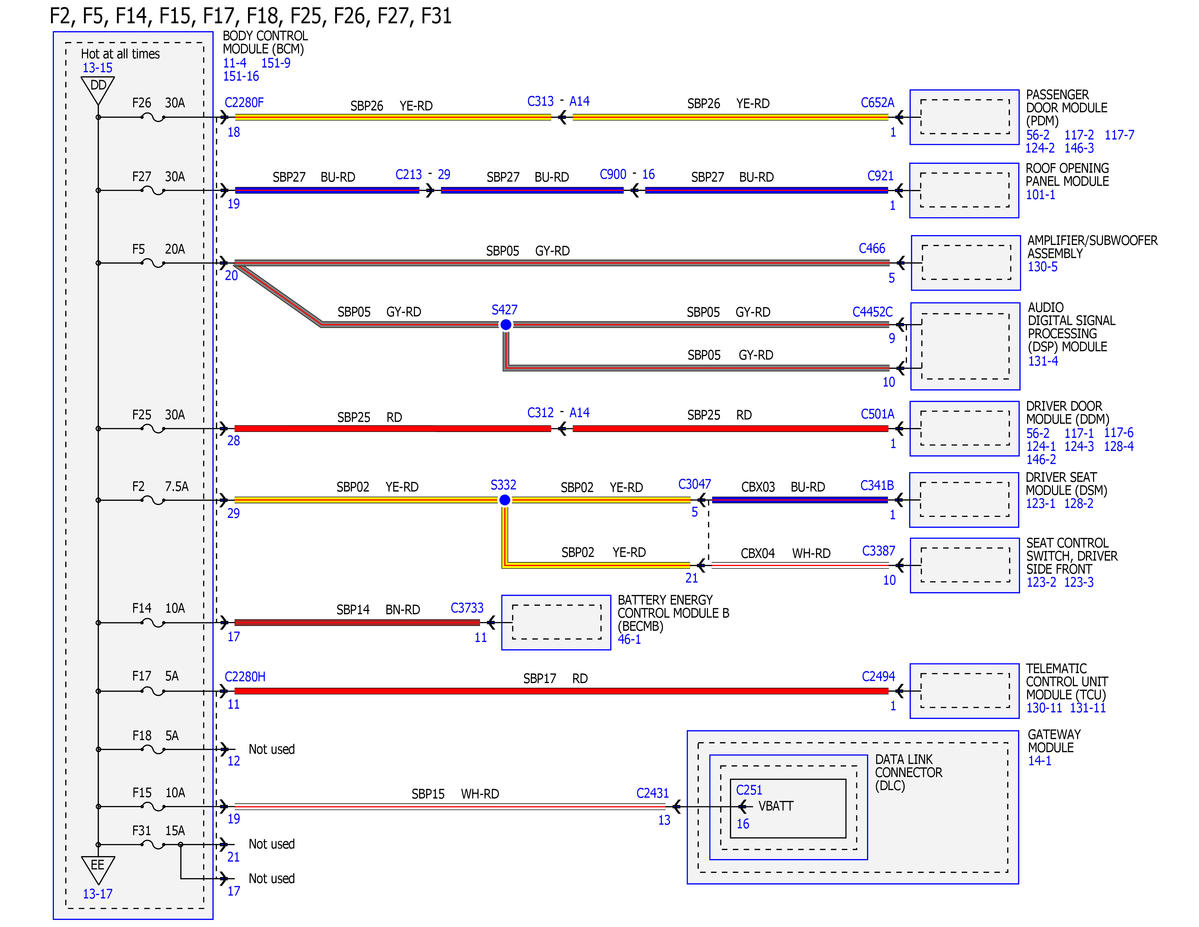

Fig 10: Power Distribution Wiring Diagram (10 Of 43)

GFDWR58923

Courtesy of FORD MOTOR COMPANY

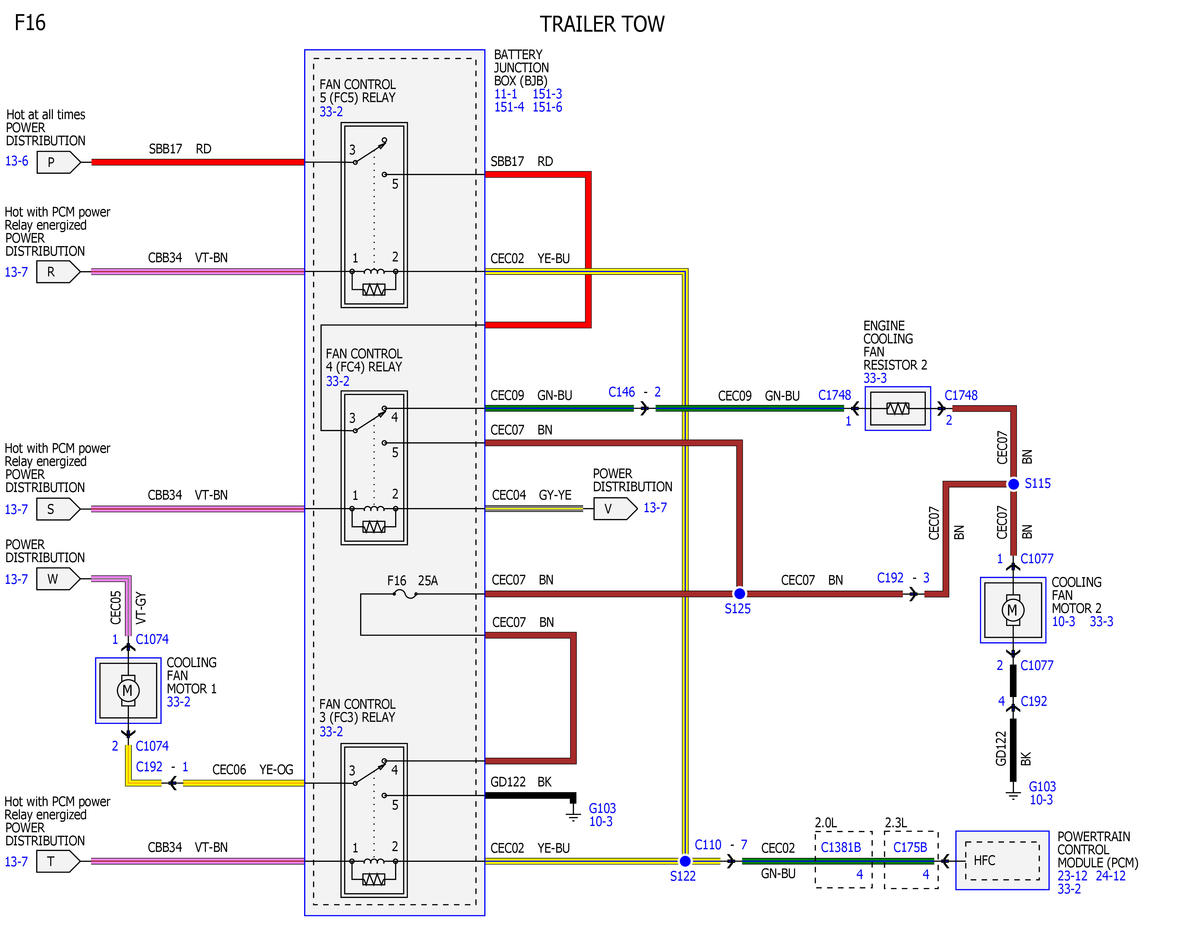

Fig 11: Power Distribution Wiring Diagram (11 Of 43)

GFDWR58924

Courtesy of FORD MOTOR COMPANY

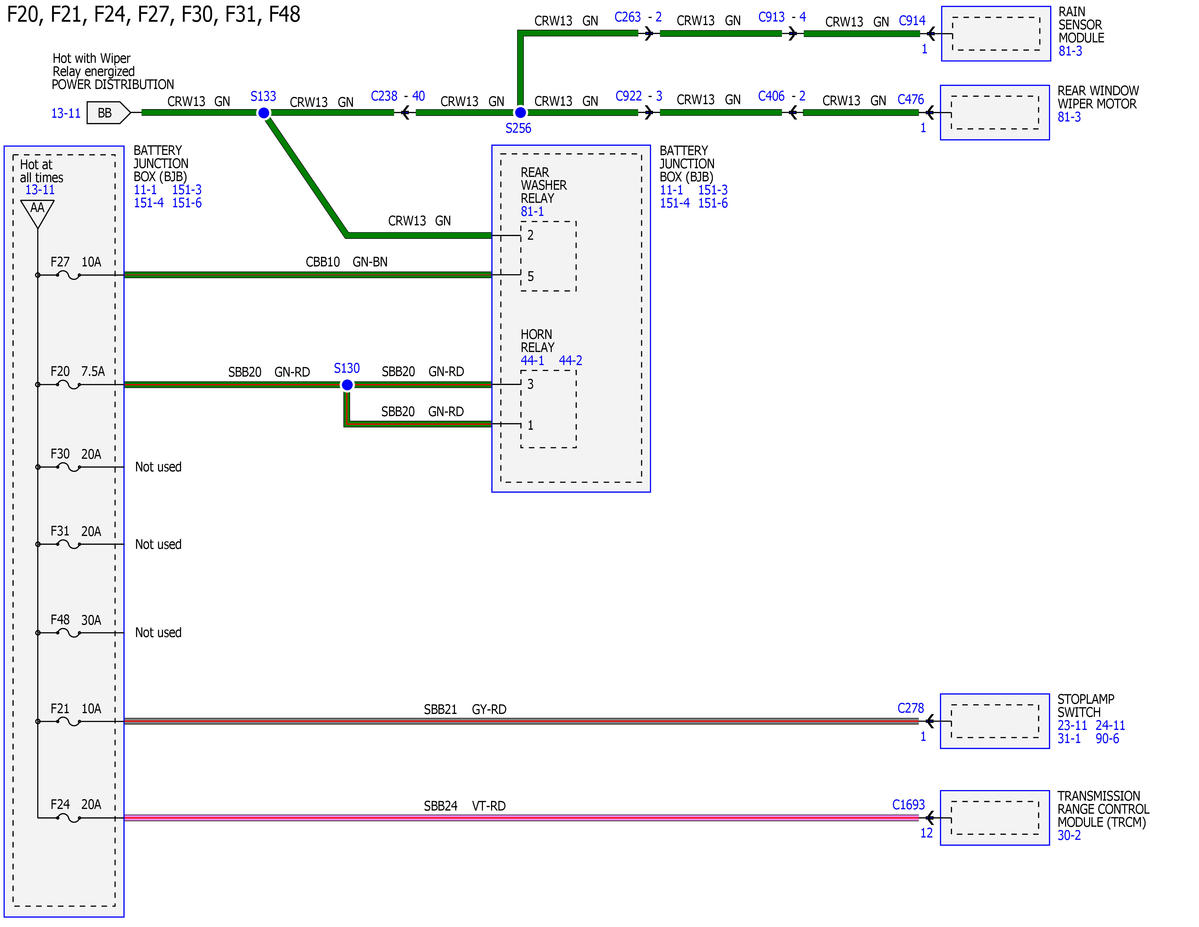

Fig 12: Power Distribution Wiring Diagram (12 Of 43)

GFDWR58925

Courtesy of FORD MOTOR COMPANY

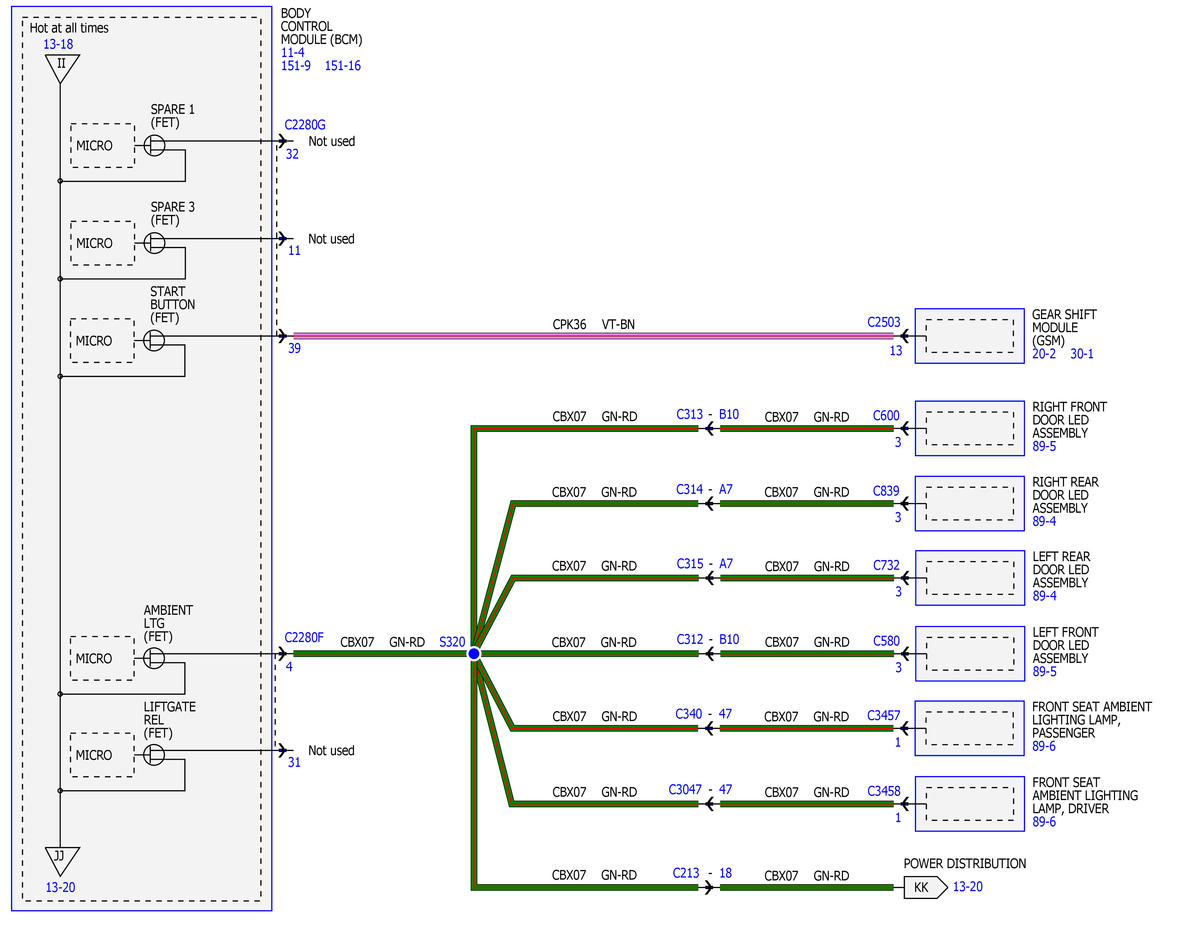

Fig 13: Power Distribution Wiring Diagram (13 Of 43)

GFDWR58926

Courtesy of FORD MOTOR COMPANY

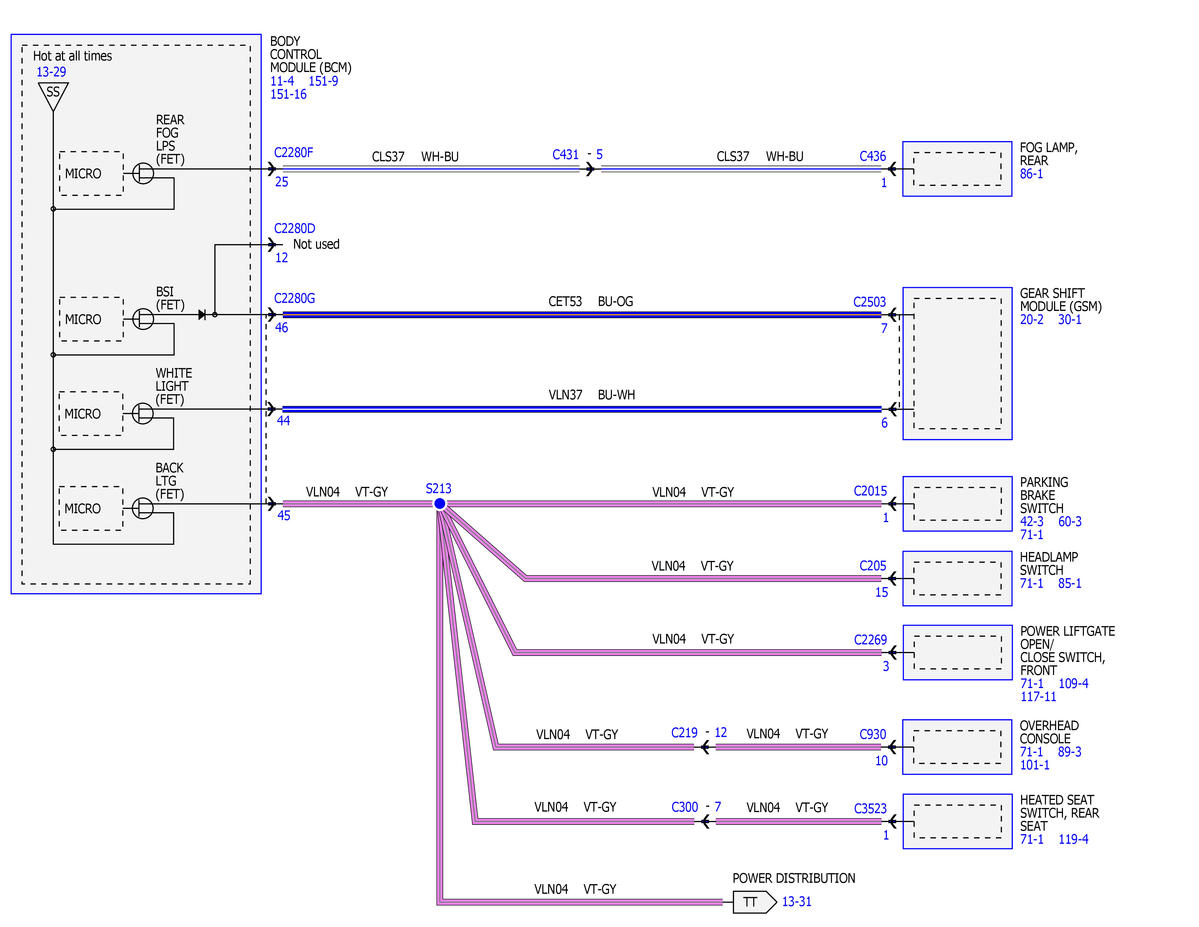

Fig 14: Power Distribution Wiring Diagram (14 Of 43)

GFDWR58927

Courtesy of FORD MOTOR COMPANY

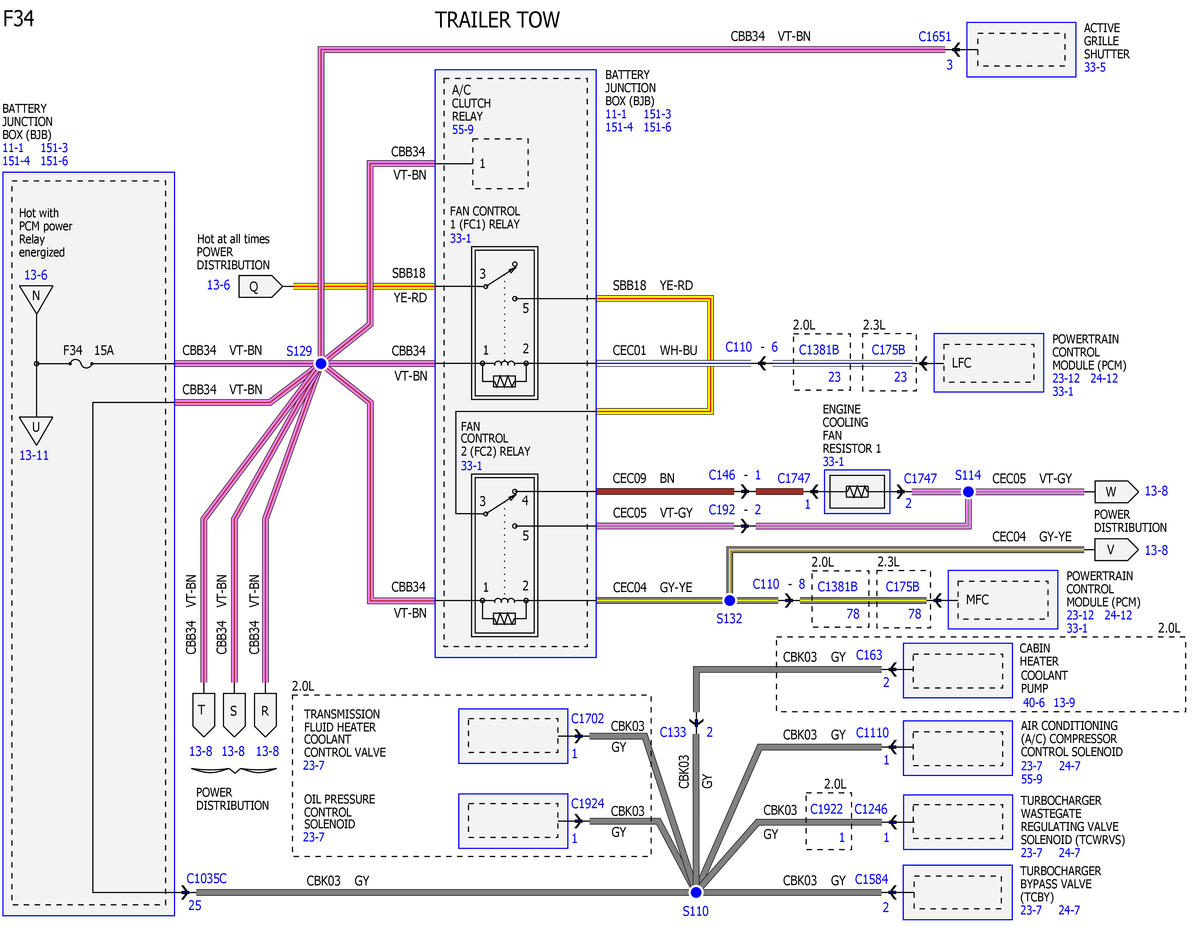

Fig 15: Power Distribution Wiring Diagram (15 Of 43)

GFDWR58928

Courtesy of FORD MOTOR COMPANY

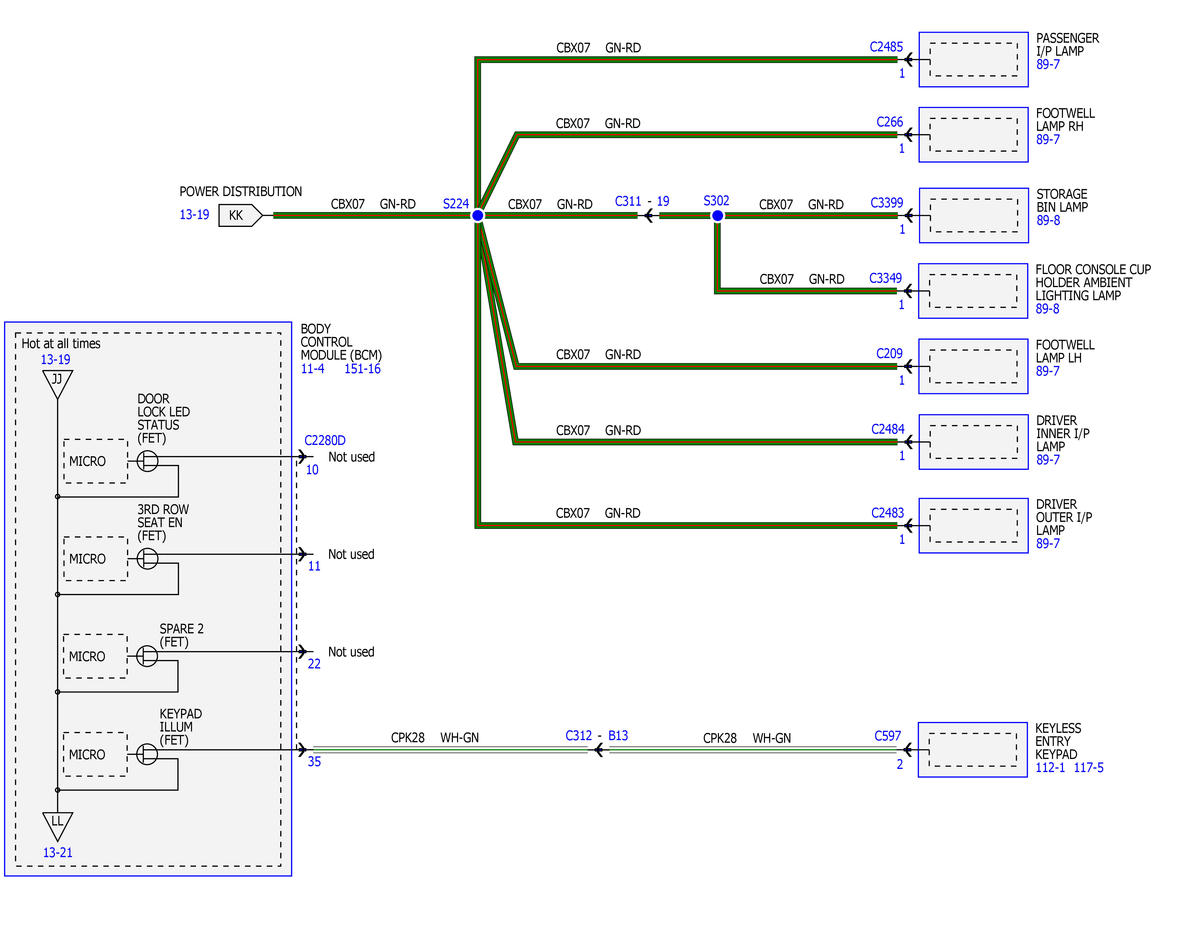

Fig 16: Power Distribution Wiring Diagram (16 Of 43)

GFDWR58929

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 Of 43)

GFDWR58930

Courtesy of FORD MOTOR COMPANY

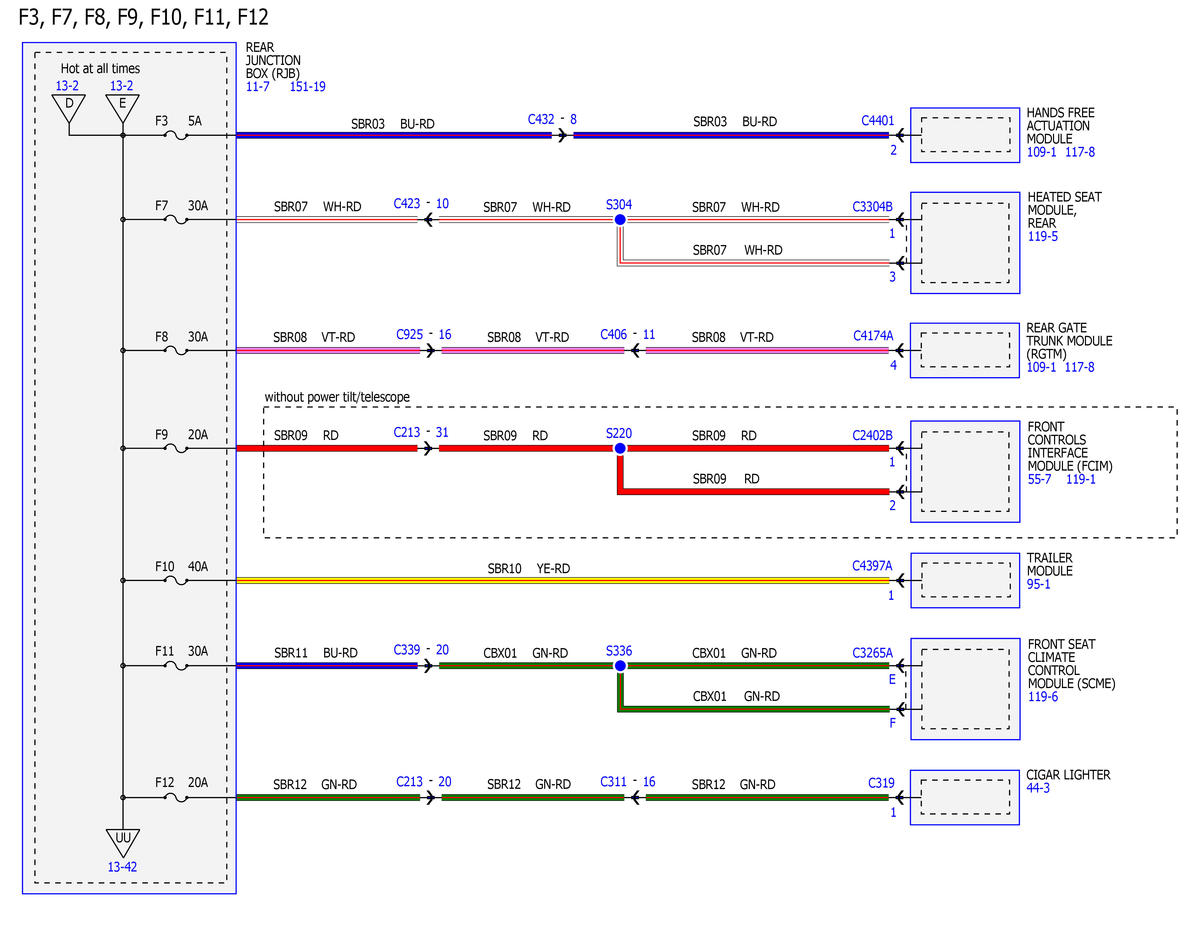

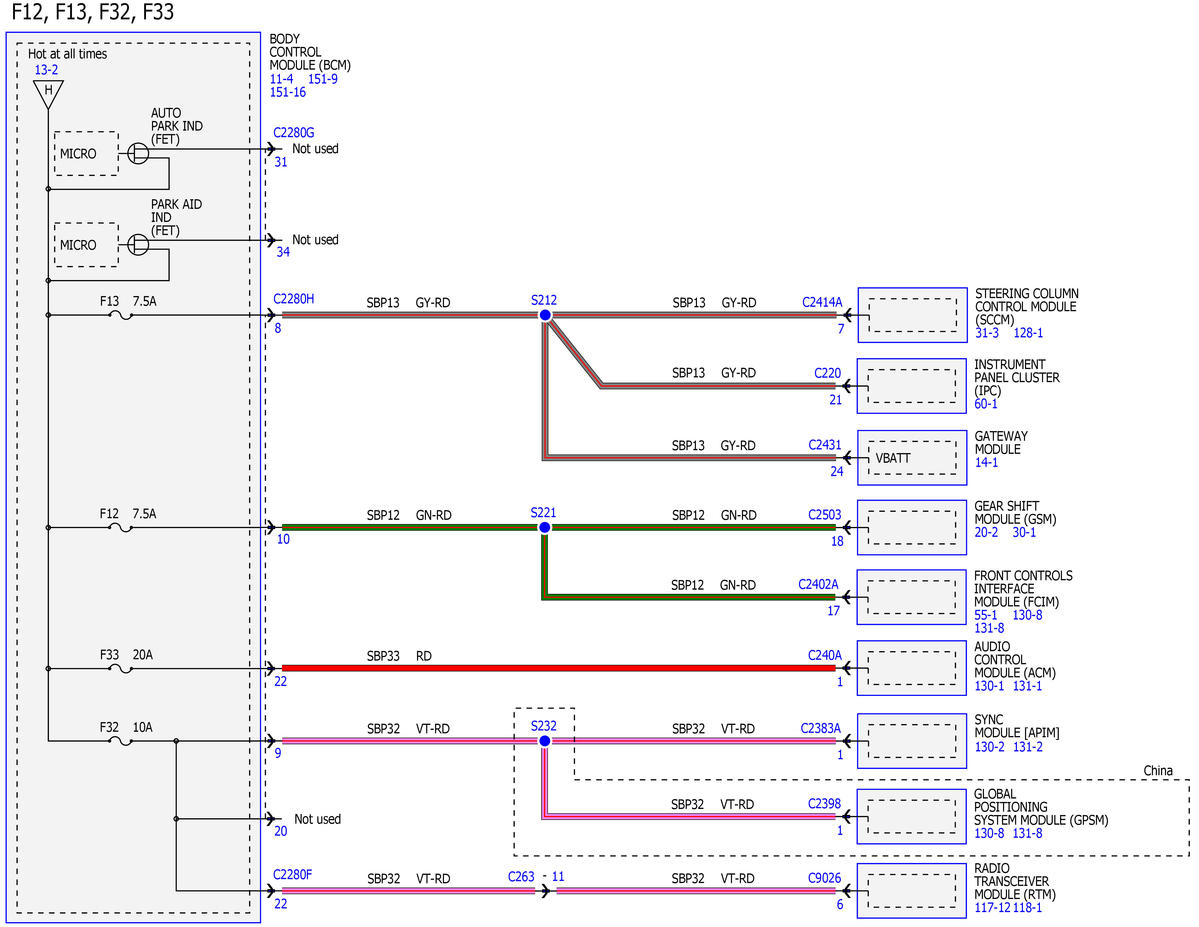

Fig 18: Power Distribution Wiring Diagram (18 Of 43)

GFDWR58931

Courtesy of FORD MOTOR COMPANY

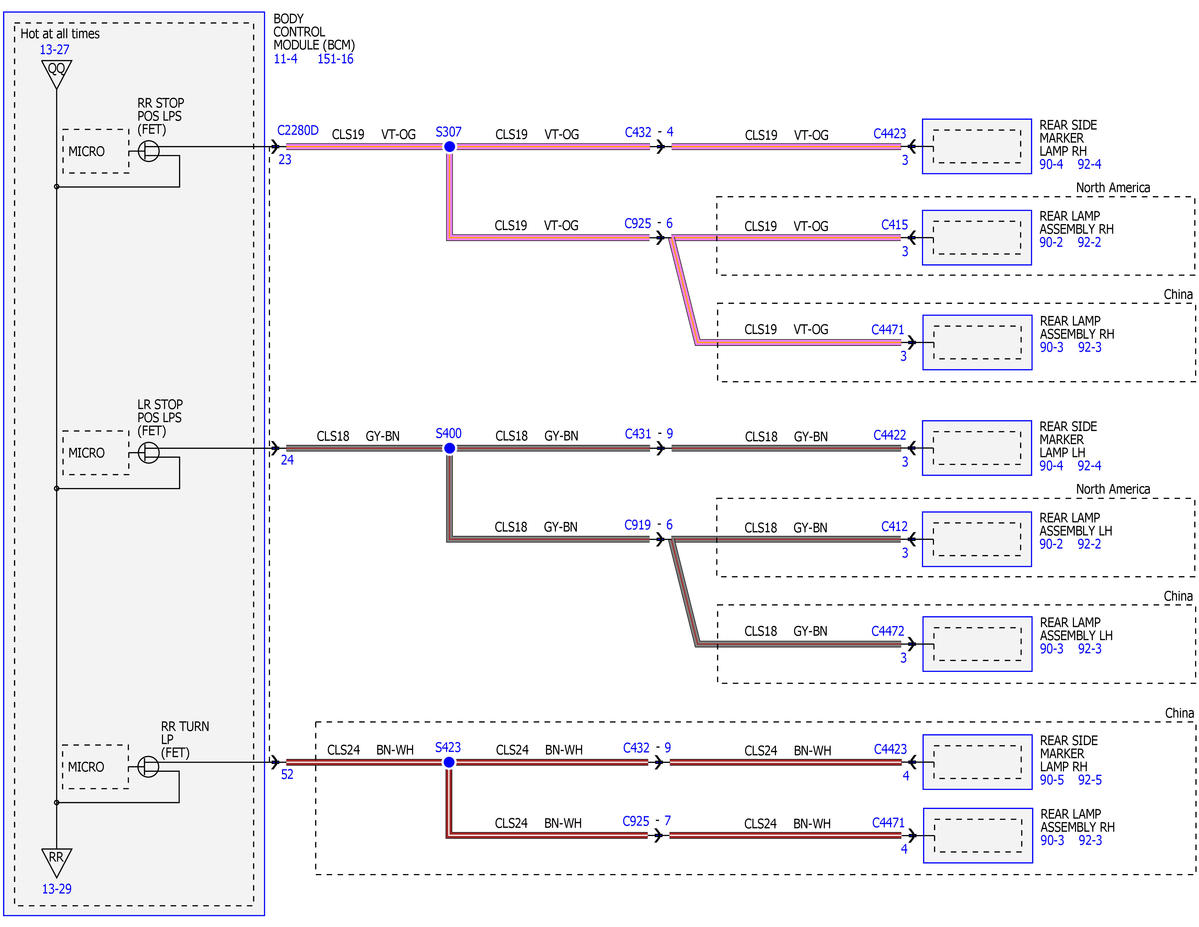

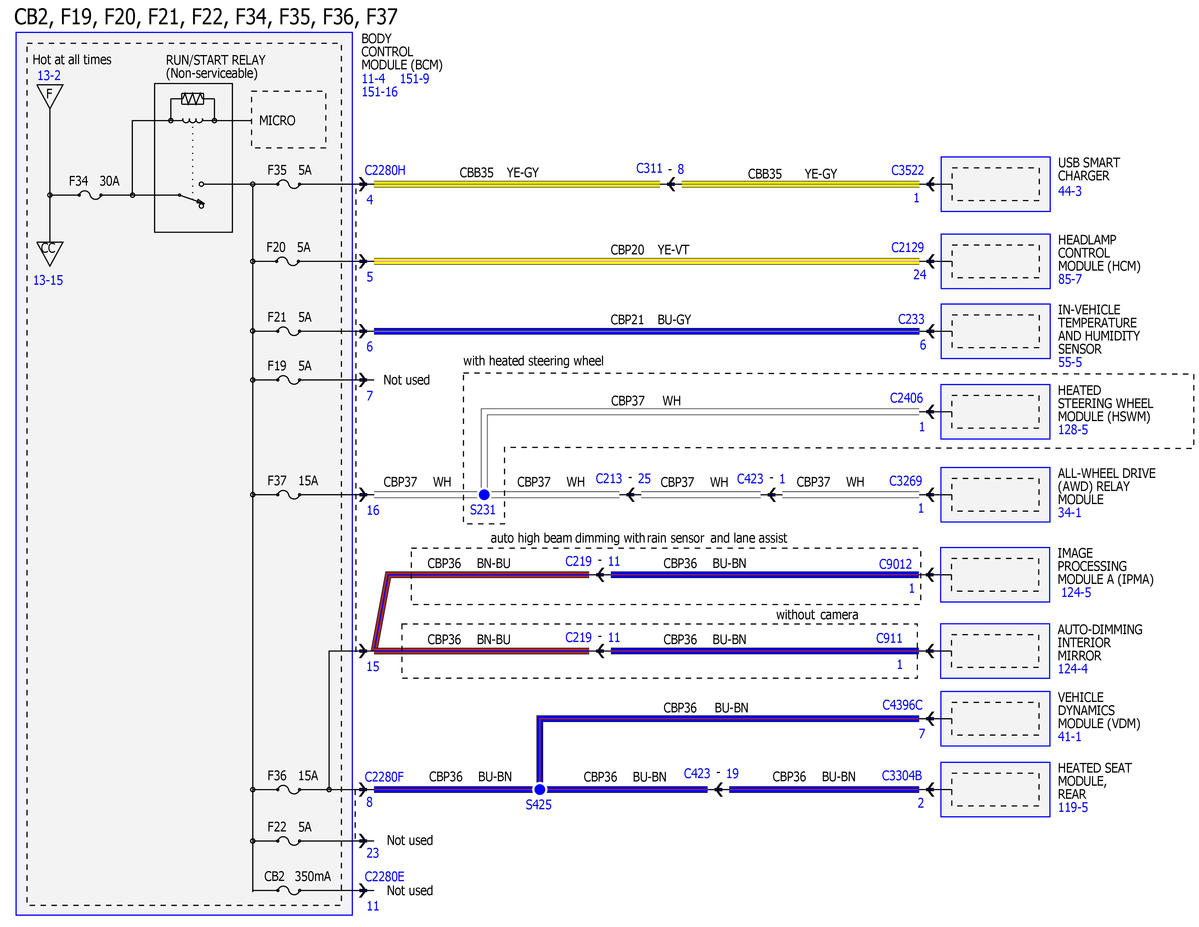

Fig 19: Power Distribution Wiring Diagram (19 Of 43)

GFDWR58932

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution Wiring Diagram (20 Of 43)

GFDWR58933

Courtesy of FORD MOTOR COMPANY

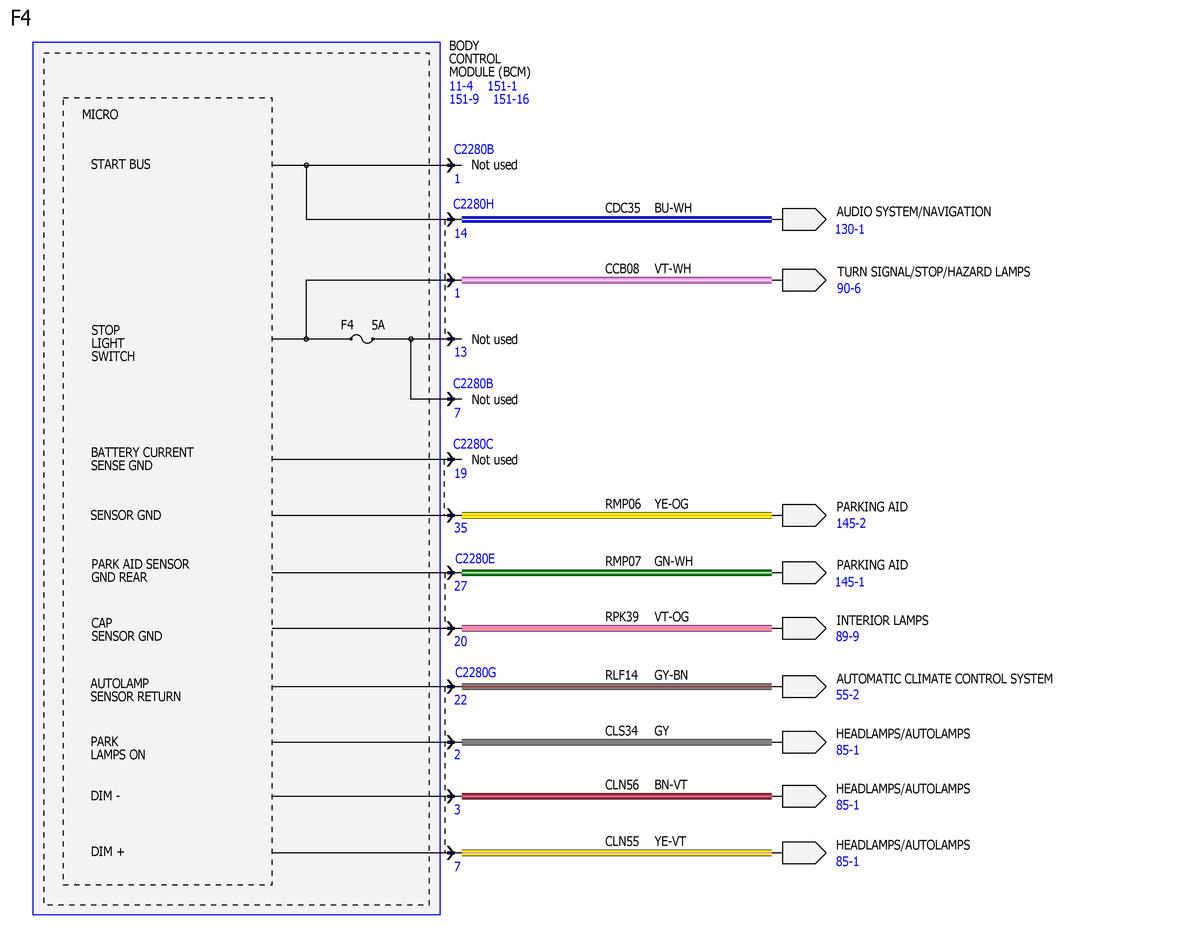

Fig 21: Power Distribution Wiring Diagram (21 Of 43)

GFDWR58934

Courtesy of FORD MOTOR COMPANY

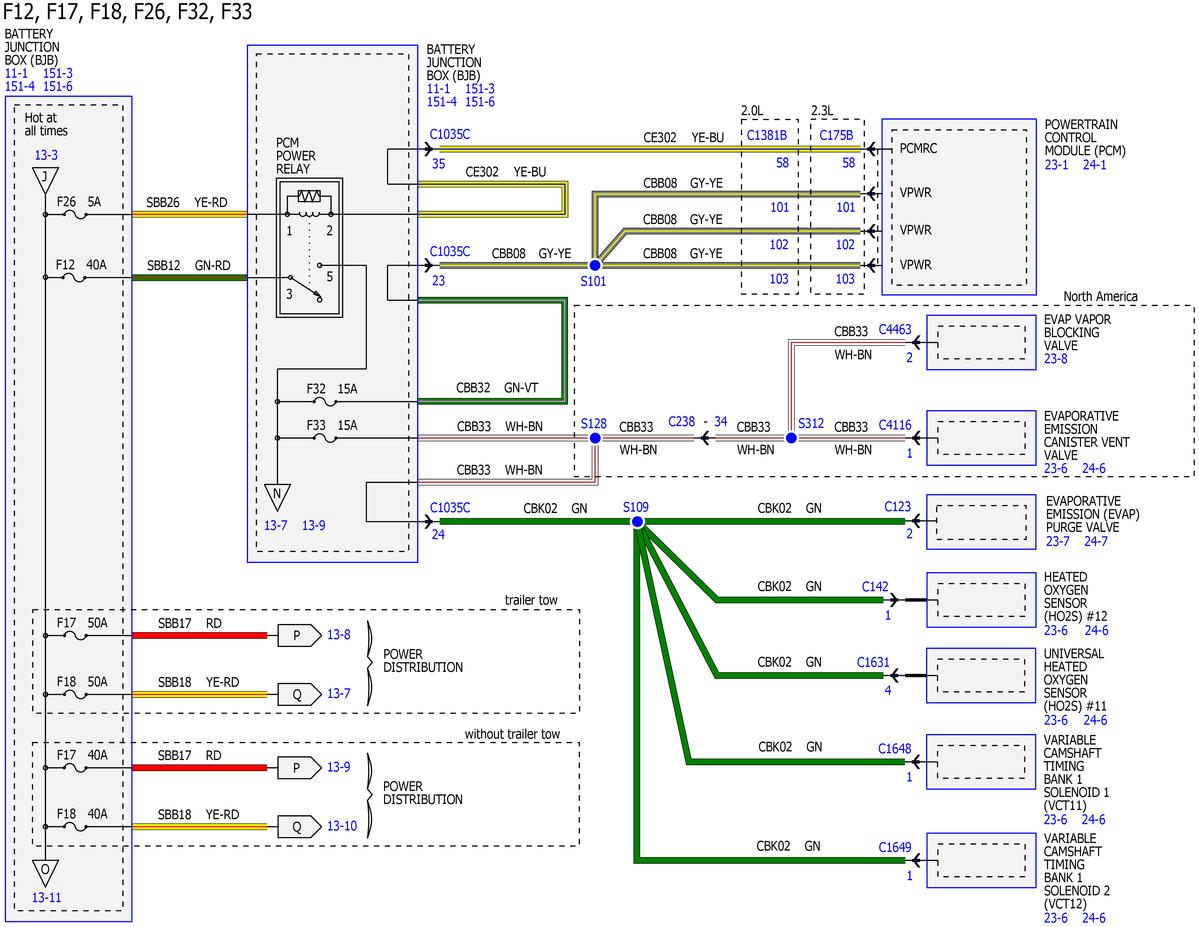

Fig 22: Power Distribution Wiring Diagram (22 Of 43)

GFDWR58935

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 Of 43)

GFDWR58936

Courtesy of FORD MOTOR COMPANY

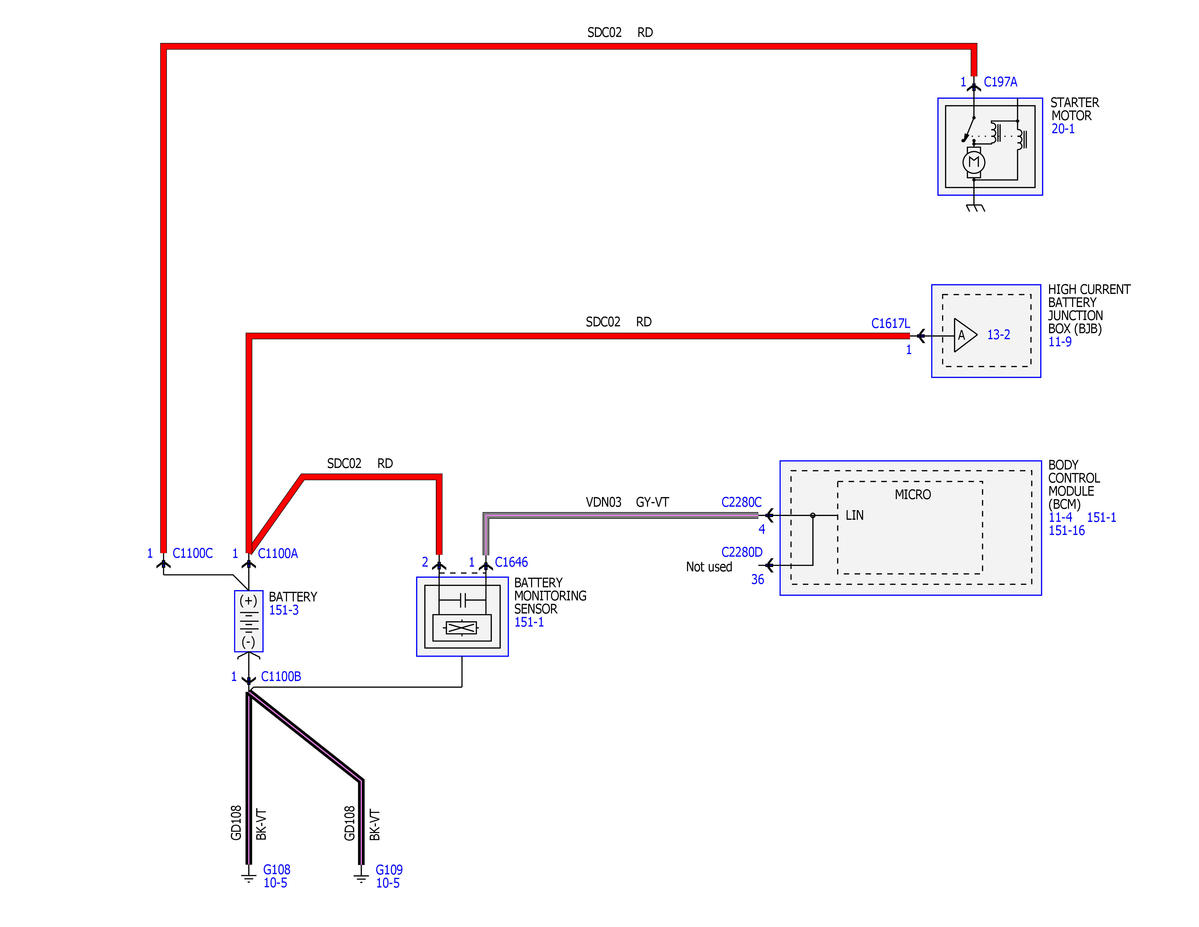

Fig 24: Power Distribution Wiring Diagram (24 Of 43)

GFDWR58937

Courtesy of FORD MOTOR COMPANY

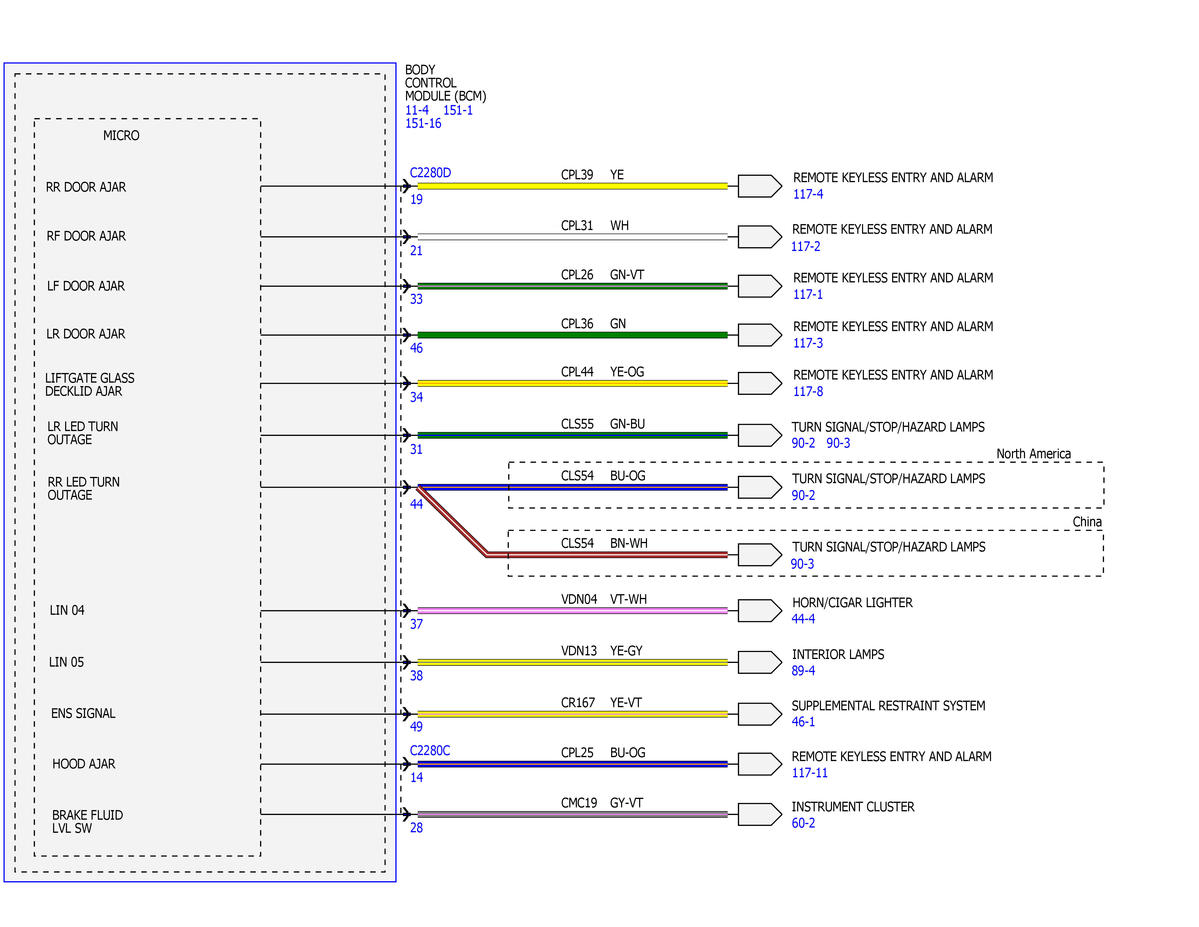

Fig 25: Power Distribution Wiring Diagram (25 Of 43)

GFDWR58938

Courtesy of FORD MOTOR COMPANY

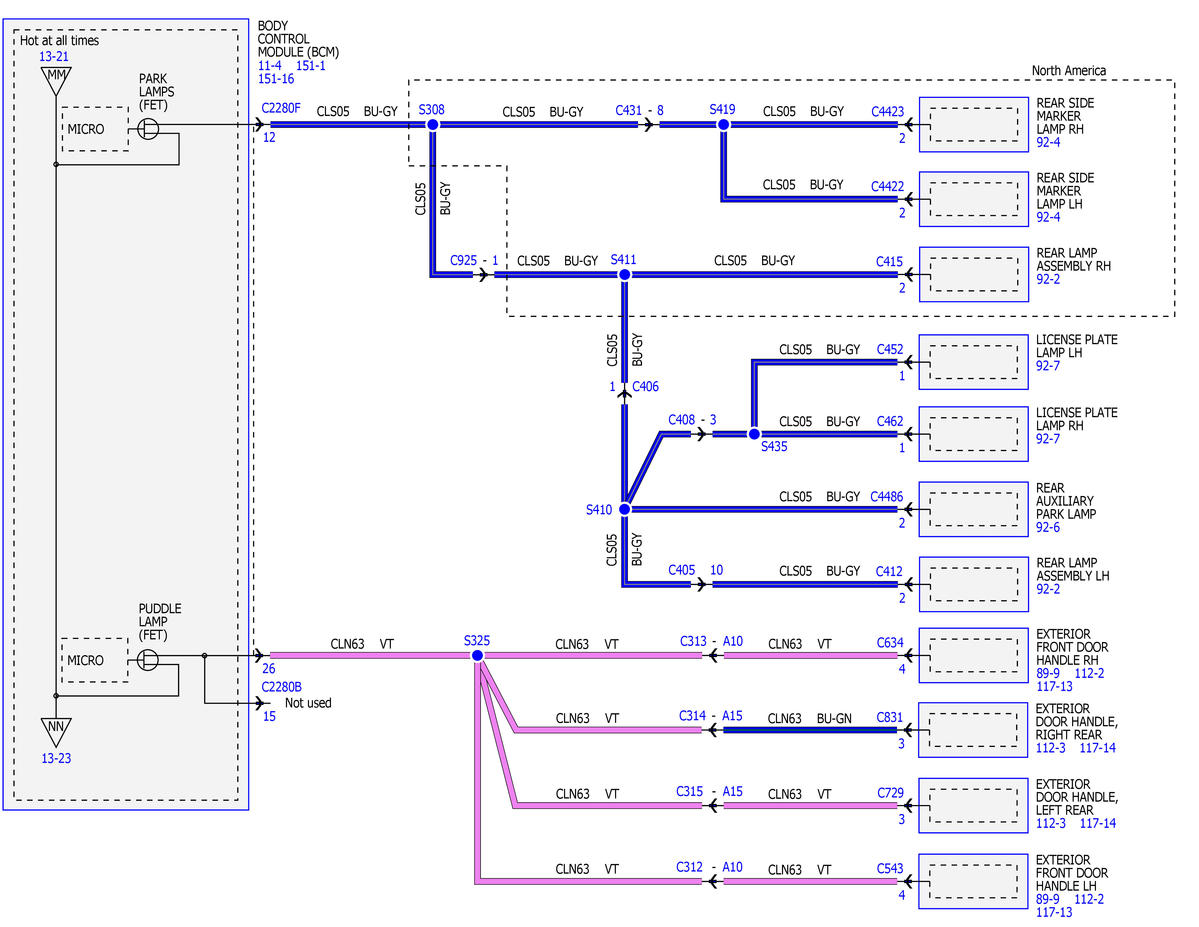

Fig 26: Power Distribution Wiring Diagram (26 Of 43)

GFDWR58939

Courtesy of FORD MOTOR COMPANY

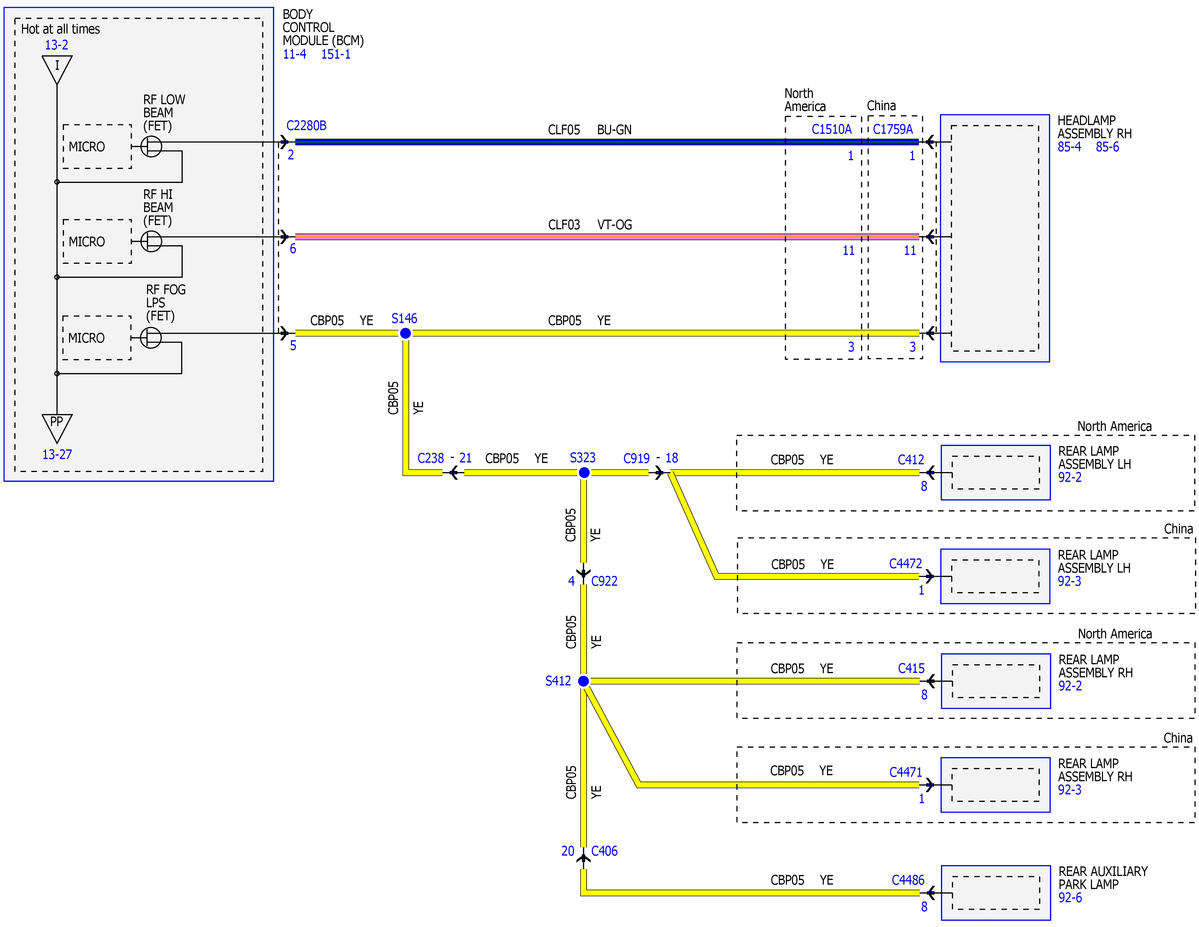

Fig 27: Power Distribution Wiring Diagram (27 Of 43)

GFDWR58940

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 Of 43)

GFDWR58941

Courtesy of FORD MOTOR COMPANY

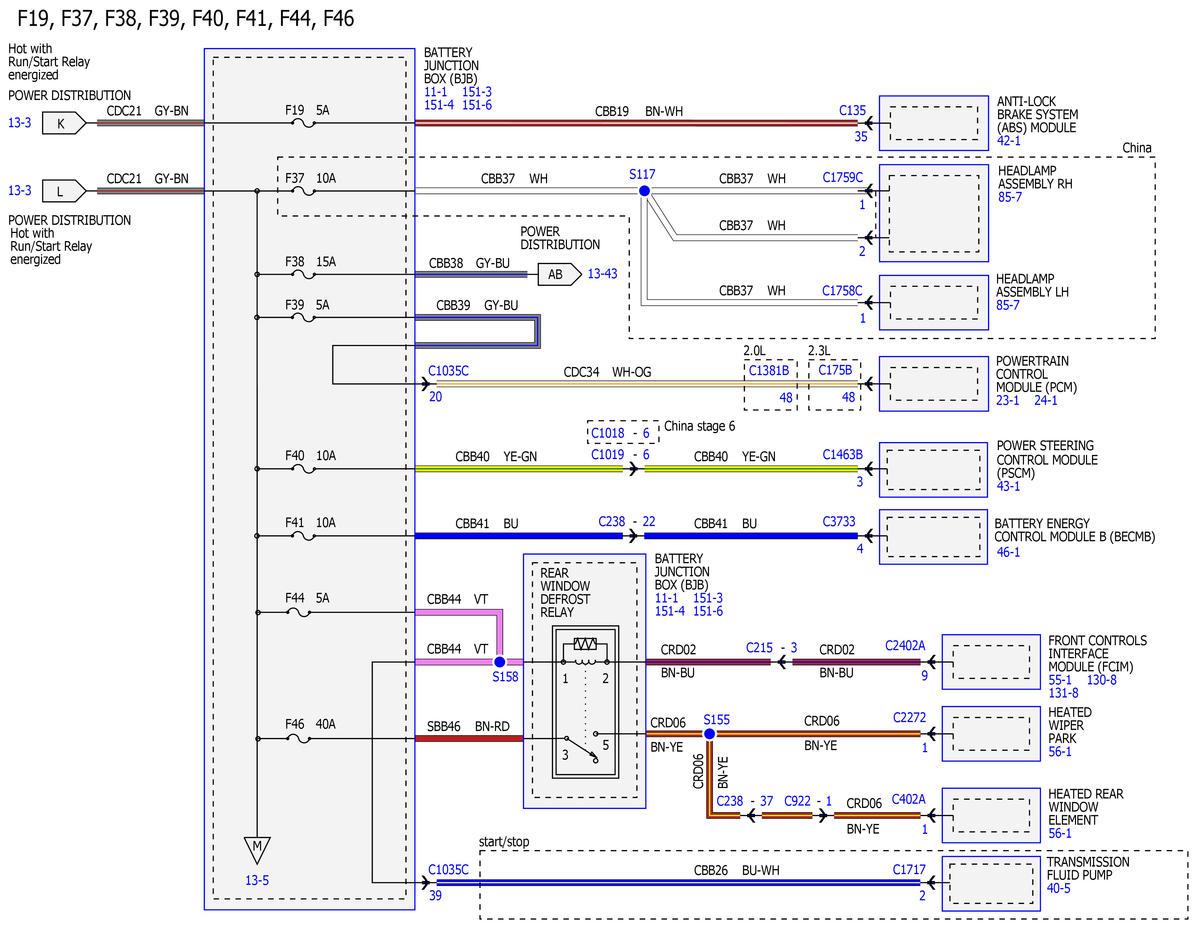

Fig 29: Power Distribution Wiring Diagram (29 Of 43)

GFDWR58942

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagram (30 Of 43)

GFDWR58943

Courtesy of FORD MOTOR COMPANY

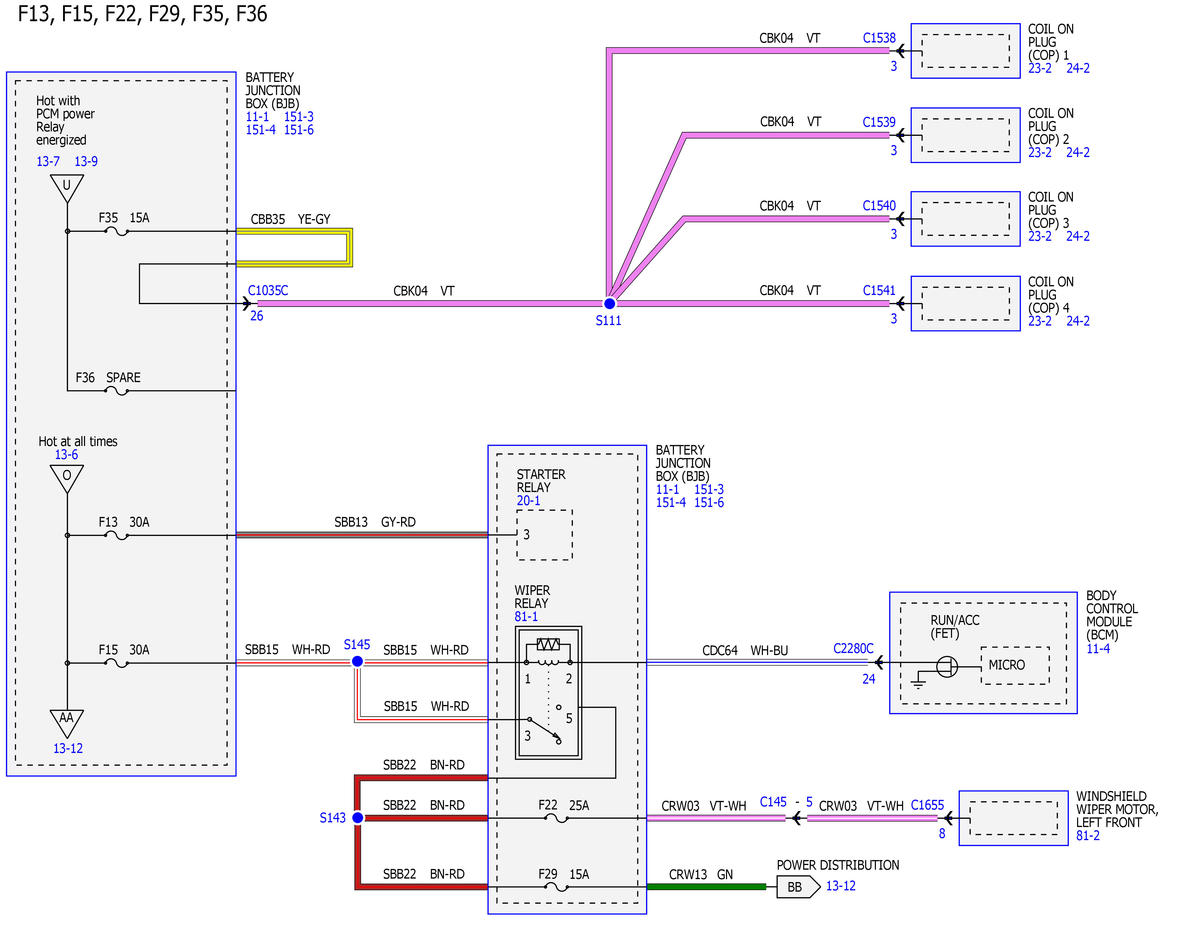

Fig 31: Power Distribution Wiring Diagram (31 Of 43)

GFDWR58944

Courtesy of FORD MOTOR COMPANY

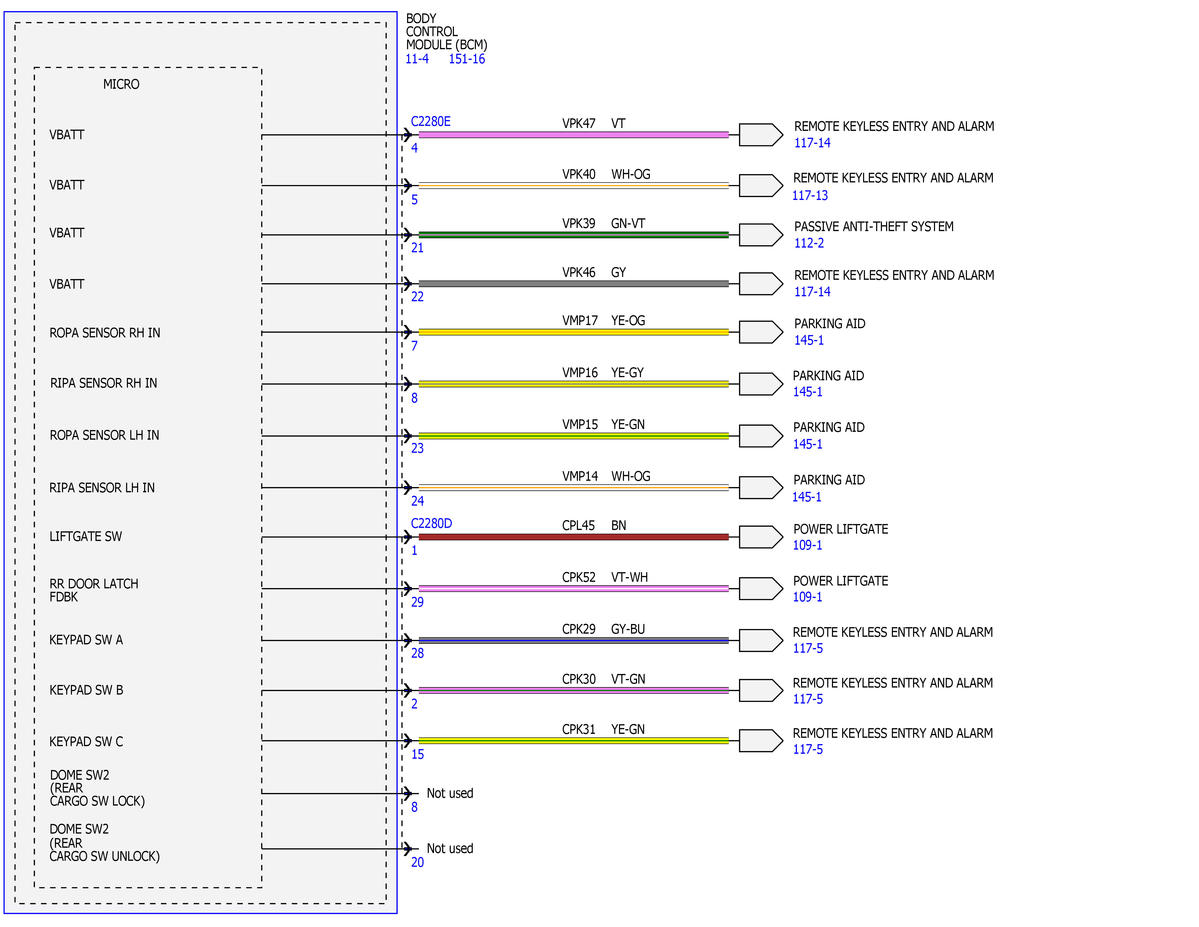

Fig 32: Power Distribution Wiring Diagram (32 Of 43)

GFDWR58945

Courtesy of FORD MOTOR COMPANY

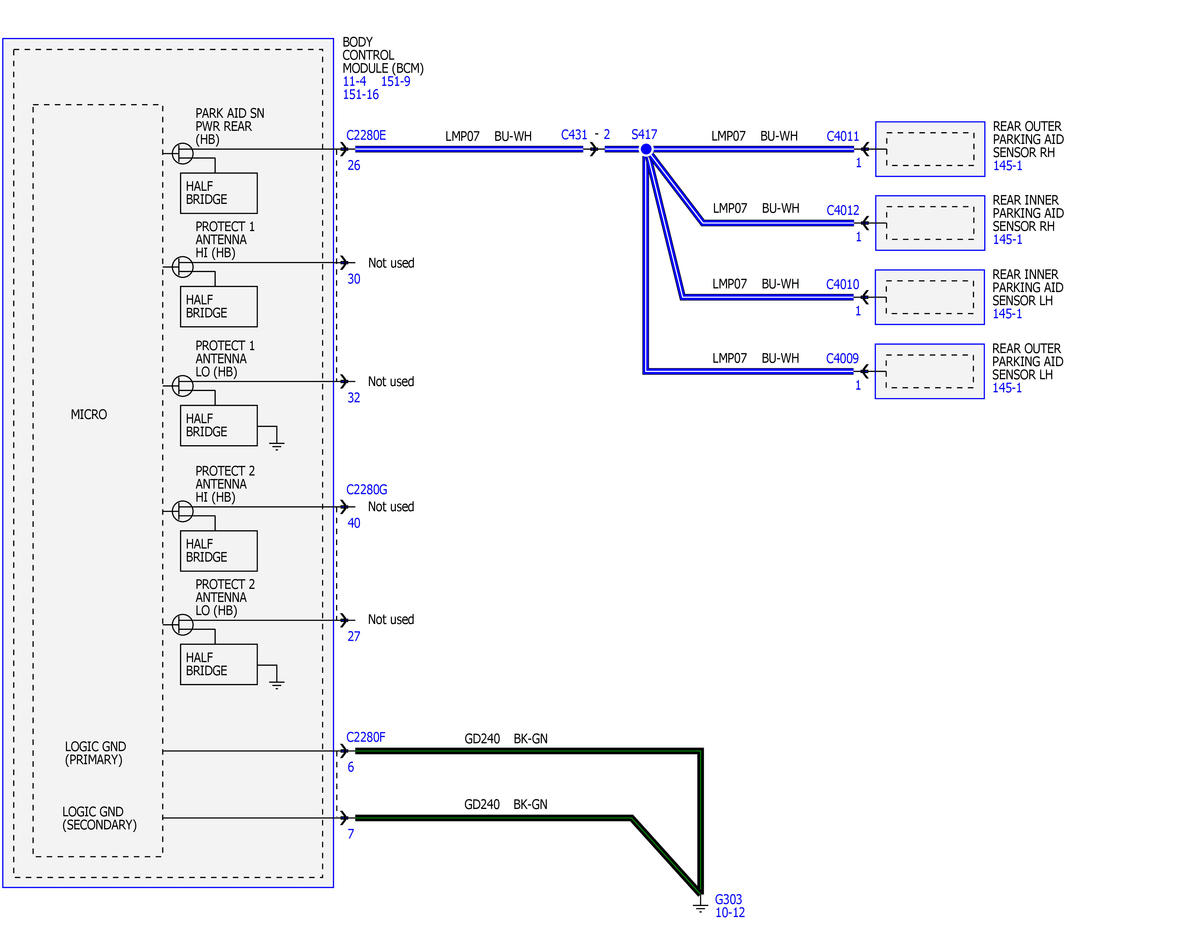

Fig 33: Power Distribution Wiring Diagram (33 Of 43)

GFDWR58946

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 Of 43)

GFDWR58947

Courtesy of FORD MOTOR COMPANY

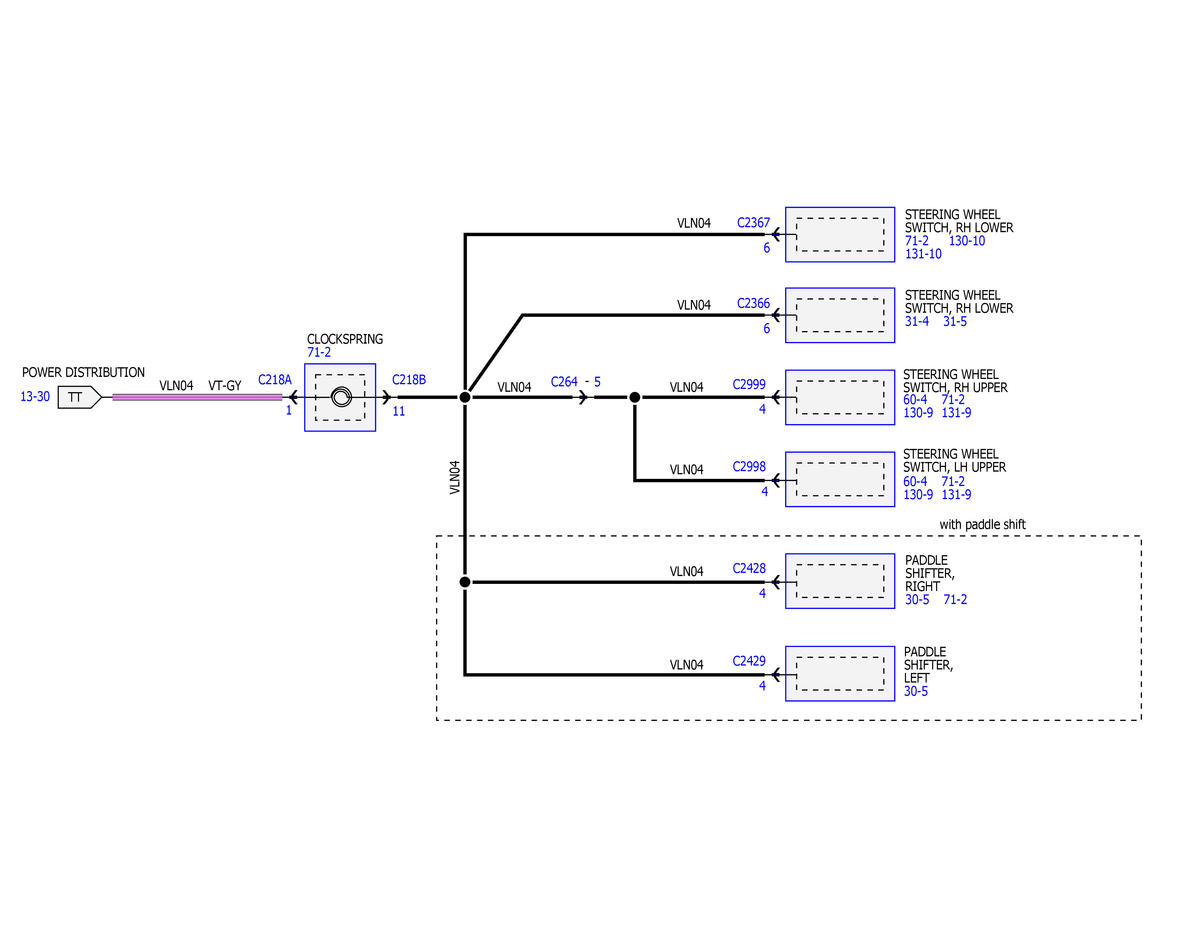

Fig 35: Power Distribution Wiring Diagram (35 Of 43)

GFDWR58948

Courtesy of FORD MOTOR COMPANY

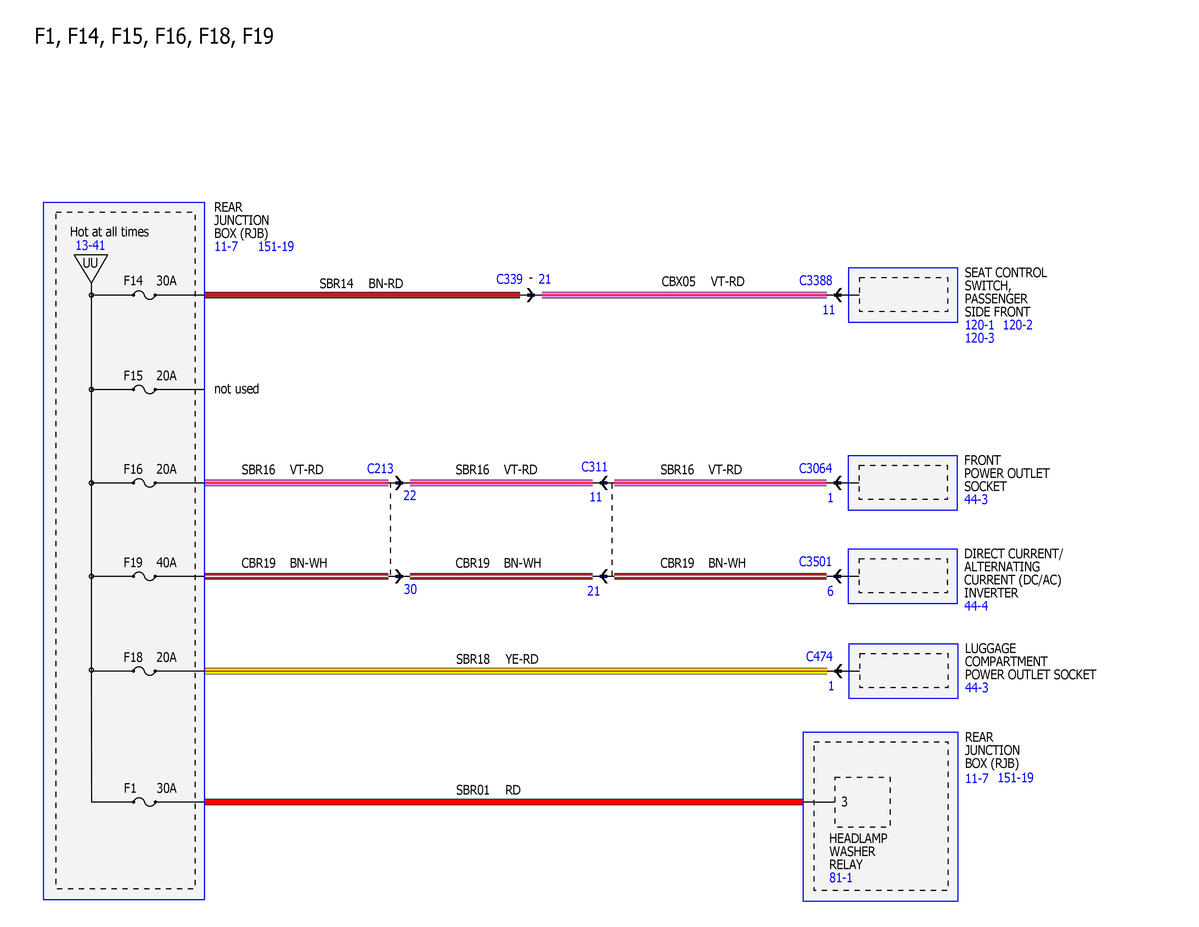

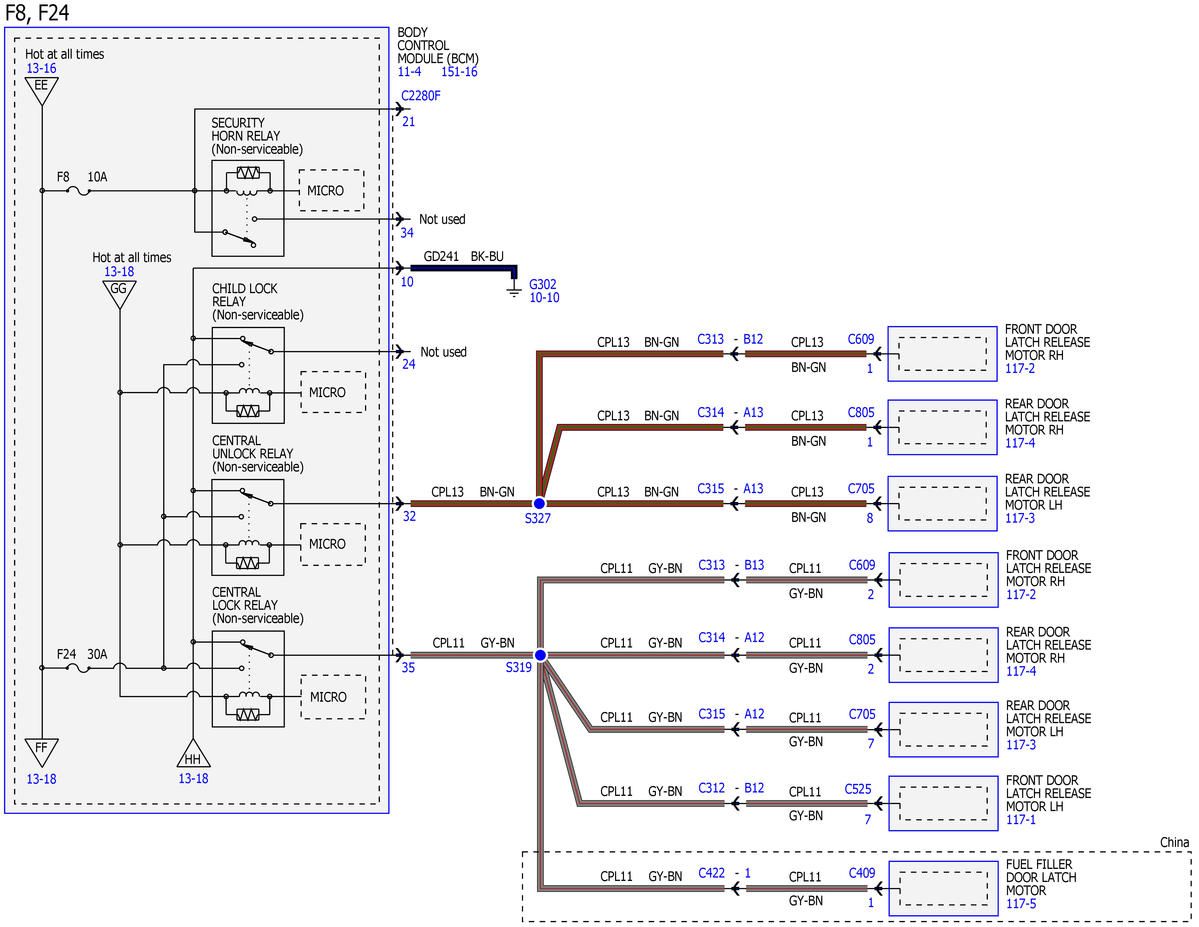

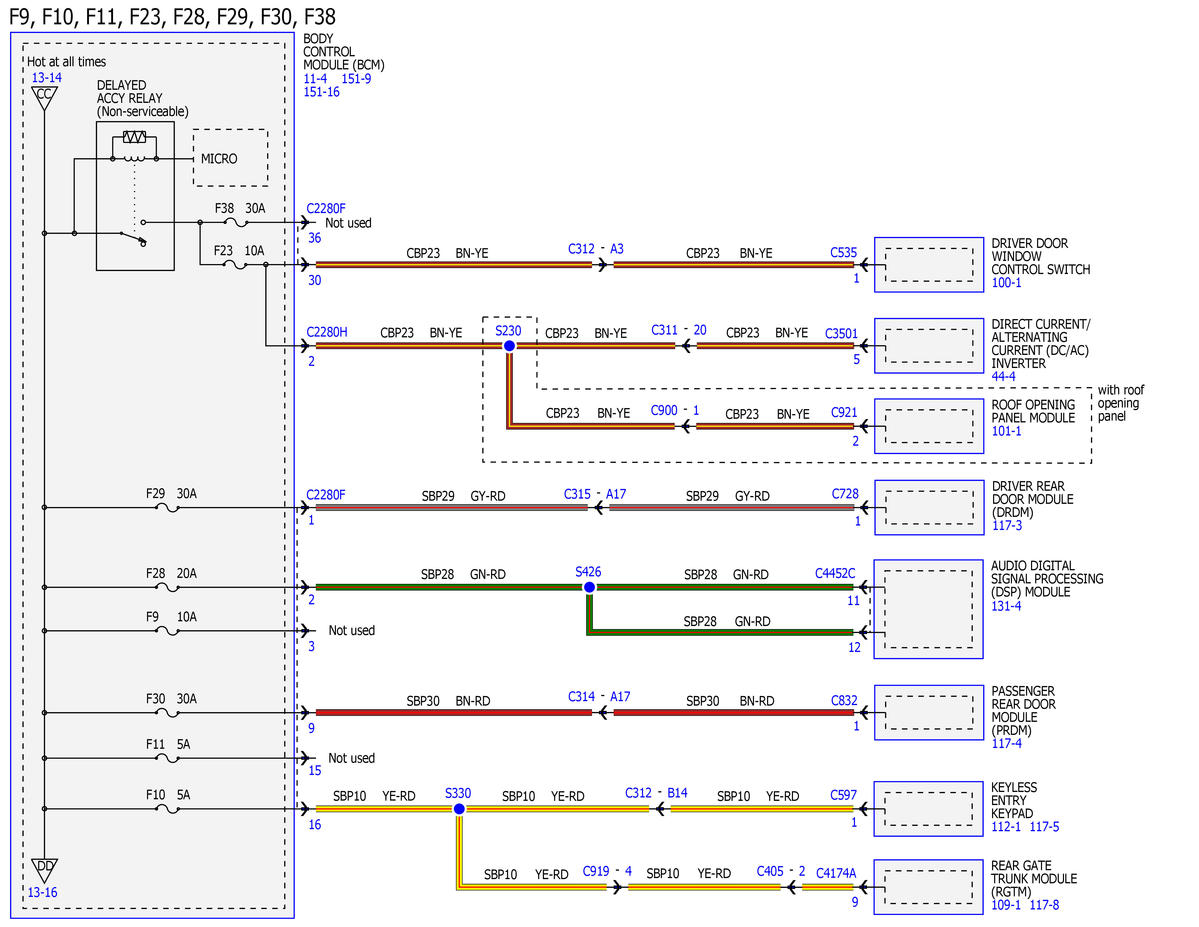

Fig 36: Power Distribution Wiring Diagram (36 Of 43)

GFDWR58949

Courtesy of FORD MOTOR COMPANY

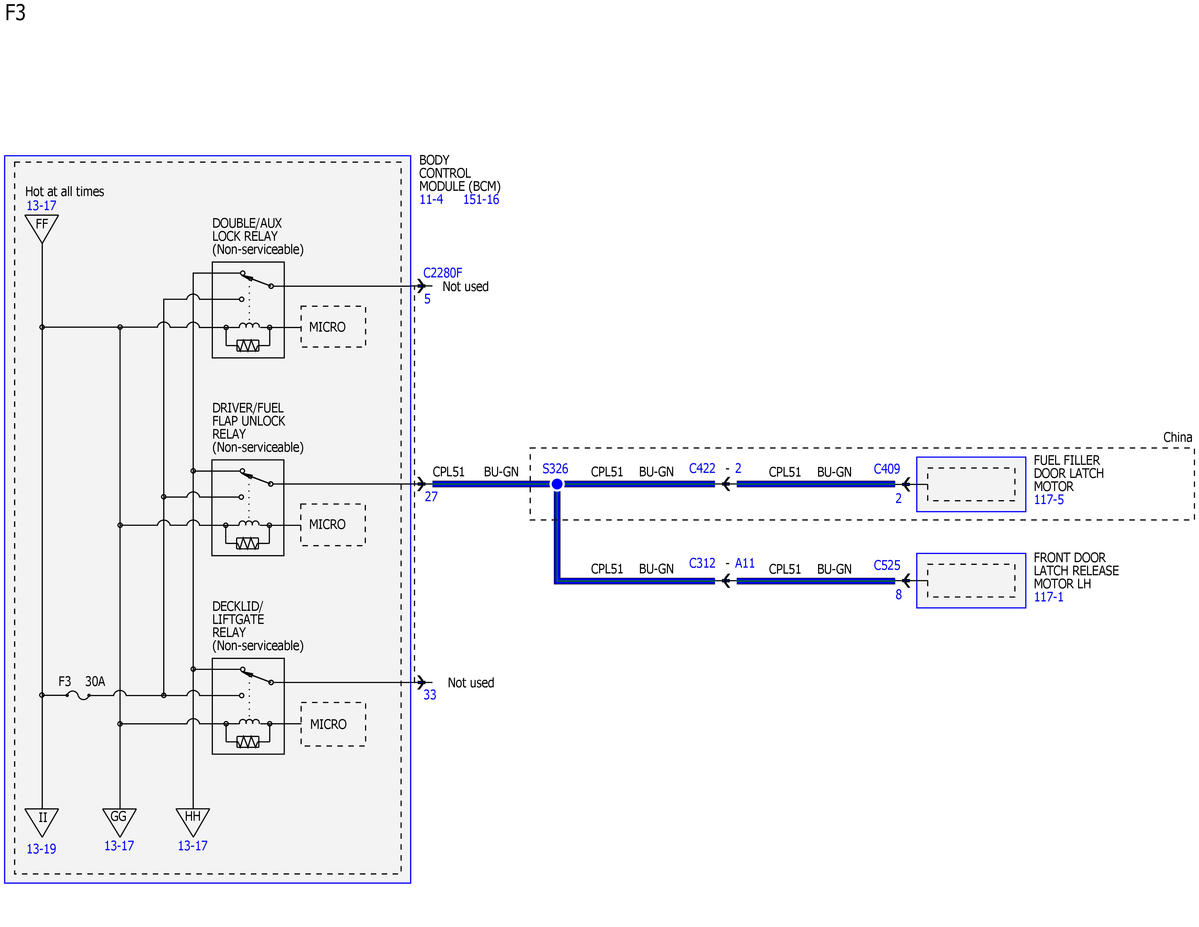

Fig 37: Power Distribution Wiring Diagram (37 Of 43)

GFDWR58950

Courtesy of FORD MOTOR COMPANY

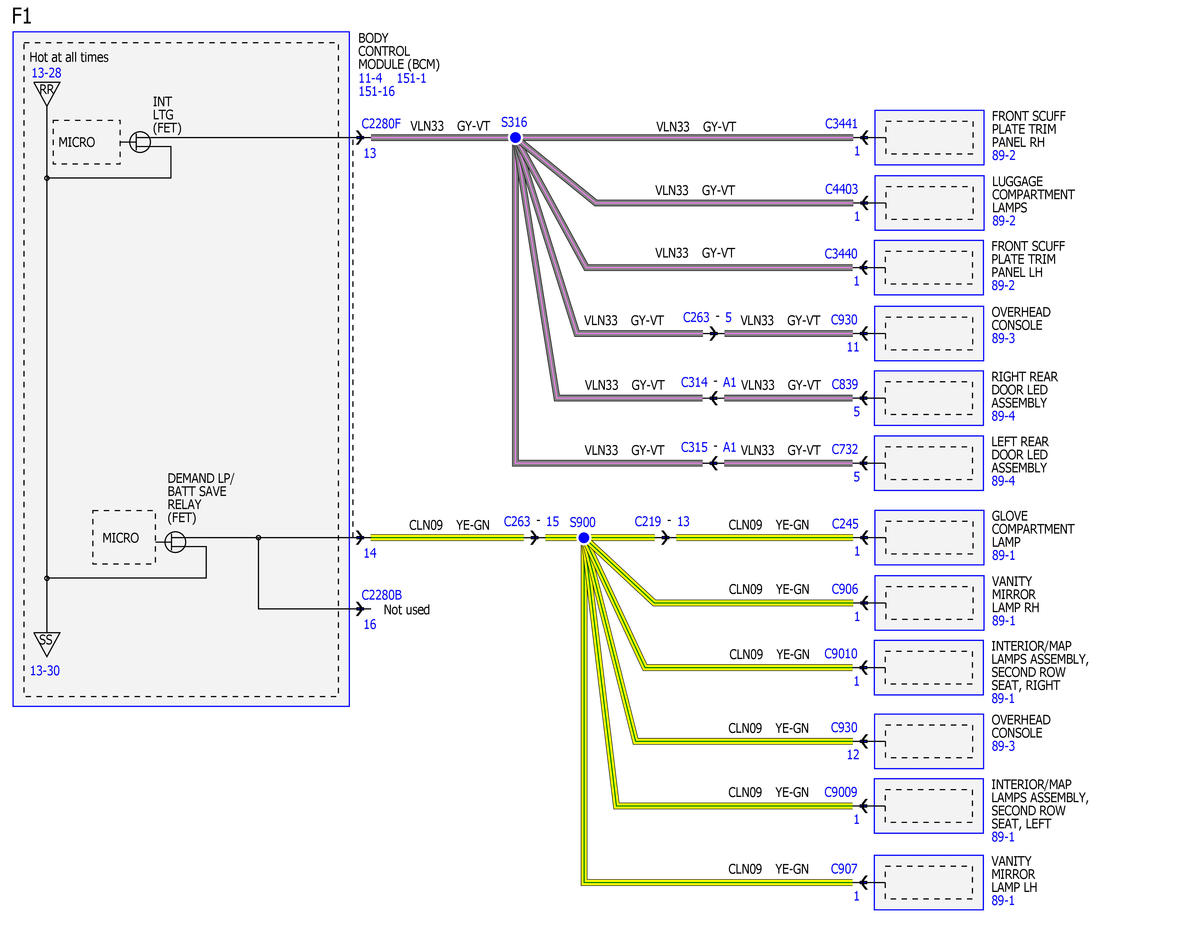

Fig 38: Power Distribution Wiring Diagram (38 Of 43)

GFDWR58951

Courtesy of FORD MOTOR COMPANY

Fig 39: Power Distribution Wiring Diagram (39 Of 43)

GFDWR58952

Courtesy of FORD MOTOR COMPANY

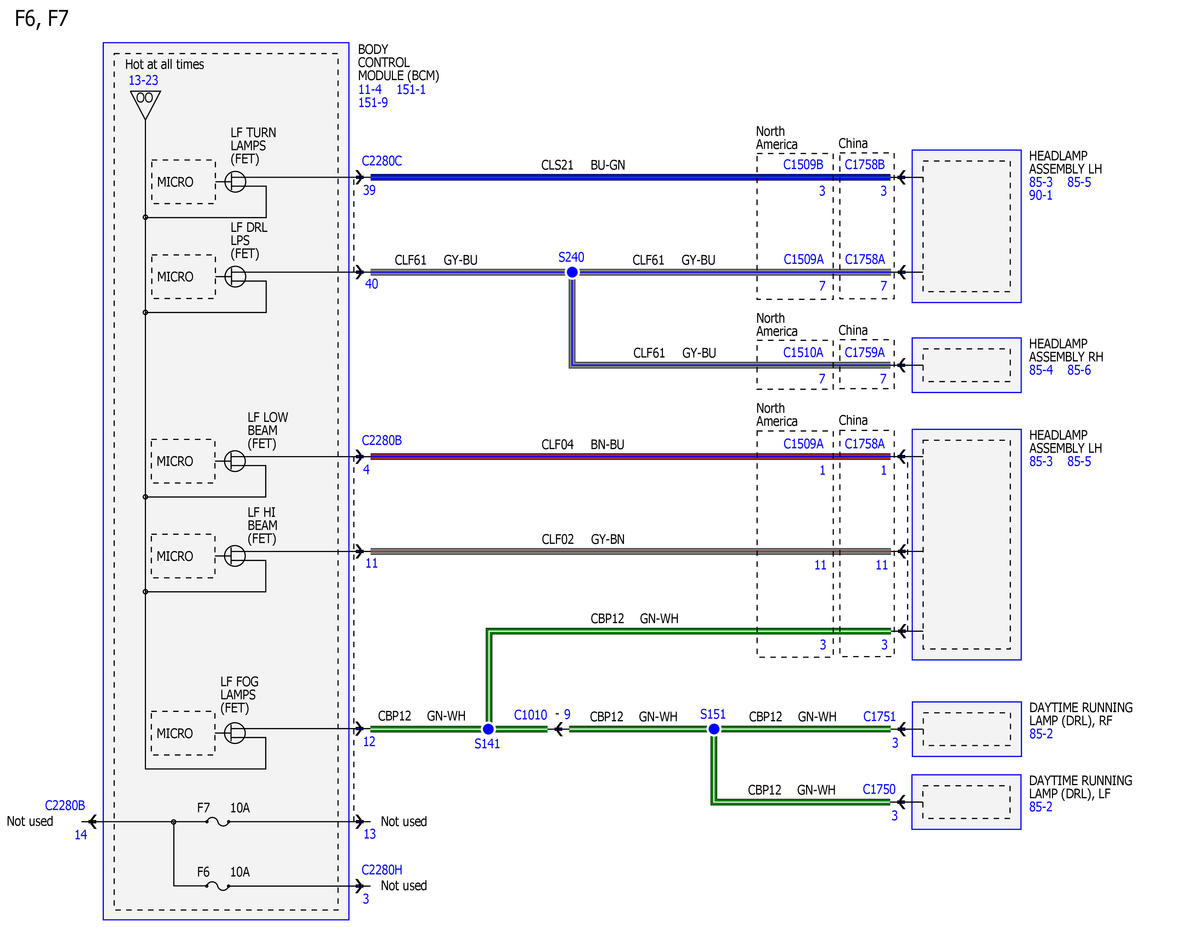

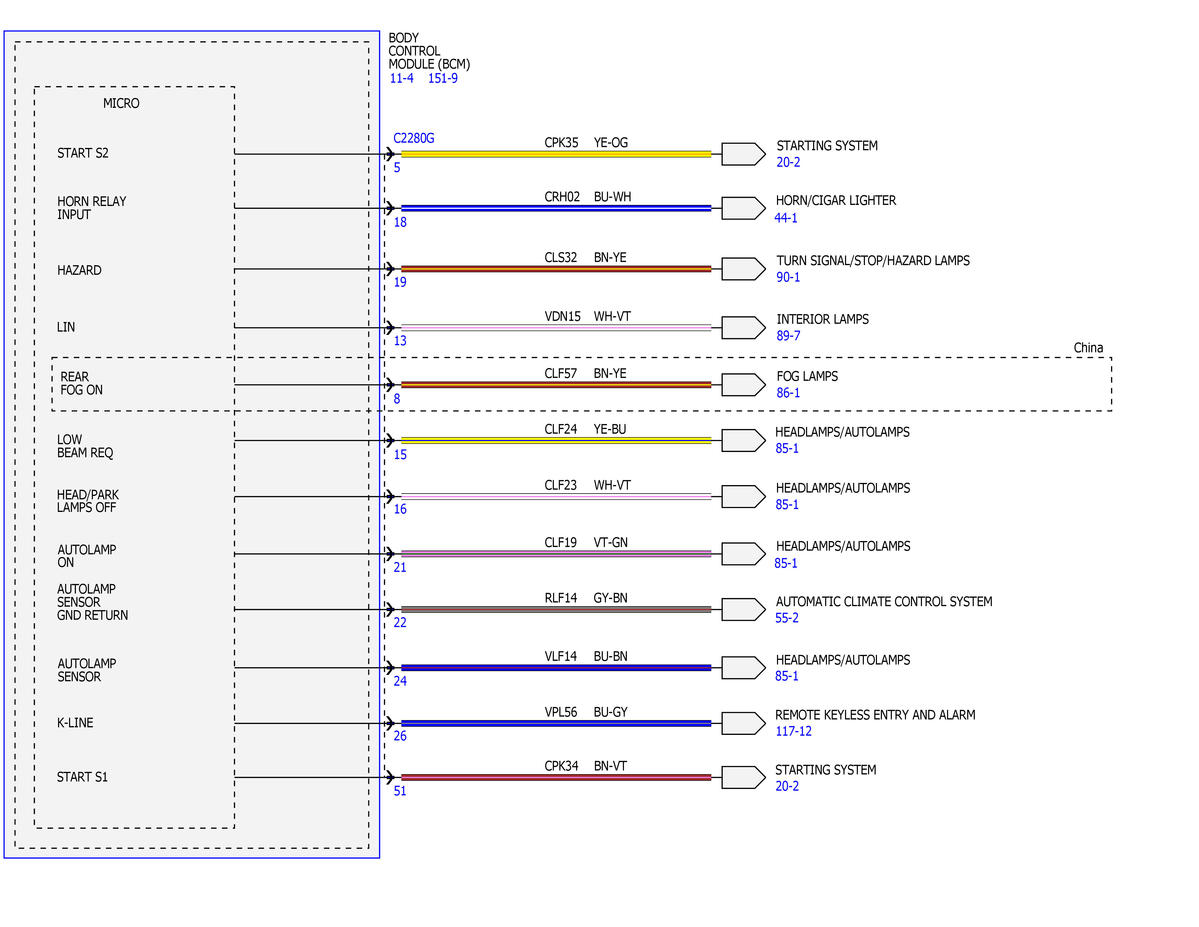

Fig 40: Power Distribution Wiring Diagram (40 Of 43)

GFDWR58953

Courtesy of FORD MOTOR COMPANY

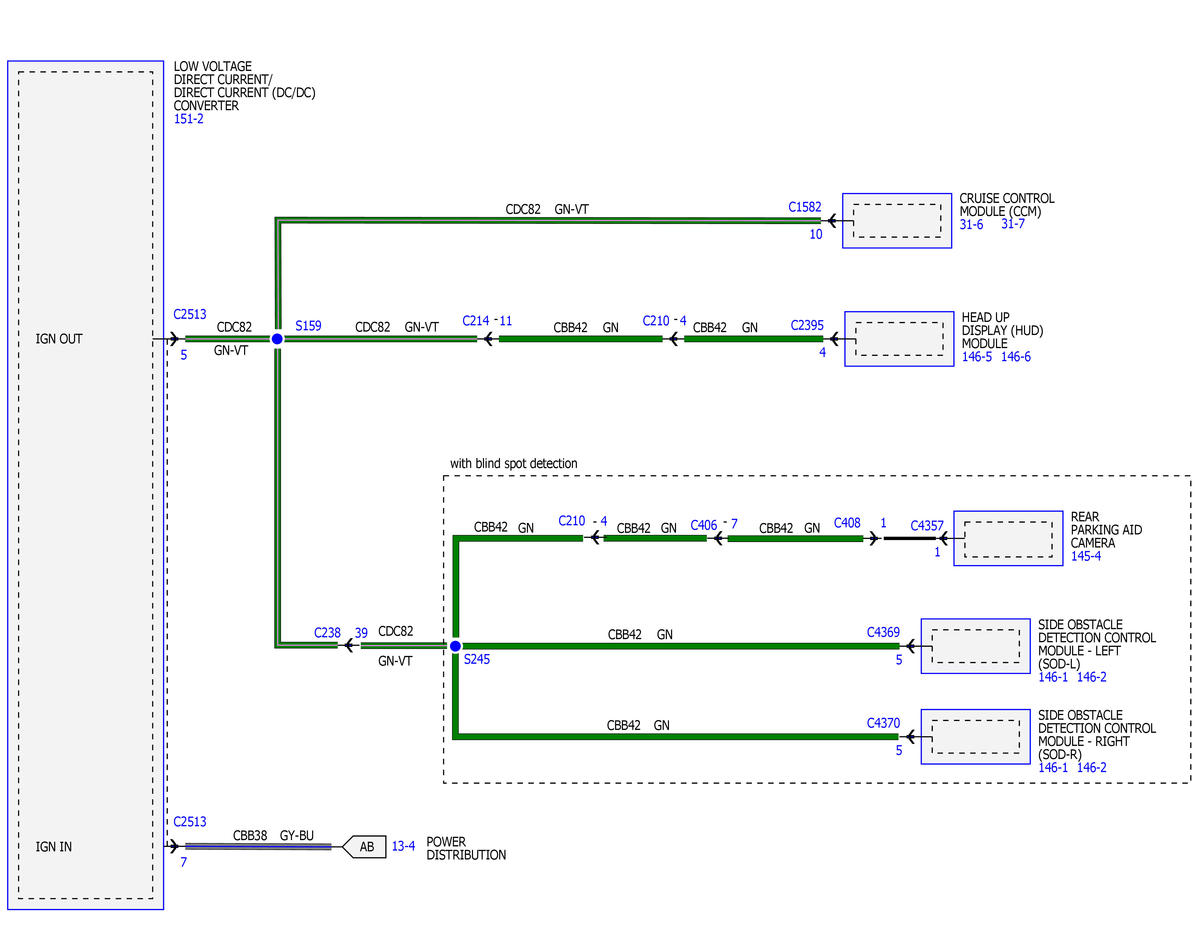

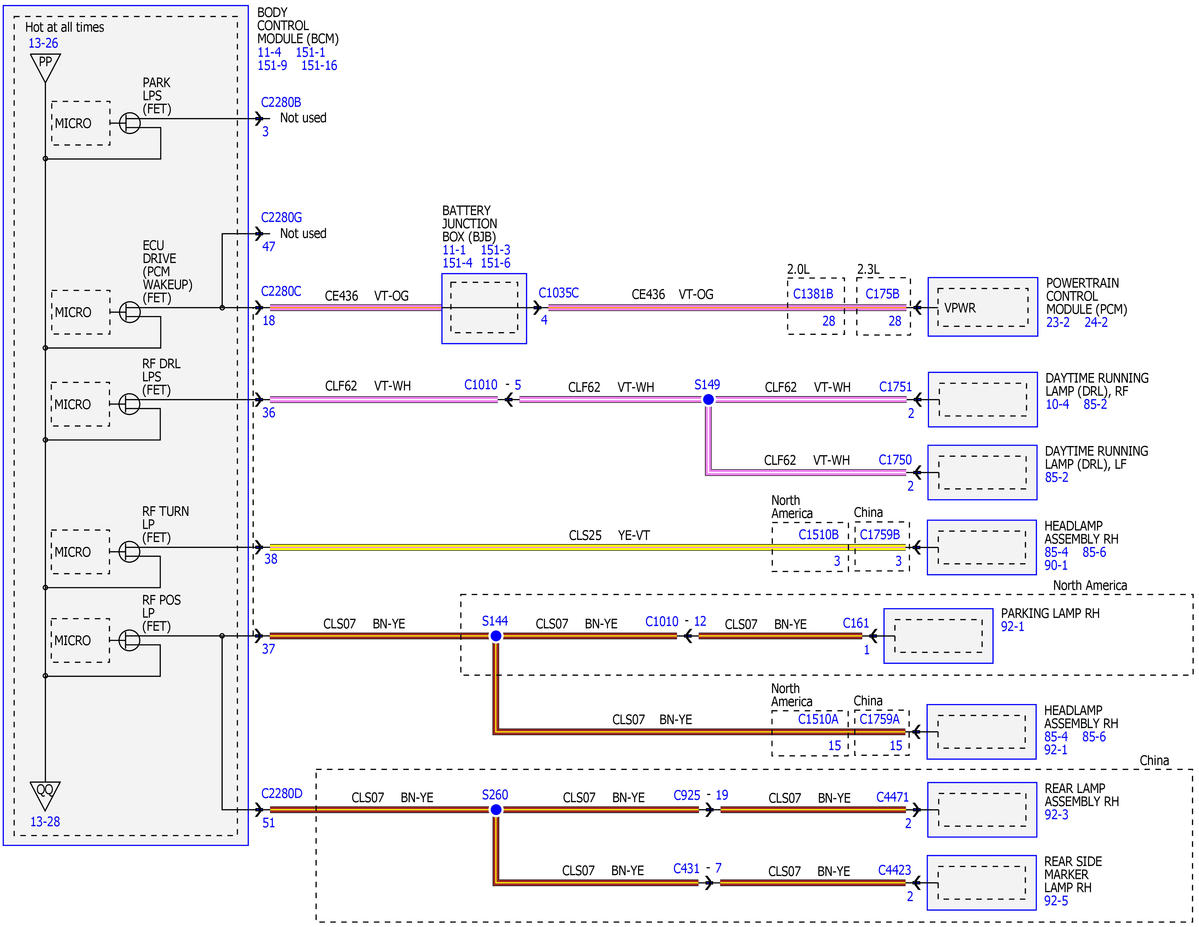

Fig 41: Power Distribution Wiring Diagram (41 Of 43)

GFDWR58954

Courtesy of FORD MOTOR COMPANY

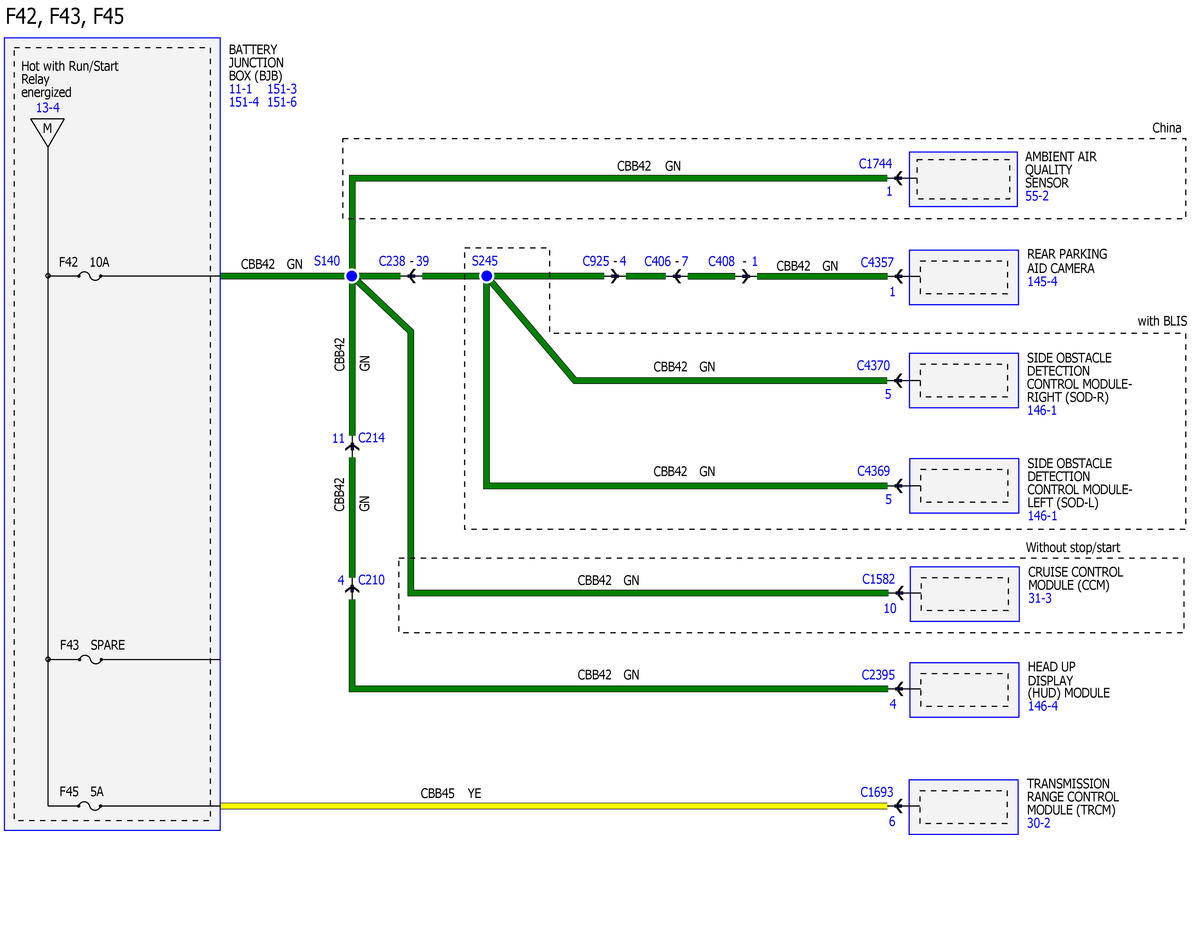

Fig 42: Power Distribution Wiring Diagram (42 Of 43)

GFDWR58955

Courtesy of FORD MOTOR COMPANY

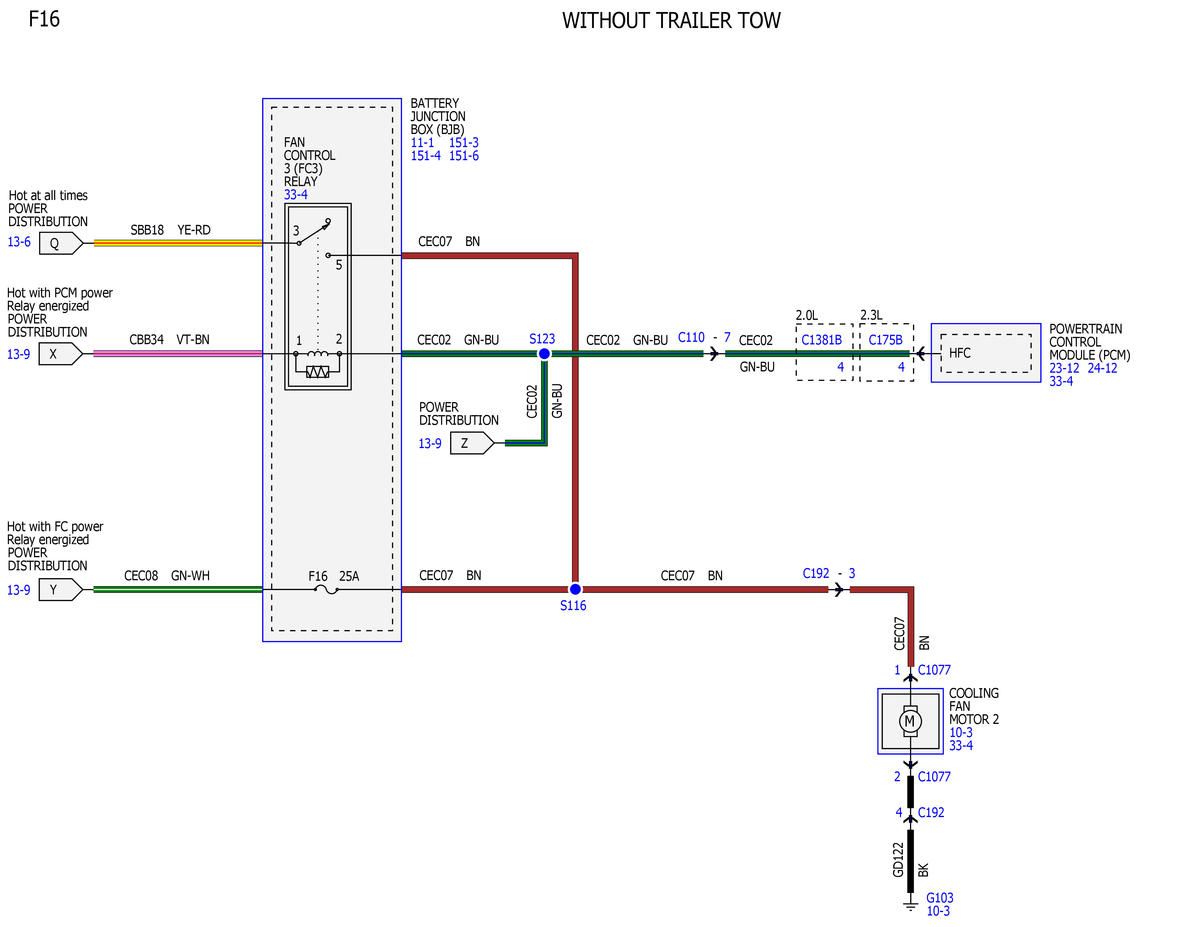

Fig 43: Power Distribution Wiring Diagram (43 Of 43)

GFDWR58956

Courtesy of FORD MOTOR COMPANY
