Electronic Engine Controls - 2.0L GTDI

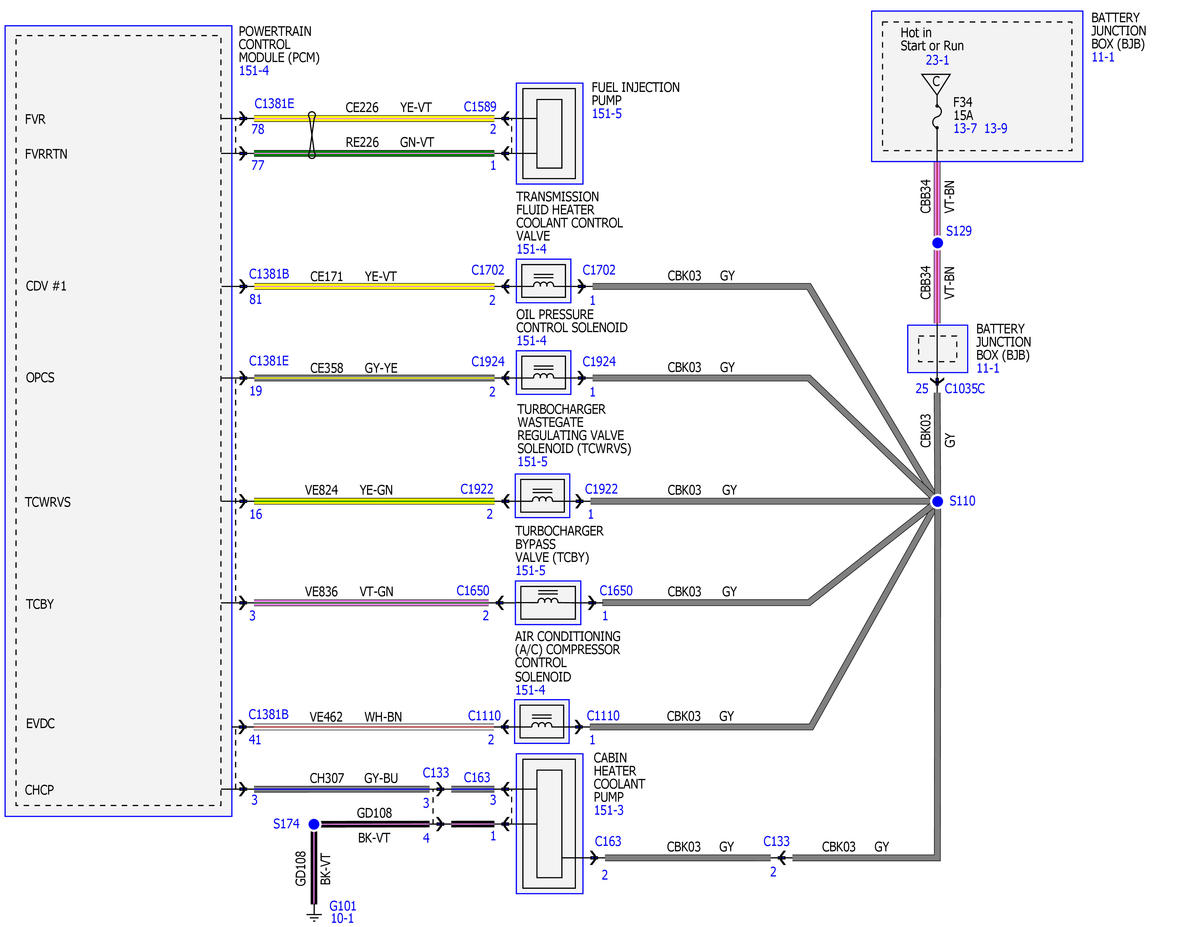

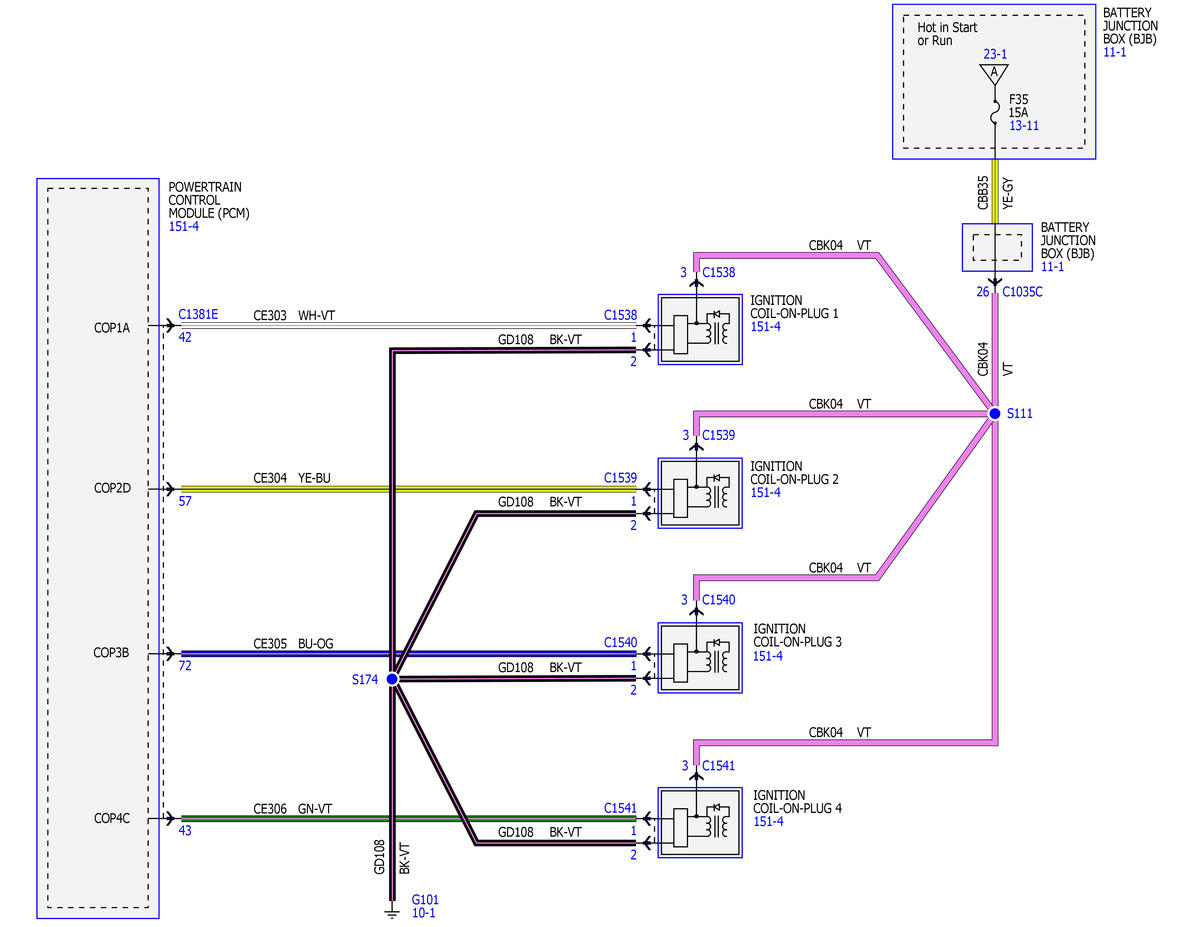

Fig 1: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (1 Of 14)

Courtesy of FORD MOTOR COMPANY

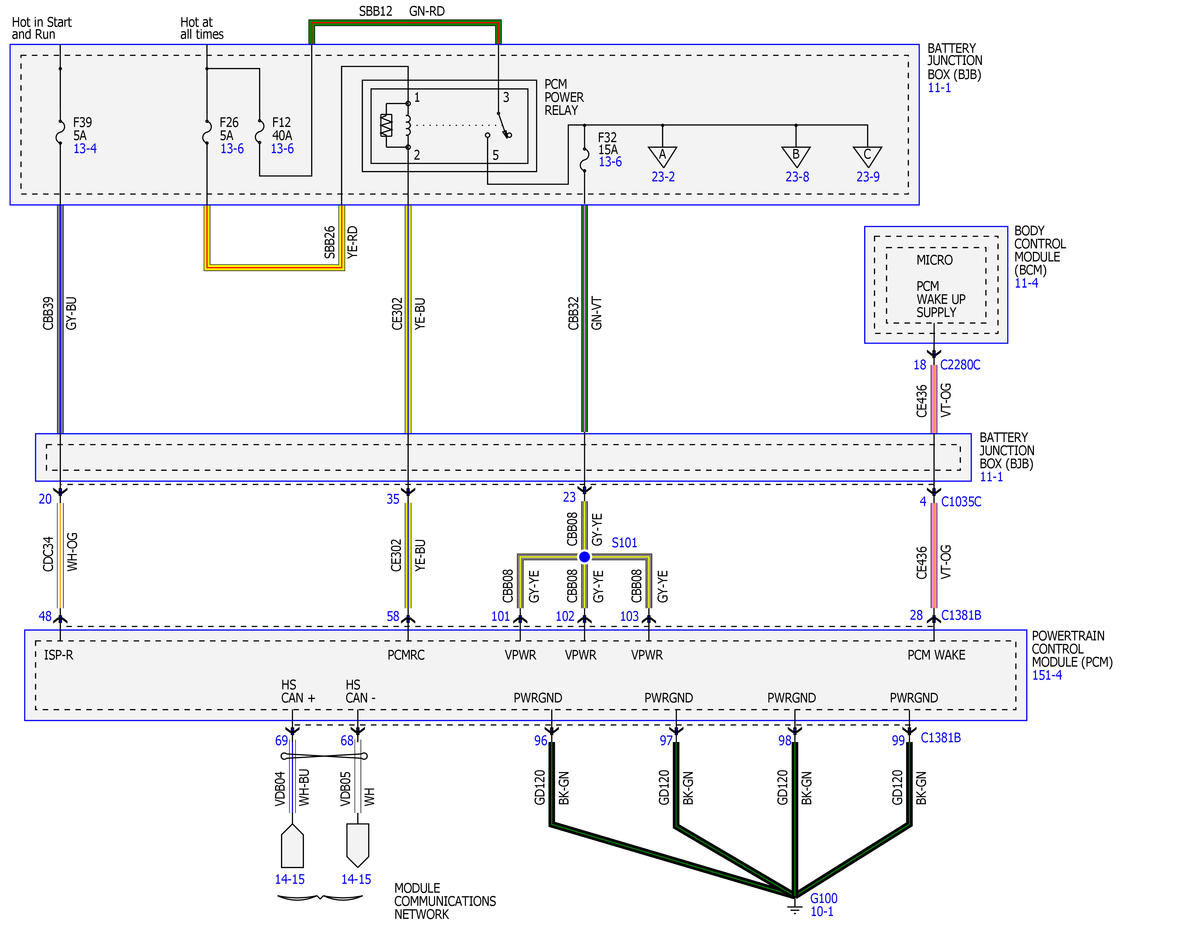

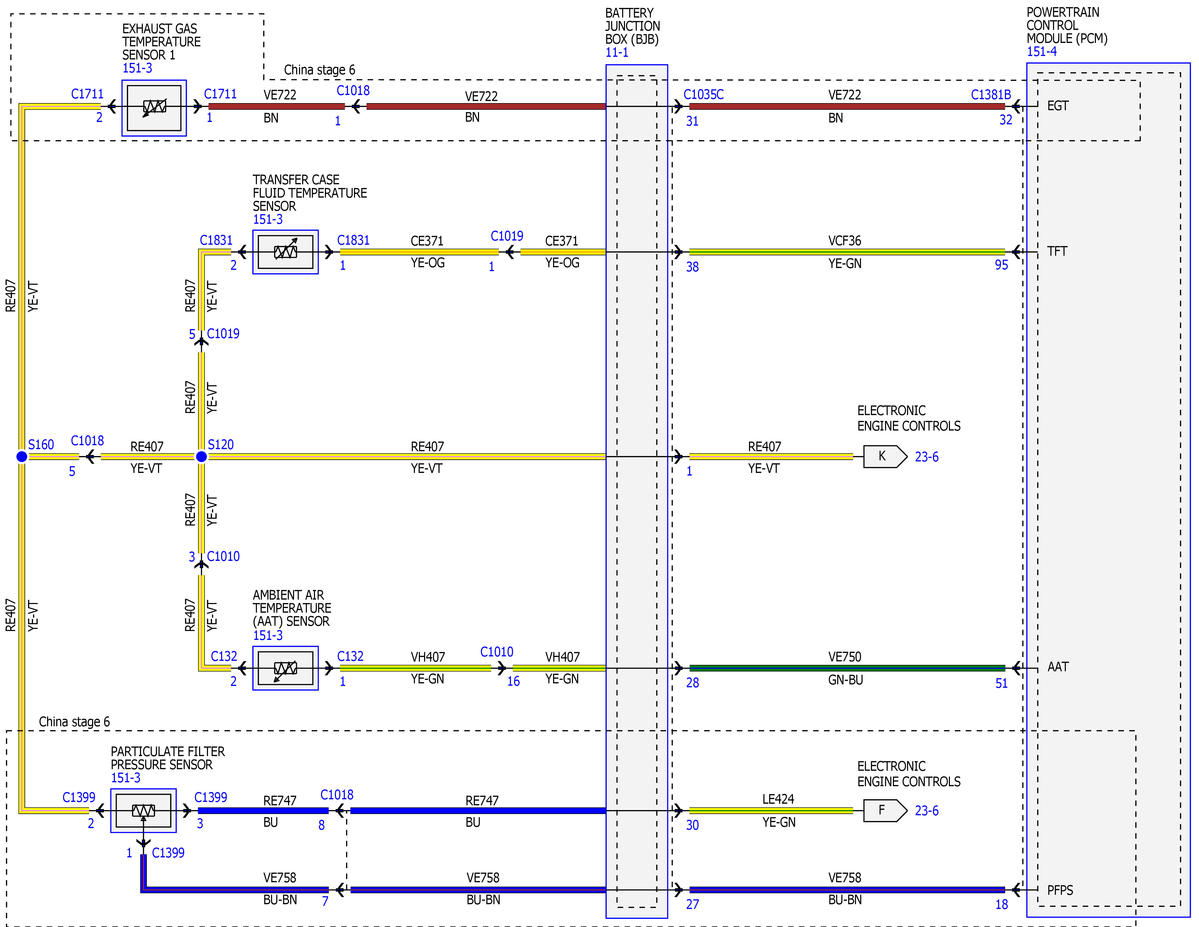

Fig 2: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (2 Of 14)

Courtesy of FORD MOTOR COMPANY

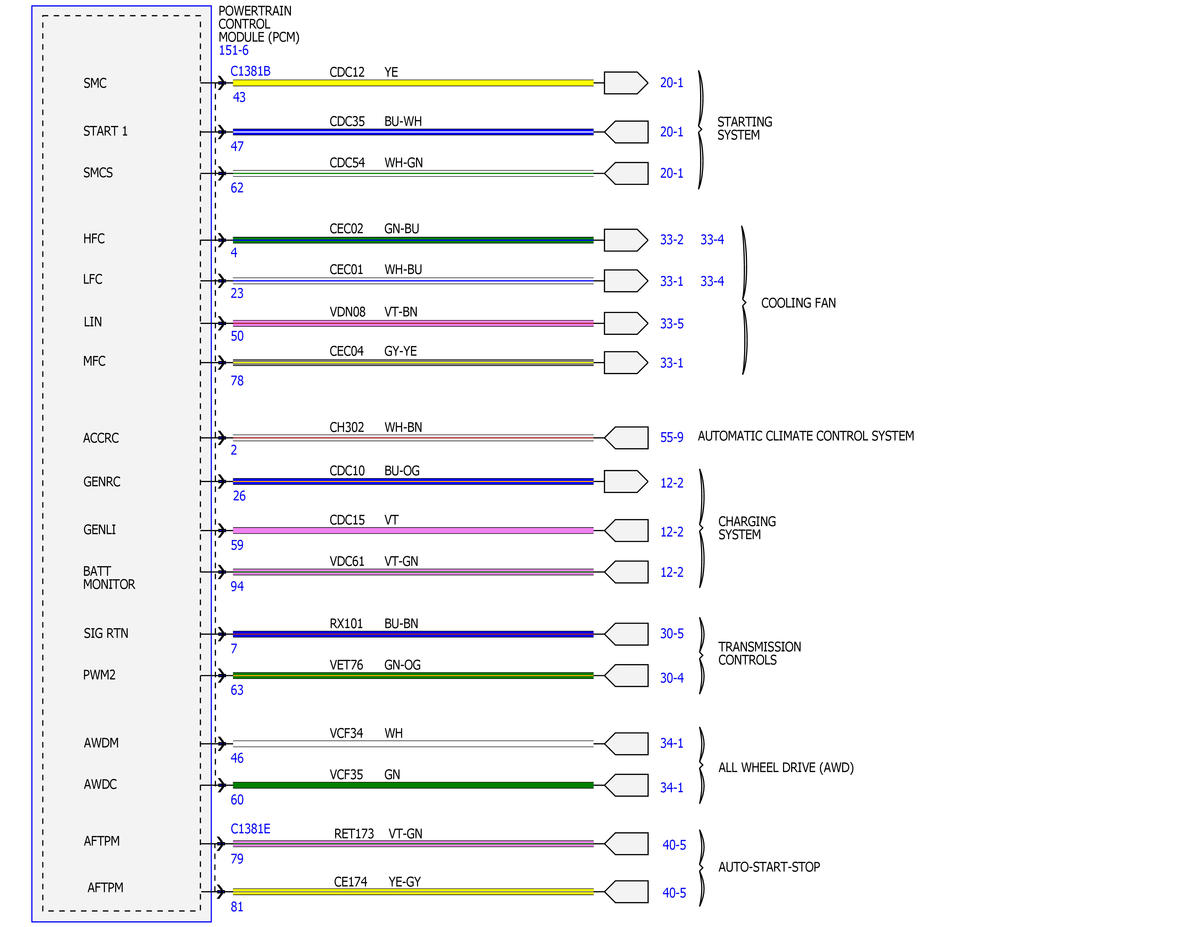

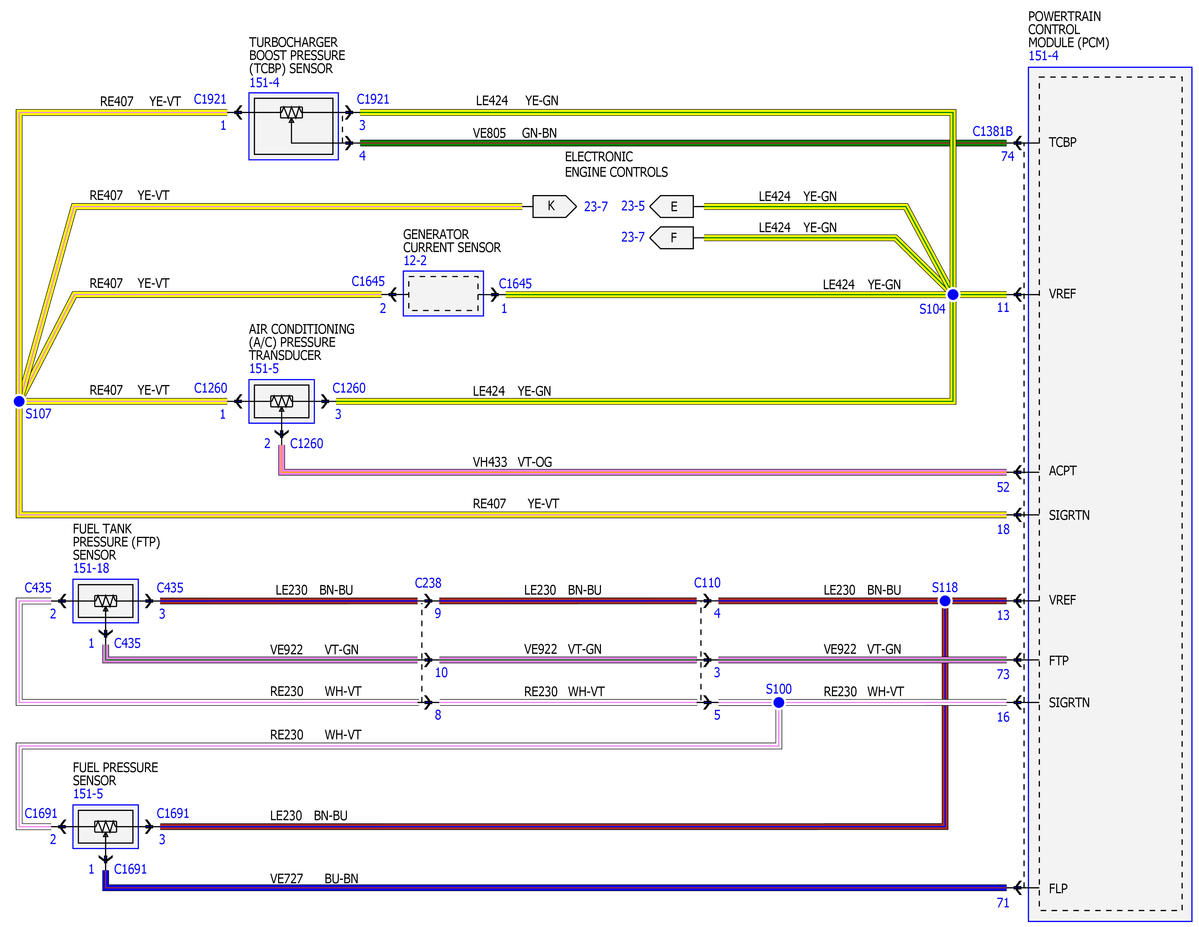

Fig 3: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (3 Of 14)

Courtesy of FORD MOTOR COMPANY

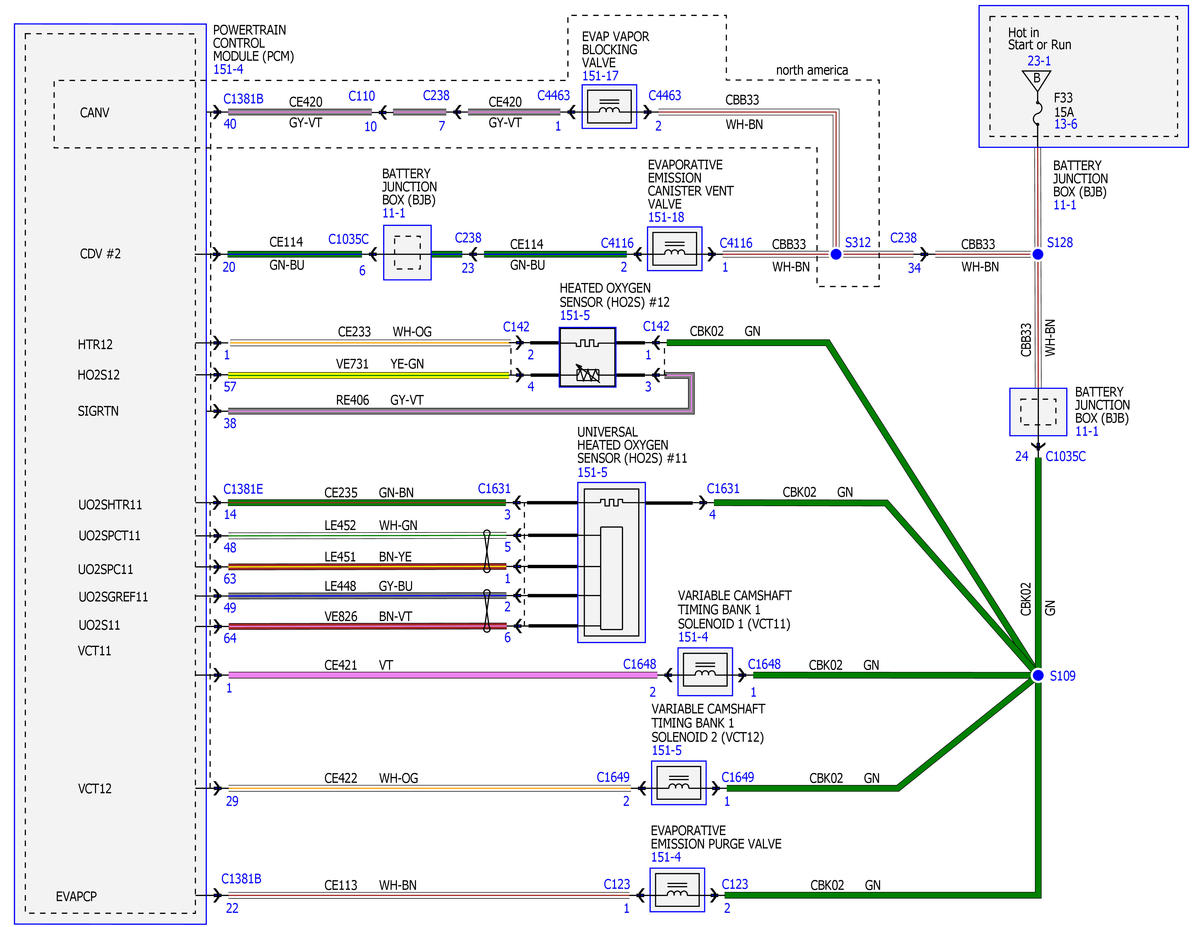

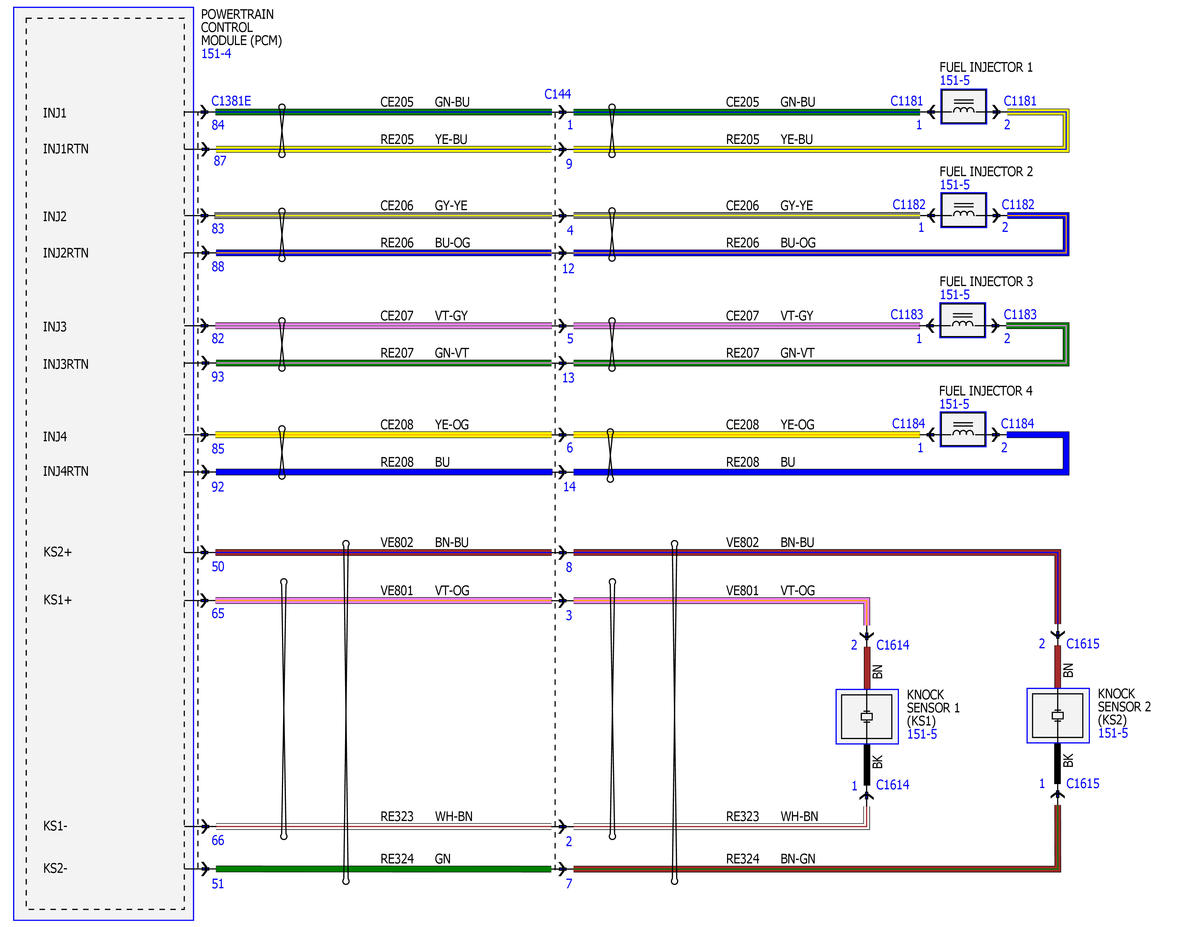

Fig 4: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (4 Of 14)

Courtesy of FORD MOTOR COMPANY

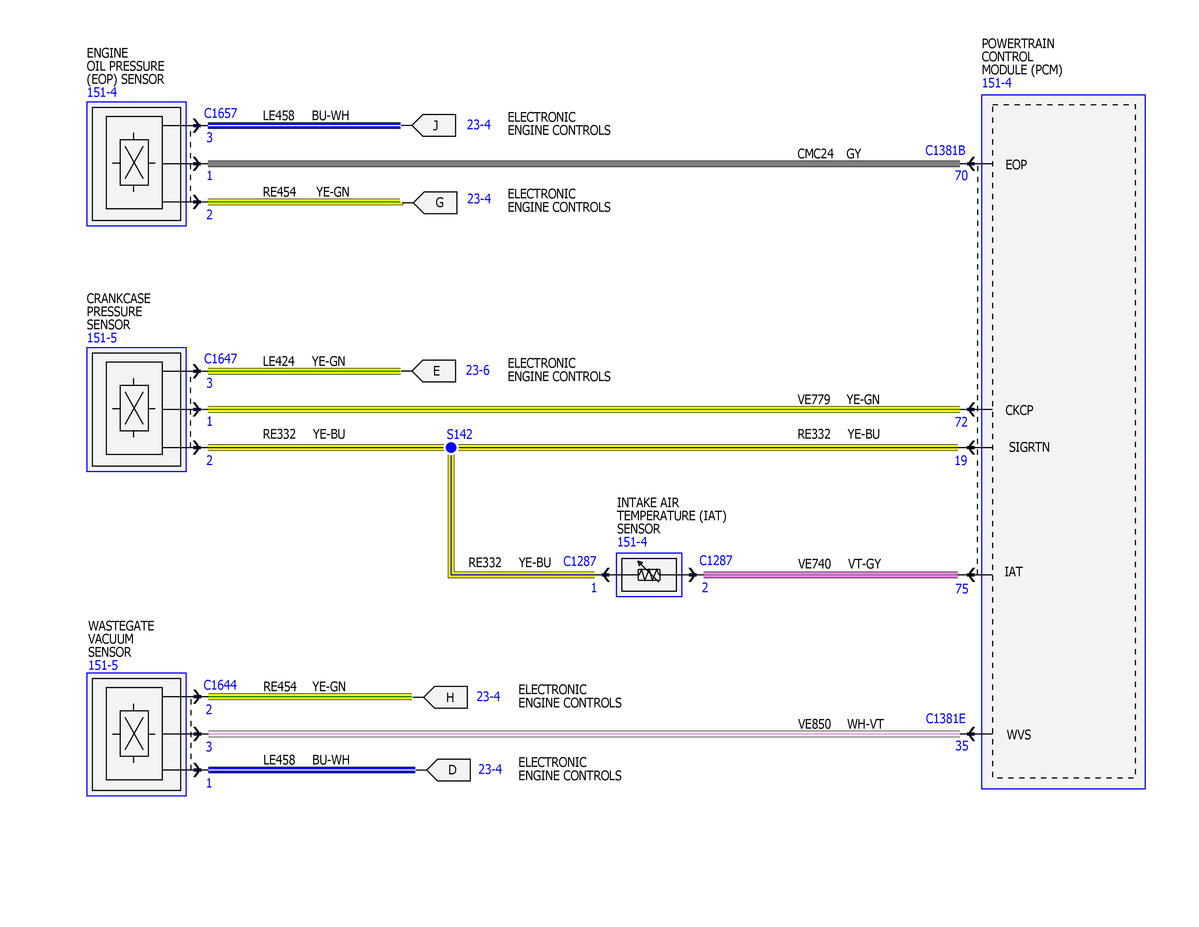

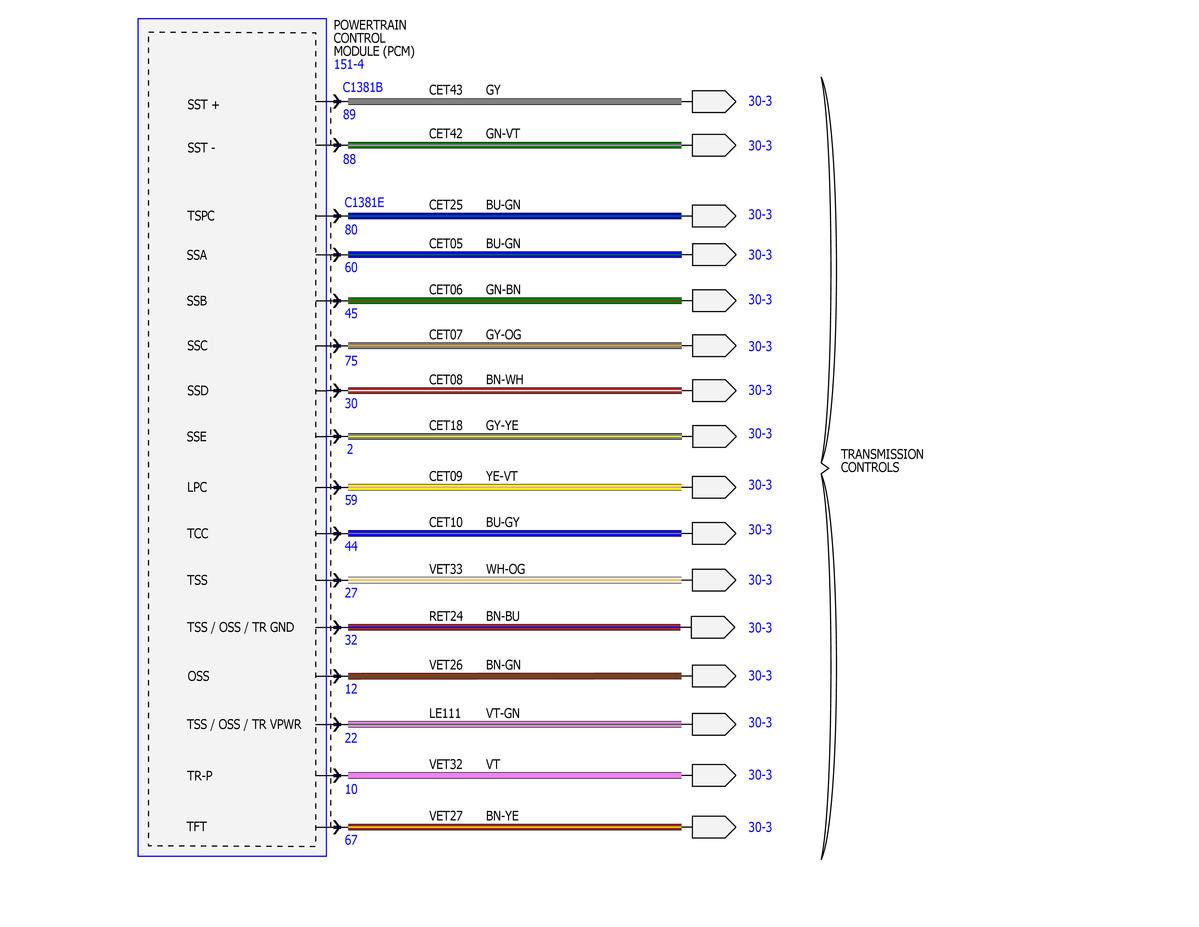

Fig 5: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (5 Of 14)

Courtesy of FORD MOTOR COMPANY

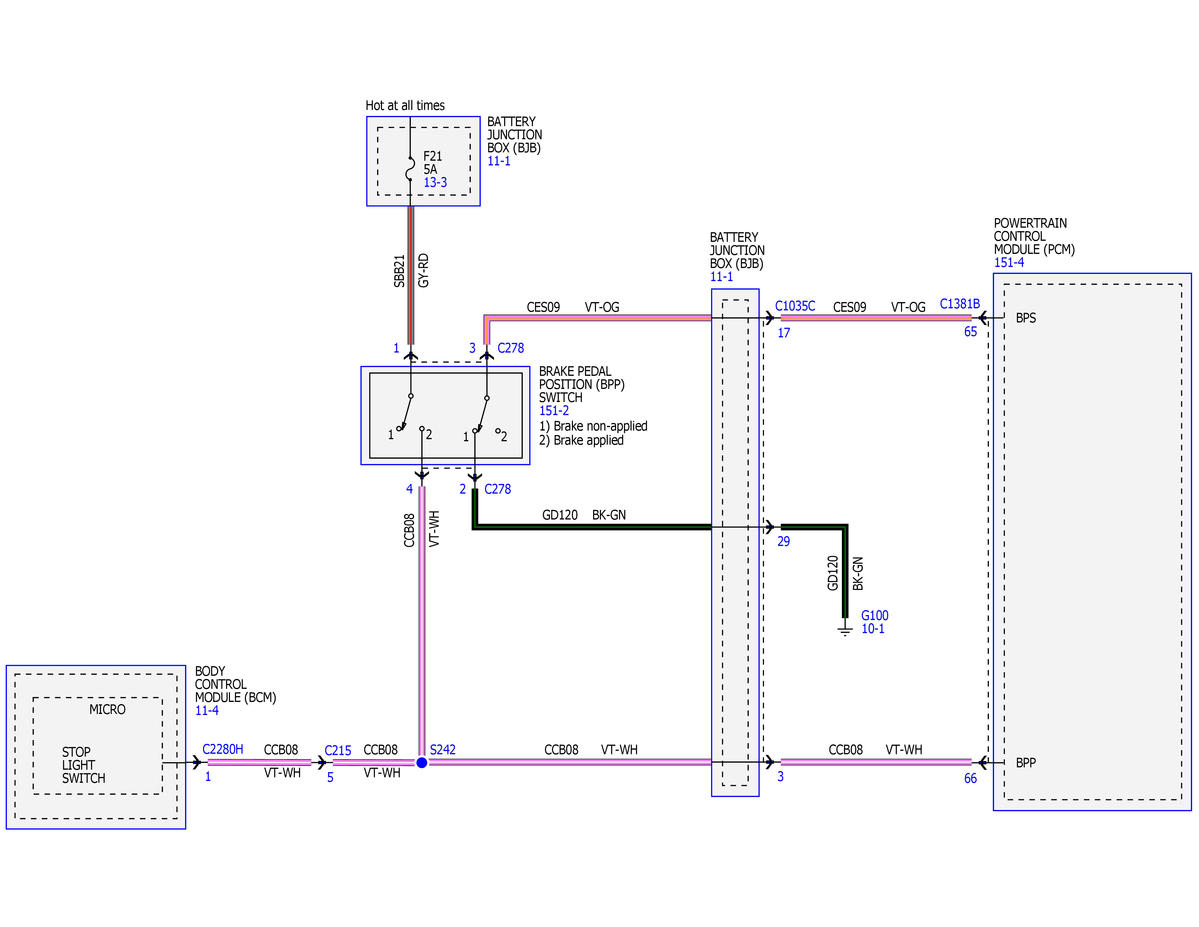

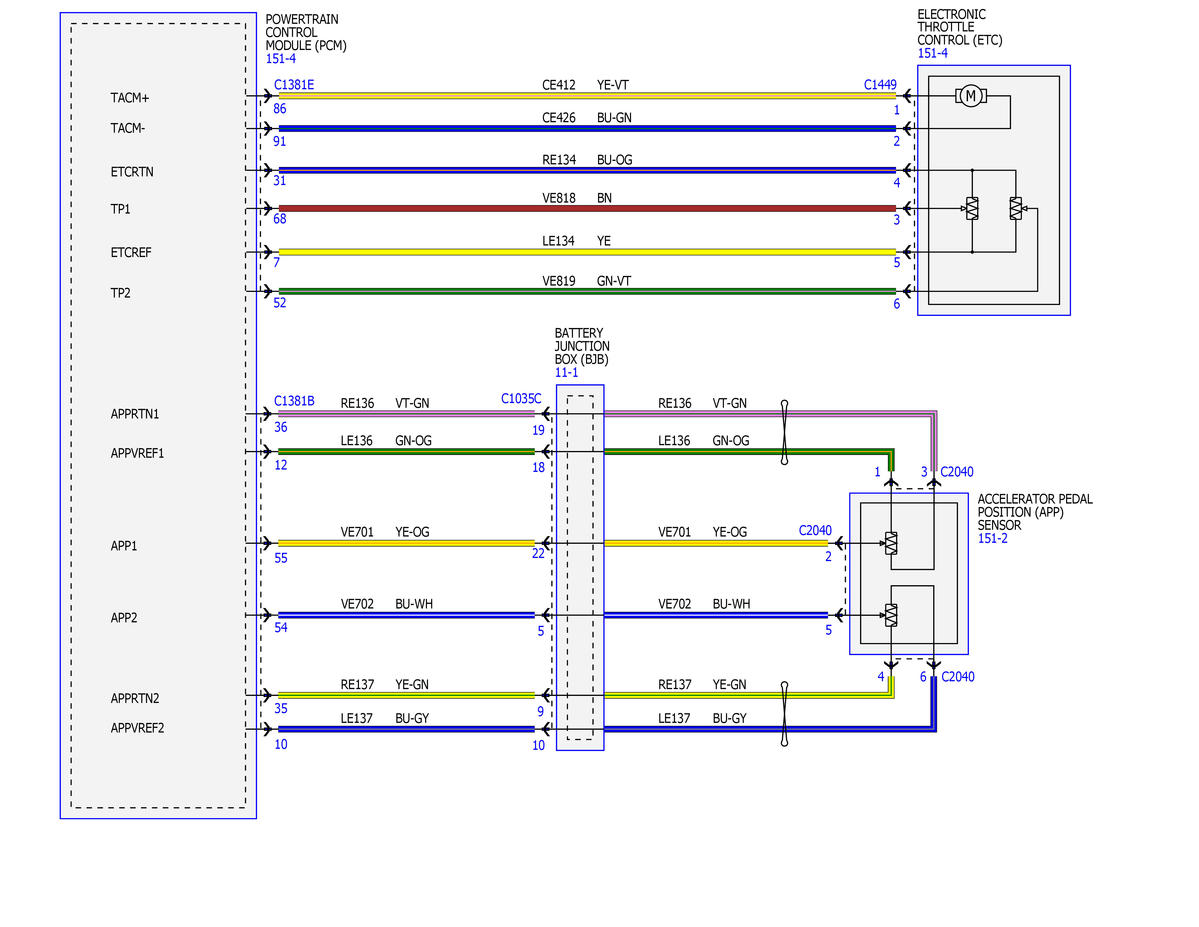

Fig 6: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (6 Of 14)

Courtesy of FORD MOTOR COMPANY

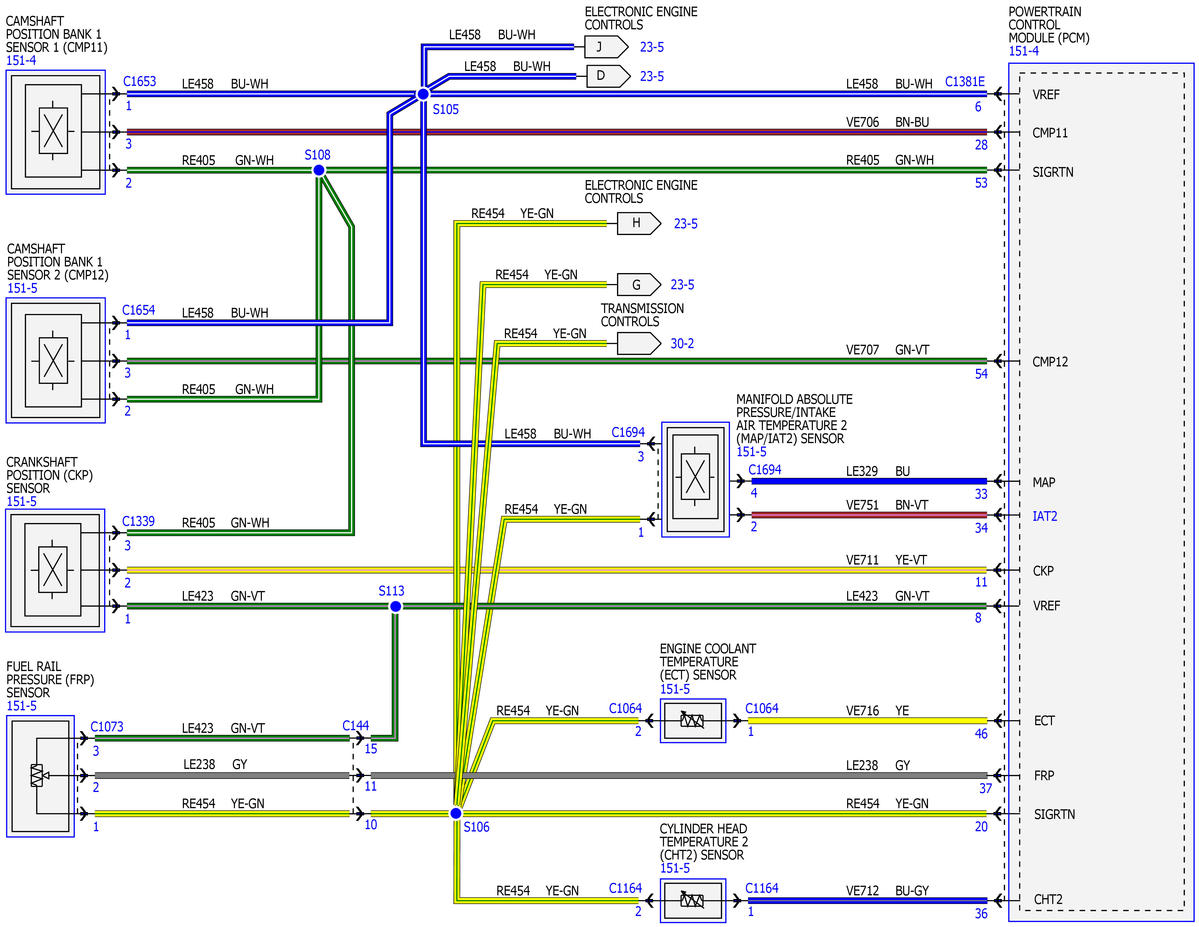

Fig 7: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (7 Of 14)

Courtesy of FORD MOTOR COMPANY

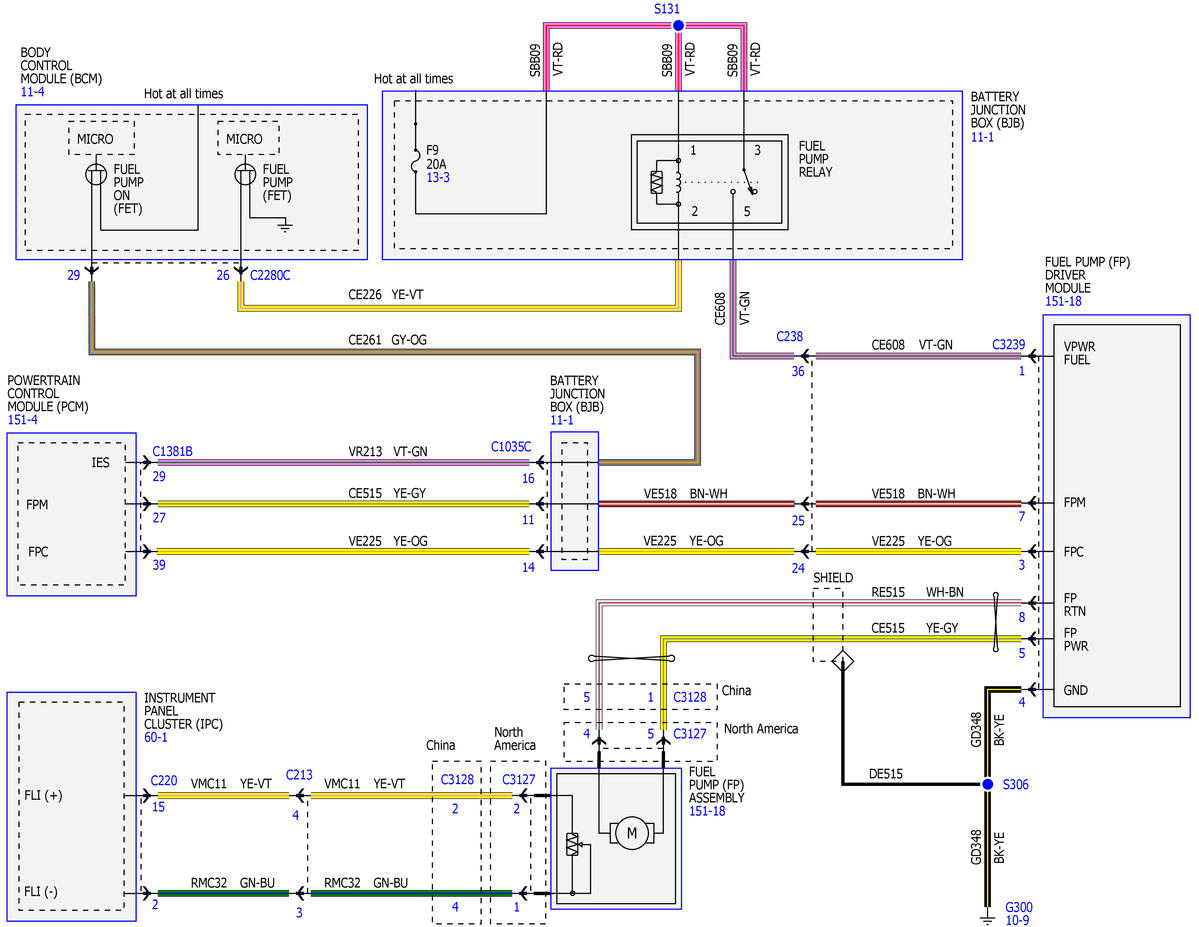

Fig 8: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (8 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (9 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (10 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (11 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (12 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (13 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (14 Of 14)

Courtesy of FORD MOTOR COMPANY
