Turbine Shaft Speed (TSS) Sensor: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

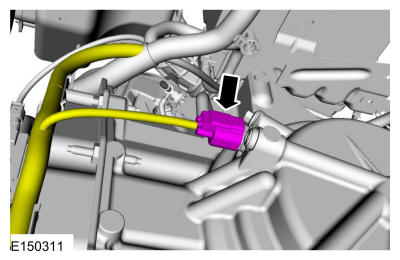

2. Disconnect the TSS sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

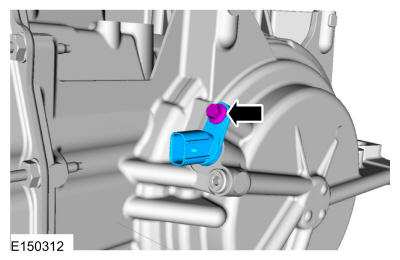

3. Remove the TSS sensor bolt and the TSS sensor.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
