Transmission Internal Wiring Harness Frame: Removal

  1. Remove the main control cover. Refer to: Main Control Cover  .
  2. Disconnect the TR sensor electrical connector.
    GFD260947Courtesy of FORD MOTOR COMPANY
  3. Disconnect the OSS sensor electrical connector.
    GFD260955Courtesy of FORD MOTOR COMPANY
  4. Remove the main control-to-cover seal.
    GFD260956Courtesy of FORD MOTOR COMPANY
  5. NOTE: Be careful not to bend or twist the transmission internal wiring harness frame or the solenoid terminals when removing the transmission internal wiring harness frame or damage can occur.

    Remove the transmission internal wiring harness frame screws and the transmission internal wiring harness frame from the solenoids by lifting it straight up evenly.

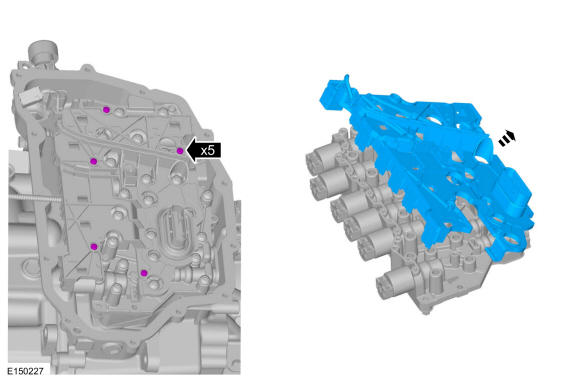

GFD260996Courtesy of FORD MOTOR COMPANY
