Transmission Internal Wiring Harness Frame: Installation

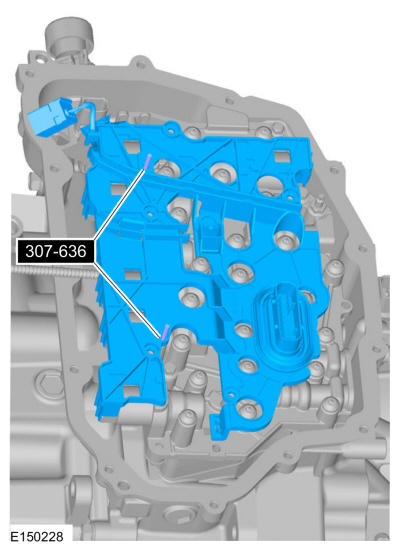

  1. Install the special tools in the solenoid body to align the transmission internal wiring harness frame during installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.
    GFD260997Courtesy of FORD MOTOR COMPANY

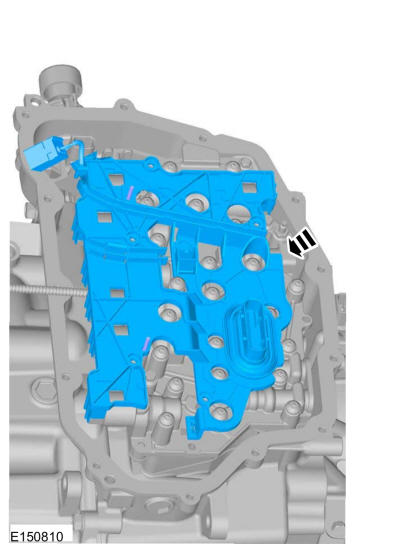

  2. Position the transmission internal wiring harness frame on the special tools and carefully install the transmission internal wiring harness frame by pushing straight down into the solenoids.
    GFD260998Courtesy of FORD MOTOR COMPANY

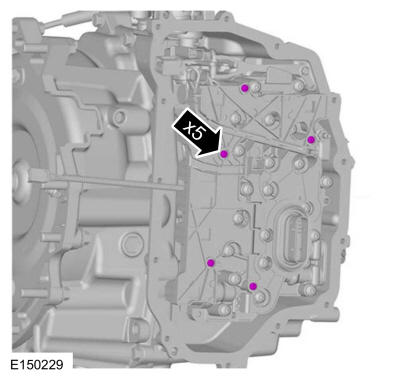

  3. Install the transmission internal wiring harness frame screws.

    Torque

    : 31 lb.in (3.5 Nm)

    GFD260999Courtesy of FORD MOTOR COMPANY
  4. Connect the OSS sensor electrical connector.
    GFD260955Courtesy of FORD MOTOR COMPANY
  5. Connect the TR sensor electrical connector.
    GFD260947Courtesy of FORD MOTOR COMPANY
  6. Install the main control-to-cover seal.
    GFD260956Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. Refer to: Main Control Cover  .
