Home >> Lincoln >> 2018 >> MKZ Select, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> AUTOMATIC TRANSMISSION - 6-SPEED AUTOMATIC TRANSMISSION - 6F35 (EXCEPT HYBRID) (2 of 2) >> Removal And Installation >> Roll Restrictor RH >> Removal

Roll Restrictor RH: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the retainers and the engine front undershield.
    GFD260985Courtesy of FORD MOTOR COMPANY
  3. Remove the retainers and the engine undershield.
    GFD260986Courtesy of FORD MOTOR COMPANY

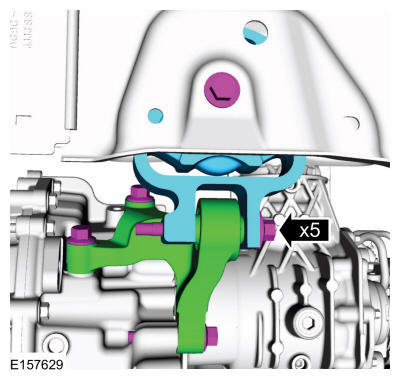

  4. Remove the bolts, remove the roll restrictor and the bracket.
GFD260987Courtesy of FORD MOTOR COMPANY
