Roll Restrictor RH: Installation

Install the roll restrictor and the roll restrictor bracket and tighten the bolts in the sequence shown.
Torque

:1: 92 lb.ft (125 Nm) 2: 92 lb.ft (125 Nm) 3: 92 lb.ft (125 Nm) 4: 85 lb.ft (115 Nm) 5: 111 lb.ft (150 Nm)

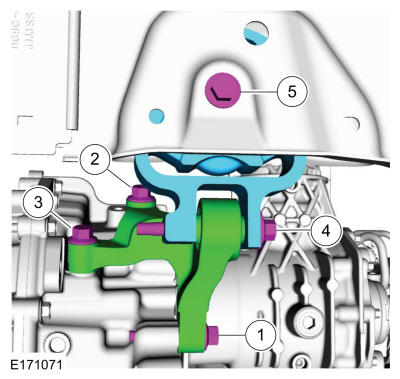

Fig 1: RH Roll Restrictor Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.

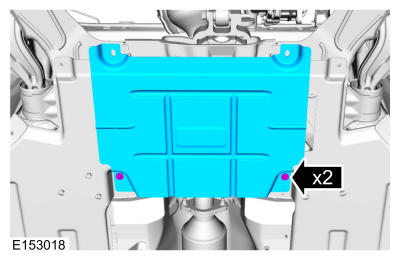

Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

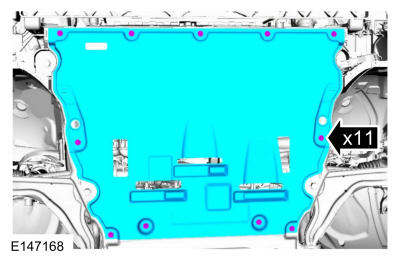

Install the engine front undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
