Main Control Cover: Installation

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

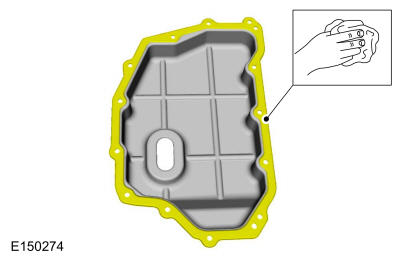

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY

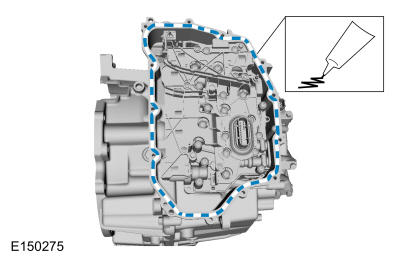

Apply silicone to the main control sealing surface of the transmission case.
Material

: Motorcraft® Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR COMPANY
NOTE: Install the stud bolts in the locations noted during disassembly.

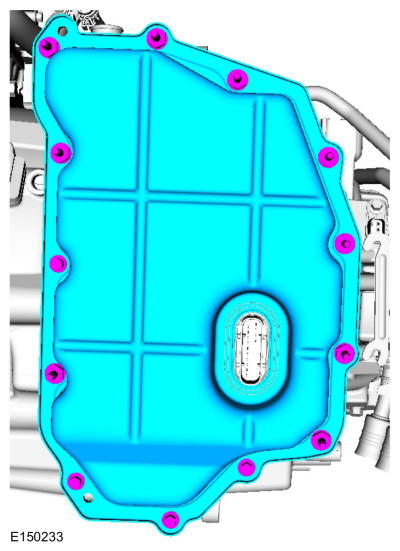

Install the main control cover, the bolts and the stud bolts.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

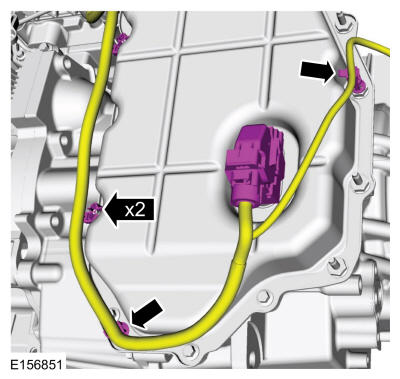

Connect the transmission electrical connector and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

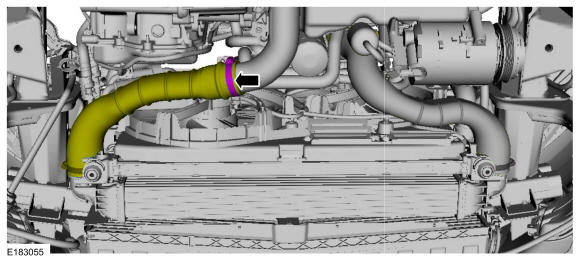

Install the CAC tube.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

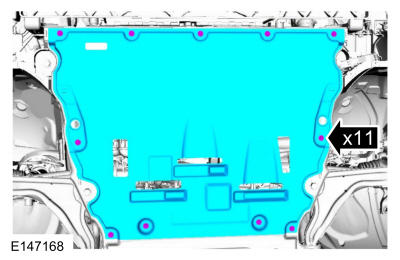

Install the front engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

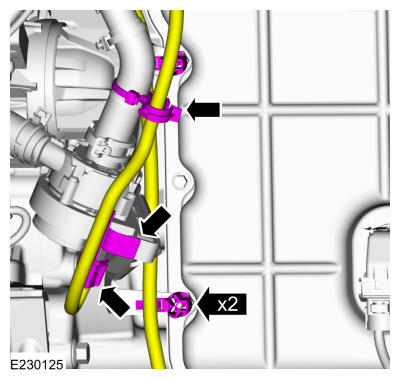

Connect the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

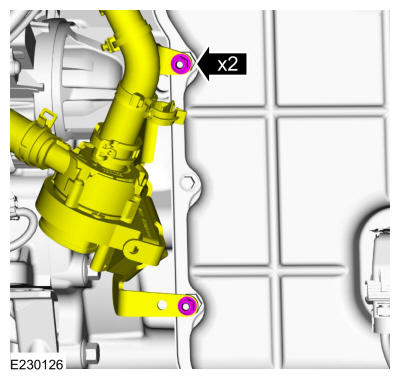

Install the cabin heater coolant pump and the nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

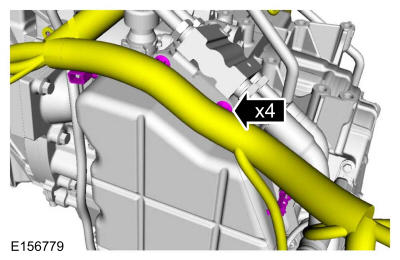

Attach the electrical harness retainers.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner assembly. Refer to: Air Cleaner .
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
