Halfshaft Seal RH - FWD: Installation

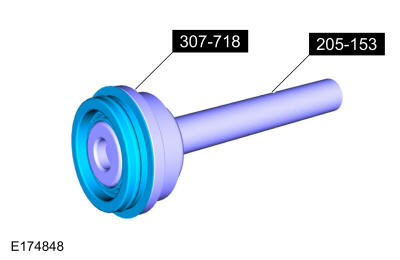

  1. Install a new halfshaft seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
    GFD260980Courtesy of FORD MOTOR COMPANY

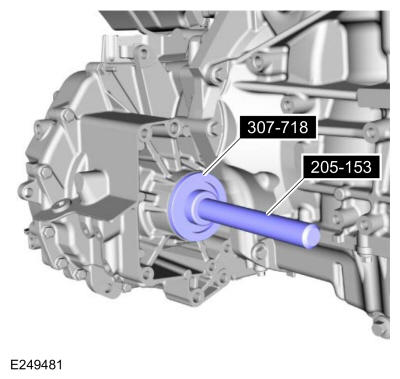

  2. Using the special tools, install the RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
    GFD260981Courtesy of FORD MOTOR COMPANY
  3. Install the RH halfshaft. Refer to: Front Halfshaft RH . Refer to: Front Halfshaft RH .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check  .
