Halfshaft Seal LH: Removal

  1. Remove the LH halfshaft. Refer to Front Halfshaft LH .

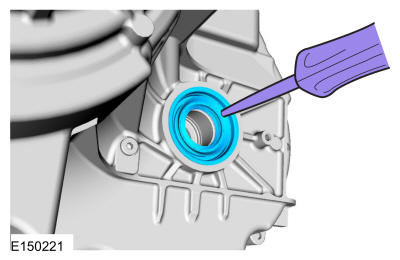

  2. Poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD260973Courtesy of FORD MOTOR COMPANY

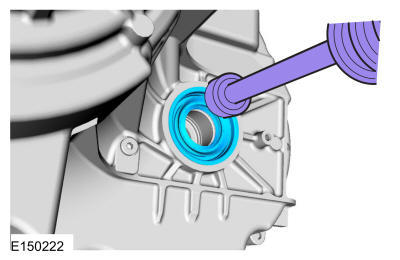

  3. Using a dent puller, remove the halfshaft seal. Use the General Equipment: Puller
GFD260974Courtesy of FORD MOTOR COMPANY
