Halfshaft Seal LH: Installation

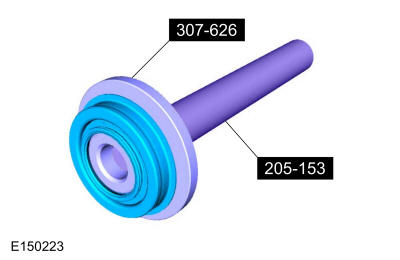

  1. Install a new halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.
    GFD260975Courtesy of FORD MOTOR COMPANY

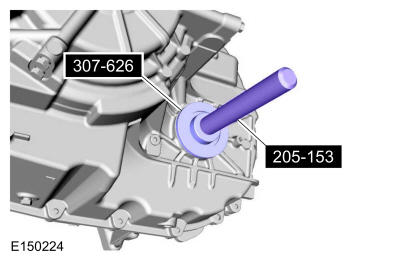

  2. Using the special tool, install the LH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.
    GFD260976Courtesy of FORD MOTOR COMPANY
  3. Install the LH halfshaft. Refer to: Front Halfshaft LH .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check  .
