Wheel Bearing and Wheel Hub - AWD: Installation

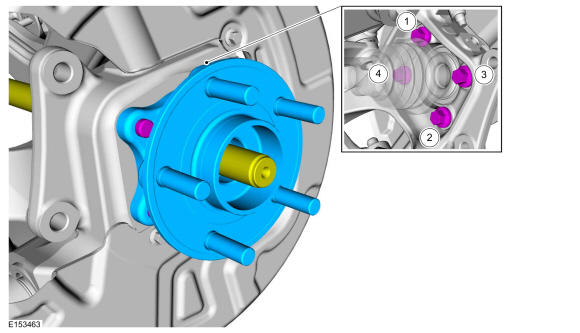

Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc .

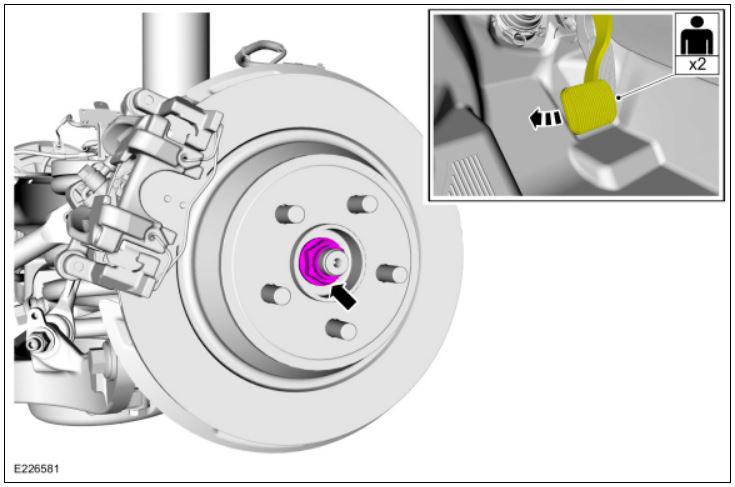

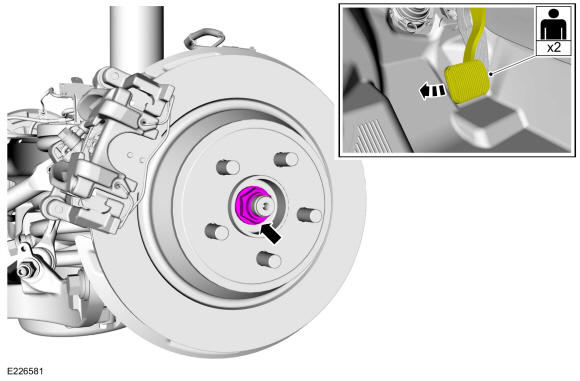

NOTE: Apply the brake to keep the halfshaft from rotating.

Install the new wheel hub nut.

Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
