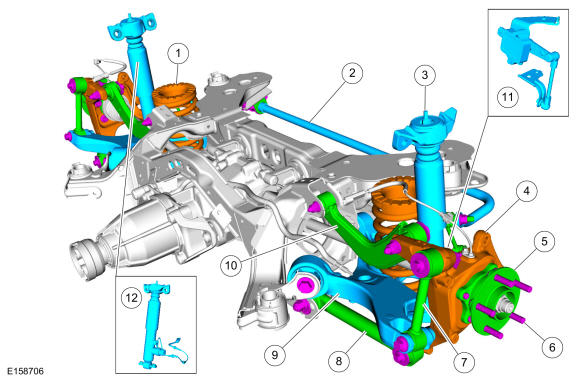

Rear Suspension - Component Location
NOTE:
AWD suspension shown, FWD similar.
| Item | Description |
|---|---|
| 1 | Coil spring |
| 2 | Stabilizer and links |
| 3 | Shock absorber |
| 4 | Wheel knuckle |
| 5 | Wheel bearing and wheel hub assembly |
| 6 | Wheel studs |
| 7 | Lower arm vertical link |
| 8 | Toe link |
| 9 | Lower arm and bushing assembly |
| 10 | Upper arm |
| 11 | Suspension height sensor (If equipped with Dynamic Suspension) |
| 12 | Dynamically controlled shock absorber (If equipped with Dynamic Suspension) |
