Fuel Tank Pressure Sensor and Tube - Hybrid Electric Vehicle (HEV): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the fuel tank. Refer to: FUEL TANK AND FUEL LINES - 2.0L DURATEC - HYBRID (103KW/140PS) (UA) .

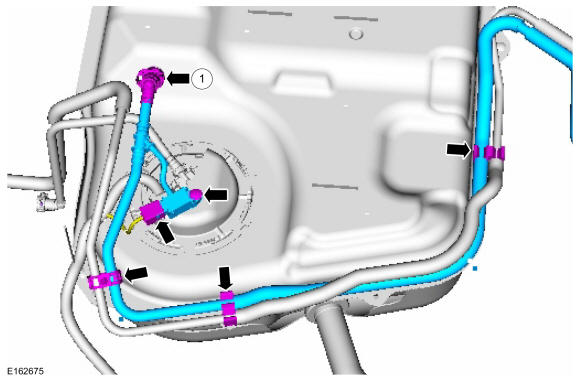

- Remove the fuel tank pressure sensor and tube.
- Disconnect the quick release coupling and disconnect the electrical connector. Refer to: Quick Release Coupling .
- Remove the fastener and detach the fuel tank pressure sensor and tube routing clips and remove the fuel tank pressure sensor and tube.
