Parking Brake Actuator Motor: Removal
WARNING: This page is about a different car, the 2017 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

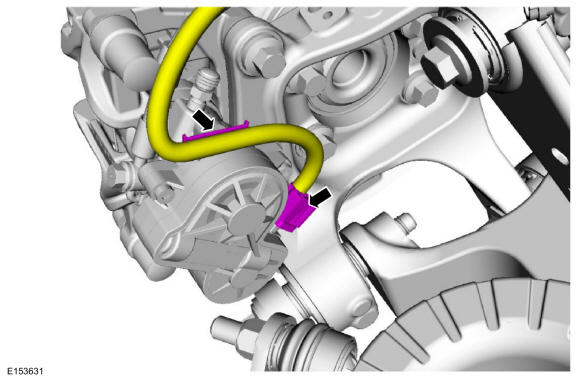

- Disconnect the electrical connector and detach the wiring retainer.
-
NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

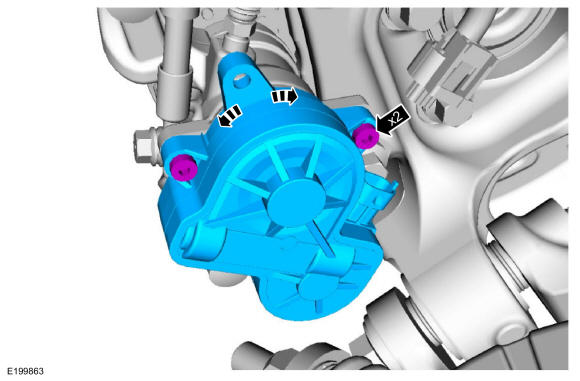

Remove the bolts and using a twisting motion, remove the parking brake actuator motor.
Torque: 71 lb.in (8 Nm)

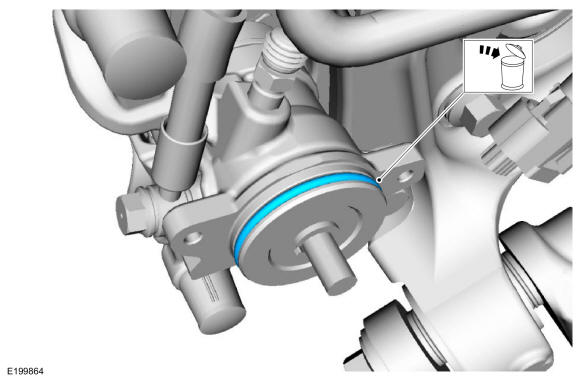

- Remove and discard the O-ring.

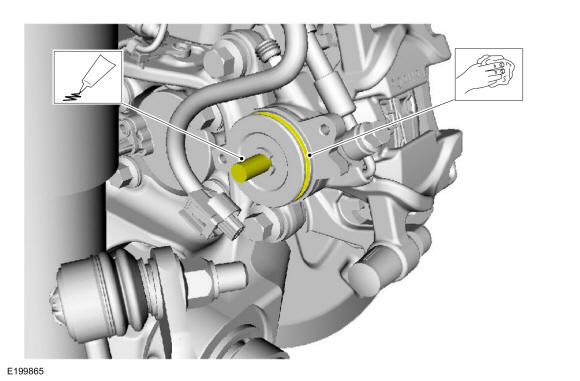

- Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking kit.
