Fuel Tank - FWD: Removal
WARNING: This page is about a different car, the 2016 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.
Drain the fuel tank. Refer to: Fuel Tank Draining .
- 7.
Remove the exhaust. Refer to: Muffler and Tailpipe .

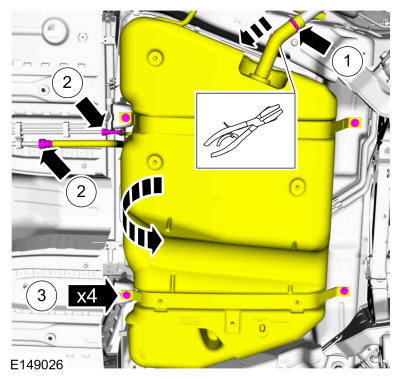

- 11.NOTE: Do not remove the hose clamp at the fuel tank filler pipe hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.
Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings . Use the General Equipment: Hose Clamp(s) Use the General Equipment: Powertrain Jack
Torque:
1: 35 lb.in (4 Nm)
2: 18 lb.ft (25 Nm)
- 12.

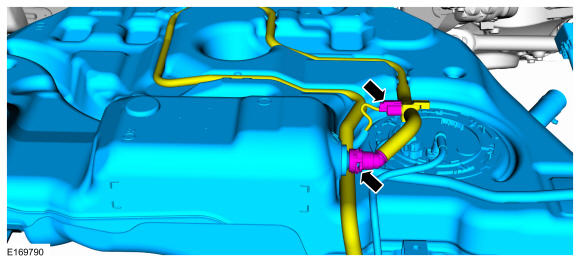

Lower the fuel tank far enough to disconnect the electrical connector and vapor lines. Remove the fuel tank. Refer to: Quick Release Coupling . Use the General Equipment: Powertrain Jack
