Fuel Lines: Removal
WARNING: This page is about a different car, the 2016 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.
Remove the Fuel Tank. Refer to: Fuel Tank - FWD .
- 5.

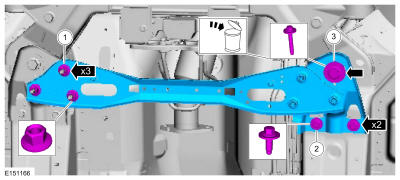

- 1.
Torque: 33 lb.ft (45 Nm)
- 2.
Torque: 44 lb.ft (60 Nm)
- 3.
Torque:Stage 1: 76 lb.ft (103 Nm)
Stage 2: 270 °
- 1.
- 7.
Remove the Air Cleaner. Refer to: Air Cleaner .

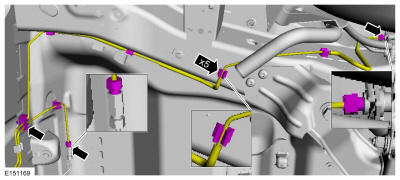

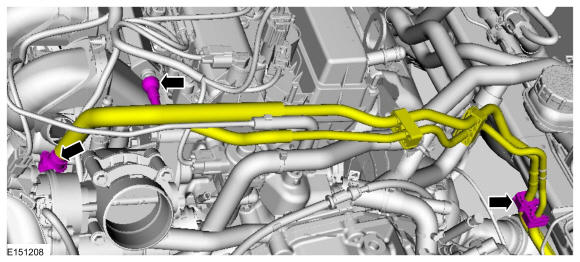

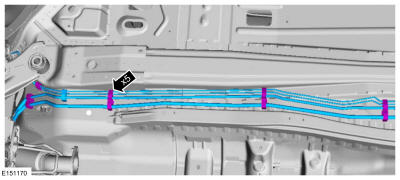

- 8.NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.
Refer to: Spring Lock Couplings . Refer to: Quick Release Coupling .
