Parking Brake Switch: Removal

WARNING: This page is about a different car, the 2016 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

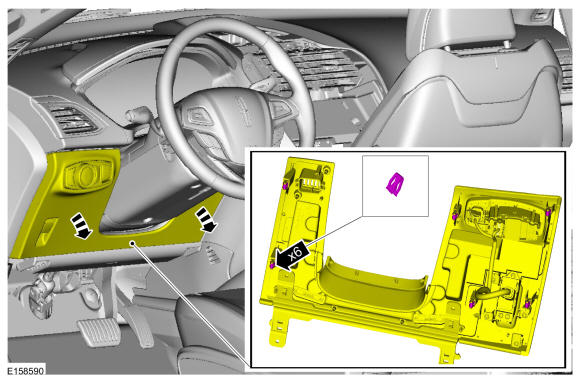

Detach the clips and position the steering column cover aside.

Courtesy of FORD MOTOR COMPANY

3.

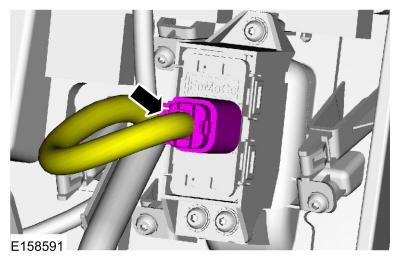

Disconnect the parking brake switch electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

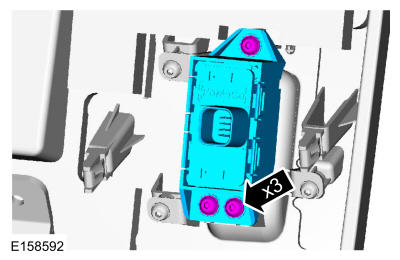

Remove the screws and parking brake switch.

Courtesy of FORD MOTOR COMPANY
