Battery Disconnect and Connect - Vehicles With Single Battery - Hybrid Electric Vehicle (HEV)
WARNING: This page is about a different car, the 2016 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 3.NOTE: When disconnecting the battery cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

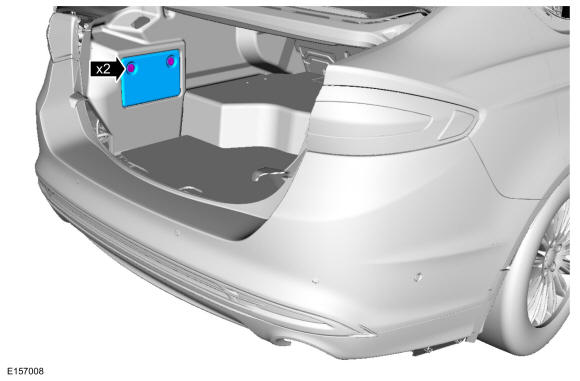

- 1.
Torque: 44 lb.in (5 Nm)

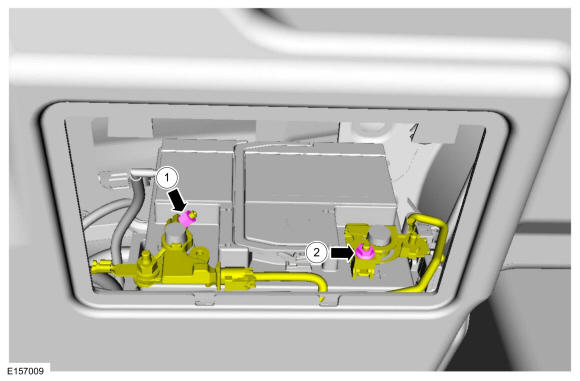

- 2.
Torque: 80 lb.in (9 Nm)
- 1.
Connect
