Fuel System Pressure Release

WARNING: This page is about a different car, the 2016 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

Pressure release

1.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

2.

Remove the left lower C-Pillar trim. Refer to: C-Pillar Lower Trim Panel .

3.

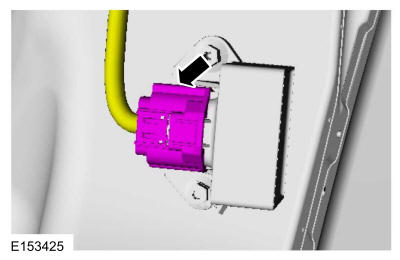

GFD106435

Courtesy of FORD MOTOR COMPANY

4.

NOTE: On vehicles equipped with Gasoline Turbocharged Direct Injection (GTDI), running the engine with the FPDM disconnected will remove most of the pressure from both the low and high pressure sides of the system.

Start the engine and allow it to idle until the engine stalls.

5.

Turn the ignition switch to the off position.

6.

When the fuel system service is complete, reconnect the FPDM electrical connector.

GFD106435

Courtesy of FORD MOTOR COMPANY

7.

Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
