Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2019 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
  2. NOTE: RH outer parking aid sensor shown, all others similar.

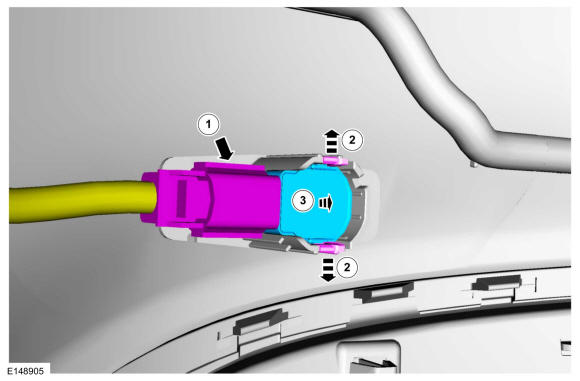

    Remove the rear parking aid sensor.

    1. Disconnect the rear parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the rear parking aid sensor from the bracket.

GFD379337Courtesy of FORD MOTOR COMPANY
