Front Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2019 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

All front parking aid sensors

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

    Outer front parking aid sensors

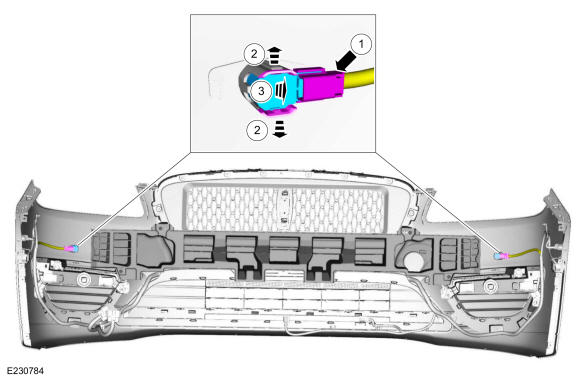

  2. Remove the outer front parking aid sensor.

    1. Disconnect the outer front parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the outer front parking aid sensor from the bracket.

    GFD379334Courtesy of FORD MOTOR COMPANY

    Inner front parking aid sensors

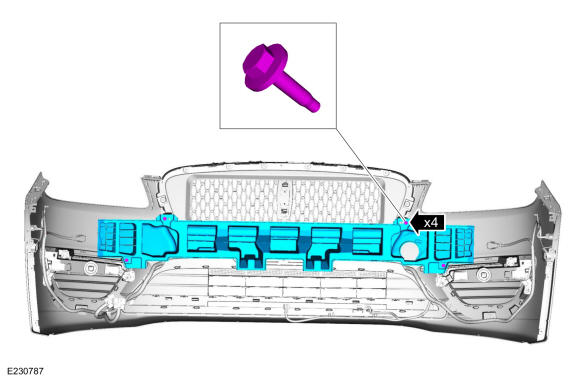

  3. Remove the screws and the front bumper cover reinforcement.
    GFD379335Courtesy of FORD MOTOR COMPANY

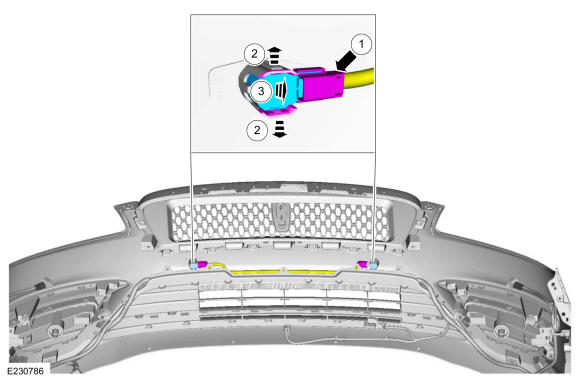

  4. Remove the inner front parking aid sensor.

    1. Disconnect the inner front parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the inner front parking aid sensor from the bracket.

GFD379336Courtesy of FORD MOTOR COMPANY
